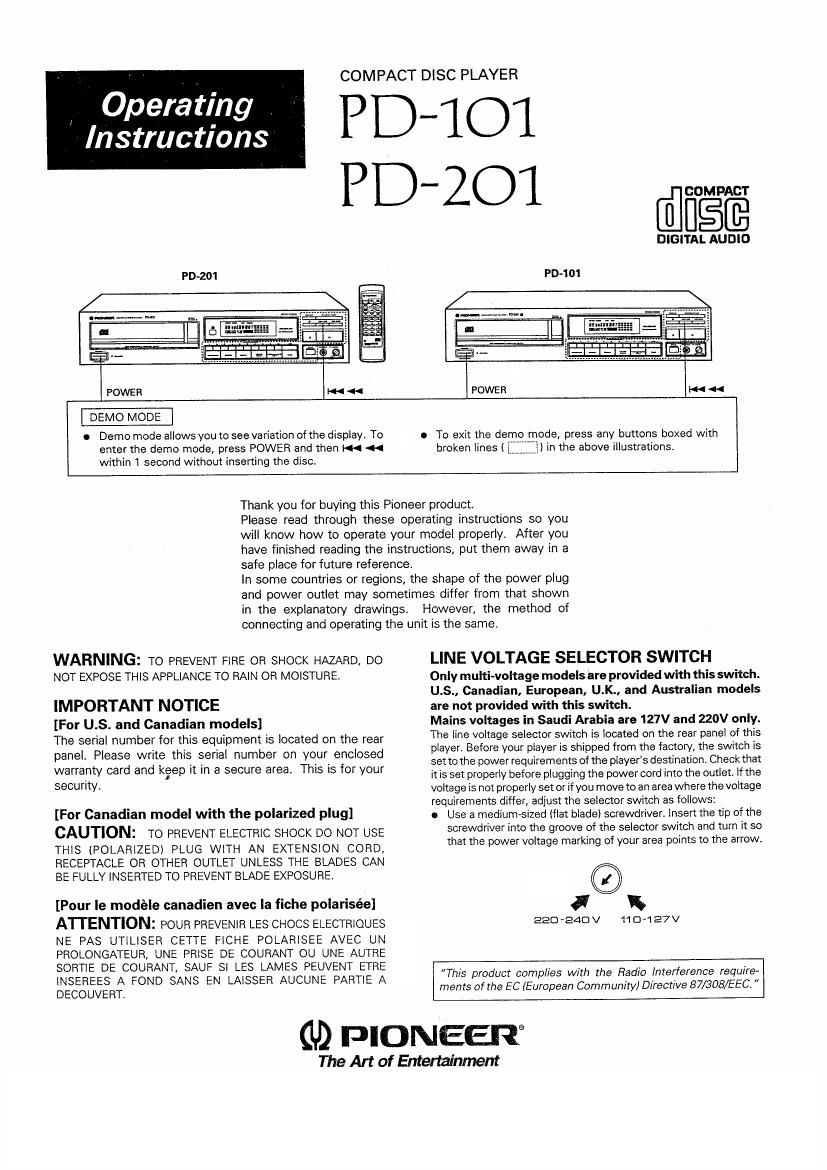

Pioneer PD 201 Owners Manual

Page 1

COMPACT DISC PLAYER

0 eratin _
Insptructiogs PD 101

PD-201

ID-201

POWER H4 «

COM PACT

USE}

DIGITAL AUDIO

P041 01

POWER K4 «

DEMO MODE

0 Demo mode allows you to see variation of the display, To
enter the demo mode. press POWER and then I44 «
within 1 second without inserting the disc.

0 To exit the de
broken lines I

ode, press any buttons boxed with
i in the above illustrations.

Thank you for buying this Pioneer product.

Please read through these operating instructions so you
will know how to operate your model properly. After you
have finished reading the instructions, put them away in a
safe place for future reference.

In some countries or regions, the shape of the power plug
and power outlet may sometimes differ from that shown

in the explanatory drawings.

However, the method of

connecting and operating the unit is the same.

WARNING: TO PREVENT FlRE OR SHOCK HAZARD, DO
NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

IMPORTANT NOTICE

[For U.S. and Canadian models]

The serial number for this equipment is located on the rear
panel. Please write this serial number on your enclosed
warranty card and keep it in a secure area. This is for your
security.

[For Canadian model with the polarized plug]

CAUTION: TO PREVENT ELECTRIC SHOCK DO NOT USE
THIs (POLARIZED) PLUG WITH AN EXTENSION CORD,
RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN
BE FULLY INSERTED To PREVENT BLADE EXPOSURE.

[Pour le modéle canadien avec la fiche polariséel

ATTENTION: POUR PREVENIR LES CHOCS ELECTRioUEs
NE PAS UTILISER CETTE FICHE POLARISEE AVEC UN
PROLONGATEUR, UNE PRISE DE COUHANT ou UNE AUTRE
SORTIE DE COURANT, SAUF SI LEs LAMEs PEUVENT ETRE
lNSEFlEES A FOND SANS EN LAISSER AUCUNE PARTIE A
DECOUVERT.

LINE VOLTAGE SELECTOR SWITCH

Only mum-voltage models are provided with this switch.
U.S., Canadian, European, U,K., and Australian models
are not provided with this switch.
Mains voltages in Saudi Arabia are 127V and 220V only.
The line voltage selector switch is located on the rear panel of this
player. Before your player is shipped from the factory, the switch is
set to the power requirements of the players destination. Checkthat
it is set properly before plugging the power cord into the outlet. If the
voltage is not properly set or if you move to an area where the voltage
requirements differ, adjust the selector switch as follows:
0 Use a medium~sized (flat blade) screwdriver. Insert the tip of the
screwdriver into the groove of the selector switch and turn it so
that the power voltage marking of your area points to the arrow.

l

220'24OV 11D-127V

This product complies with the Radio Interference require»
ments of the EC (European Community) Directive 87/308/EEC. "

GD DIONEEIT

The Art of Entertainment

Page 2

IMPORTANT 1

Tholightning flash witharrowhead, withinan equilateral
triangle. is intended to alert the user to the presence of
uninsulated dangerous voltage' within the products
enclosure that may be or sutticient magnitude to
constitute a risk of electric shock to persons.

CAUTION

, RISK or ELECTRIC SHOCK;
., DO NOT OPEN . '

CAUTION:

TO FREVENTTHE RISK or ELECTRIC SHOCK DO NOT
REMOVE COVER (on BACK). NO USER-SERVICEABLE
PARTS INSIDE. REFER SERVICING T0 QUALIFIED
SERVICE PERSONNEL.

The exclamation point within an equilateral triangle is
intended to alert the user to the presence oI Important
operating andmaintenence (servicing) instructions inthe
literature accompanying the appliance.

IMPORTANT 2

If the apparatus 15 fitted wnh AC mains power outletlsl.
see REAR PANEL FAClLlTlEsrorconvenientconnection
of additional Hl-Fl componentlsl. Make all connections
totheAC oudetlsland the signal terminals first. Connect
the plug to the wall socket last (make sure that the
power swrtch is om

FOR USE IN THE UNITED
KINGDOM

The wires in Ihis mains lead are coloured in
accordance with the following code:
Blue: Neutral
Brown: Live
As the colours of the wires in the malns lead or thrs
apparatus may not correspond with the coloured making
identifying the terminals in your plug proceed as tollows;

The wire which is coloured blue must be connected to
the terminal which is marked with the letter N or cola
outed black.

The wire which is coloured brown must be connected to
the terminal which is marked with the letter L or coloured
red

Donotconnecteitherwiretothe earth terminaloiathree
pin plug.

Equipment sold in the U.K. is not supplied with a
power plug. .

READ INSTRUCTIONS - All the safety and operating
instructions should be read before the appliance is
operated.

RETAIN INSTRUCTIONS - The safety and operating
instructions should be retained for future
reference.

HEED WARNINGeAIlwarnlngs on the appliance and in
the operating Instructions should be adhered to.

FOLLOW INST RUC'HONS - All operating and use in-
structions should be followed.

WATER AND MOISTURE rThe appliance should not
be used near water - Icr example. near a bathtub.
washbowl. kmchen sink, laundry tub. in a wet base
ment. or near a swimming pool, etc.

LOCATION - The appliance should be installed in a
stable location.

WALL DR CEILING MOUNTING - The appliance
should not be mounted to a wall or celllng.

VENTILATION » The appliance should be situated so
that its location or position does not interfere with
its proper ventilation For example, the appliance
should not be situated on a bed, sola. rug, or similar
surfaoe that may block the Ventilation openings; or,
placed in a built-in insTallation, such as a bookcase
or cabl net that may impede the flow or air through
the ventilation openings.

HEAT - The appllance should be situated away from
heat sources such as radiators, heat registers,
stoves, or other appliances lincluding ampmiersl
that produce heat.

POWER SOURCES - The appliance should be Con-
nected to a power supply only of the type de
scribed in the operating instructions or as marked
on tho appliance. x

POWER-CORD PROTECTION - Power-supply cords
should be routed so that they are not likely to be
walked on or plnched cy items placed upon or
against them. Pay particular attention to cords at
plugs, convenience receptacles. and the point
where they exit from the appliance.

POLARIZATION _ If your purchased product is pro
Vided with a polarized power plug, please read the
following instructions. Tnls product is equipped
with a polarized alternating current line plug (a plug
having one blade wider than the other). This plug
will ht into the power outlet only one way, Thls IS a
safety feature. If you are unable to insert the plug
fully into the outlet. try reversing the plug. lf the
plug should still fail to lit, contact your electrician to
replace your obsolete outlet. Do not defeat the
sarety purpose or the polarized plug.

CLEANING ~ The appliance should be cleaned only
wrtn a polishing cloth or a sort dry cloth. Never
clean wtth furniture wax, henzlne. insecticides or
other volatile llquids since they may corrode the
cabinet.

SAFETY INSTRUCTIONS

POWER LINES -An outdoor antenna should be located
away from power lines

NONUSE PERIODS -The power cord of the appliance
should be unplugged from the outlet when left unr
used tora long period or time.

OBJECT AND LIQUID ENTRV - Care should be taken
so that obiects do not fall and liquids are not spilled
into the enclosure through openings.

DAMAGE REQUIRING SERVICE v The appliance

should be serviced by a Pioneer authorized service

center or qualified serwce personnel when:

The power~supply cord or the plug has been darn

aged,

Objects have lallen. or liquid has been spilled into

the appliance.

The appliance has been exposed to rain.

The appliance does not appear to operate normally

or exhibits a marked change in pencrmancs.

The appliance has been dropped or the enclosure

damaged.

SERVICING - The user should not attempt to service
the appliance beyond that described in the
operating instructions. All other servicing should
be referred to qualified service personnel.

0....

ELECTRIC
SERVICE
EQUIPMENT

'A
V

FIG. A

OUTDOOR ANTENNA GROUNDING - If an outside

antenna is connected to the antenna terminaL be
sure the antenna system is grounded so as to
provide some protection against voltage surges
and builtaup static charges.
In the U.S.A. section 810 of the National Electrical
Code, ANSI/NFPA 70. provides inIormatIon with
respect to proper grounding of the mast and
supporting structure. grounding of the leadin wire
to an antenna discharge unit, size oi grounding
conductors. location or antenna discharge unit,
connection to grounding electrodes. and
requirements Ior the grounding electrode. See Fig.
A.

CART - An appliance and cart combination should be
moved with care. Quick stops, excessive force, and
uneven surfaces may cause the appliance and cart
combination to overturn.

NEC - NATIONAL ELECTRIC CODE

ANTENNA

ANTENNA
DISCHARGE UNIT
INEC SECTION 810 - 20)

GROUNDING CONDUCTORS
(NEC SECTION 810 -2I)

GROUND CLAMPS

POWER SERVICE GROUNDING
ELECTRODE SVSTEM
INEC ART 250, PART H)

2
9>
En
