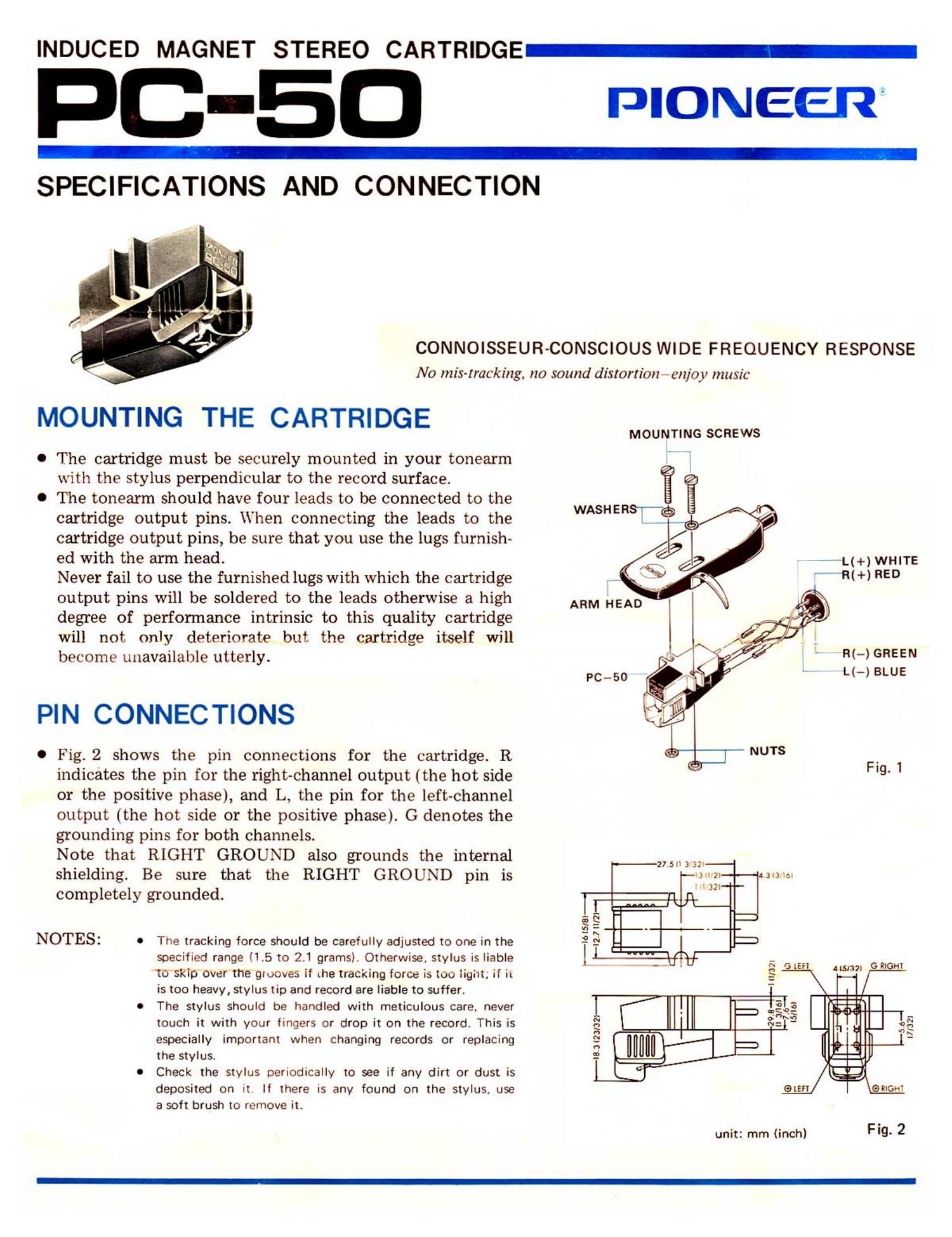

Page 1

INDUCED MAGNET STEREO CARTRIDGE

c-so PIONEER

SPECIFICATIONS AND CONNECTION

CONNOISSEUR-CONSCIOUS WIDE FREQUENCY RESPONSE

No nus-tracking, no sound distortion-enjoy music

MOUNTING THE CARTRIDGE

O The cartridge must be securely mounted in your tonearm
with the stylus perpendicular to the record surface.

0 The tonearm should have four leads to be connected to the
cartridge output pins. When connecting the leads to the
cartridge output pins, be sure that you use the lugs furnish-

MOUNTING SCREWS

ed with the arm head. -L(+) wmre
Never fail to use the furnished lugs with which the cartridge fl) '50
output pins will be soldered to the leads otherwise a high
degree of performance intrinsic to this quality cartridge
will not only deteriorate but the cartridge itself will
become unavailable utterly. H GREEN
L(-) BLUE
PIN CONNECTIONS
0 Fig. 2 shows the pin connections for the cartridge. R Fig 1

indicates the pin for the right-channel output (the hot side
or the positive phase), and L, the pin for the left-channel
output (the hot side or the positive phase). G denotes the
grounding pins for both channels.

Note that RIGHT GROUND also grounds the internal
shielding. Be sure that the RIGHT GROUND pin is
completely grounded.

27.5 ll 132'
'JJ'ZI
'iI.32)

.3 (3'IOI

l6 ISIBI
l2] /2

NOTES: 0 The tracking force should be carefully adjusted to one in the
specified range (1.5 to 2.1 grams). Otherwise, stylus is liable
To skip over the grooves if the tracking force is too light; if it
is too heavy, stylus tip and record are liable to suffer.

I'-

l
l
I

Iii/321

itfl\ 4:513?) /G_*LM

\

O The stylus should be handled with meticulous care, never ,qu "
touch it with y0ur fingers or drop it on the record. This is g 3:"9 Egg
especially important when changing records or replacing :3: I J:
the stylus. D J

0 Check the stylus periodically to see if any dirt or dust is
deposited on it. If there is any found on the stylus. use one" \m

a soft brush to remove it.

unit: mm (inch) FIQ- 2

Page 2

STYLUS REPLACEMENT

O The playing life of diamond stylus is approximately 1,200
to 1,500 hours. For record protection as well as for better
sound quality, replace the stylus before it is completely
worn out. To remove the stylus from the cartridge, hold
the cartridge unit With one hand and simply pull out the
stylus holder toward the stylus tip with the fingers of the
other hand. To mount a new stylus, reverse the above
procedures. For replacement, PN-50 is recommended.

Fig. 3

STYLUS GUARD

Fig. 4 shows a stylus Covered with stylus guard (plastic).
It is recommended to use the guard when mounting the
cartridge in the arm head (cartridge shell), for example.

SPECIFICATIONS

Type: Induced magnet type
Frequency Response: 10Hz to 25,000Hz
Channel Separation: Better than 25dB at 1,000Hz

Output Voltage: 3mV at 1,000Hz (Sam/sec. or 2 ips) /

Load Impedance: 50kS2 /

Stylus: 0.5m diamond (PN-SOI ,

Compliance: 12 x 10° cm/dyne at 100Hz (dynamic) Fig" 4
22 x 10'6 cm/dyne (static)

Tracking Force: 1.5 to 2.19.

Weight: 69 / 0.21 oz.

Mounting: Conforms to the EIA standards V2 inch (12.7mm)

mounting center.

NOTE: Specifications and the desagn Subject to possible modification wnthout
notice due to mnrovements.

-
PIONEER ELECTRONIC CORPORATION
1 5-5. 4-Chome. Ohmori-ncahu. Ohca-ku. Tokyo. Japan

PIONEER ELECTRONICS OF AMERICA
1555 East. Del Amo Blvd. Carson. Calif. 90748 0.8. A.

PIONEER ELECTRONIC (EUROPE) N. V.
Win-center. Meir- 21. 2000 Antwerp. Belgium

< 73HO2EO3B> PRINTED IN JAPAN
