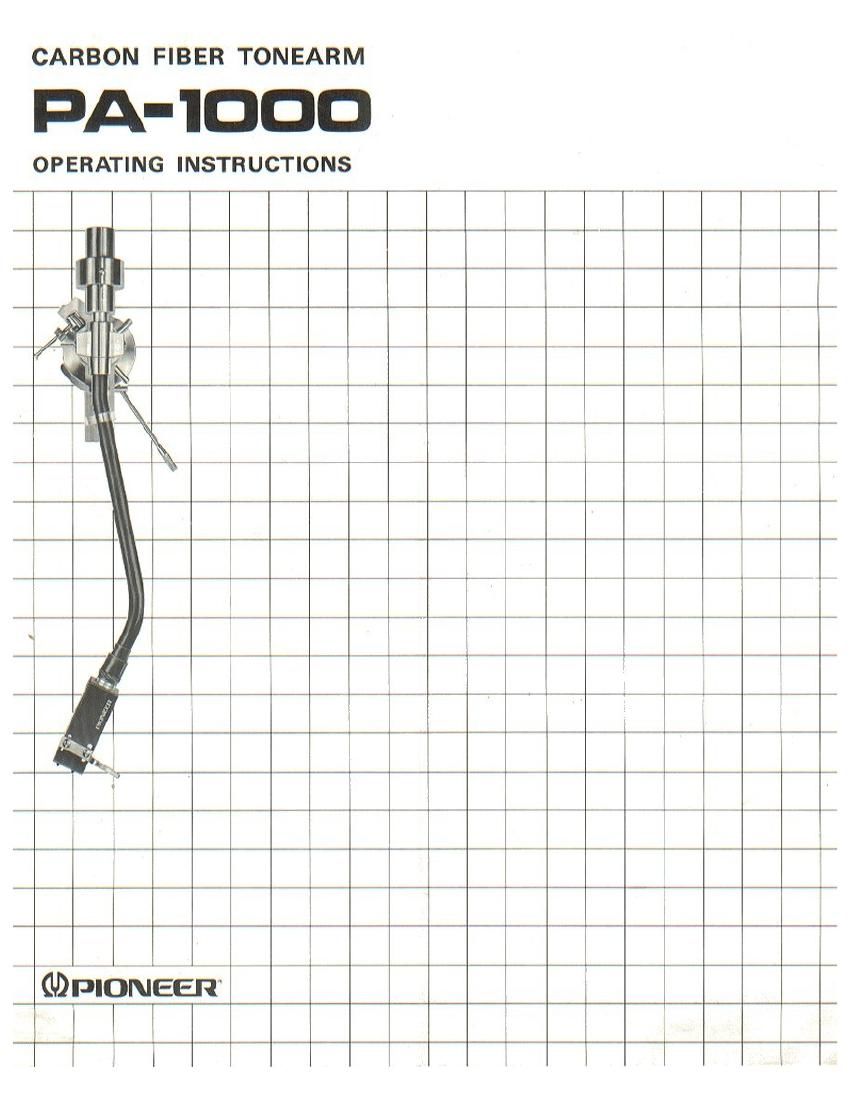

CARBON FIBER TONEARM
PA-IDDD
OPERATING INSTRUCTIONS
@moween
Page 2
FEATURES
0 The PA-looo employs a super-lightweight and high- Check the accessory parts before assembly
elasticity carbon fiber pipe arm which dramatically
reduces inertia moment and markedly enhances tracing.
I The PA-1000 also features a universal-type headshell .
joint which is compatible with ordinary headshells. _Fi"9°r h spacer
0 There is an angular contact bearing with an ultra- -Fingerlift
precision machined rotary shaft and bearing. The
critically reduced wear in both the horizontal and
vertical directions makes for high-sensitivity and high-
performance tracing.
0 Last but not least, the rod-type anti»skating mechanism
incorporates an angular contact bearing. This insures
that the horizontal sensitivity of the arm is in no way
impaired and also that a stable anti~skating effect is
obtained.
-Canridge mounting nuts
Arm stand
Main tonearrn unit Spanner
_=j
Weight Sorew-
Out ut cords
Pia? driver .3
Cartridge mounting Stand base
screws Headshell
-Washer (for Counterweight
mounting 3") (main weight.
Not (for weight sleeve)
mounting arm)
f N
Main weight Arm stand
Weight sleeve
Anti-skating rod (Al
Lrod (B)
Arm height
adjustment screws
Counter-
Mounting screws weight Stand base
Weight Washer
Finger um \ . 8:,
Finger lift spacer Locking collar
Headshell
Nuts
Output cord
Arm lifter
