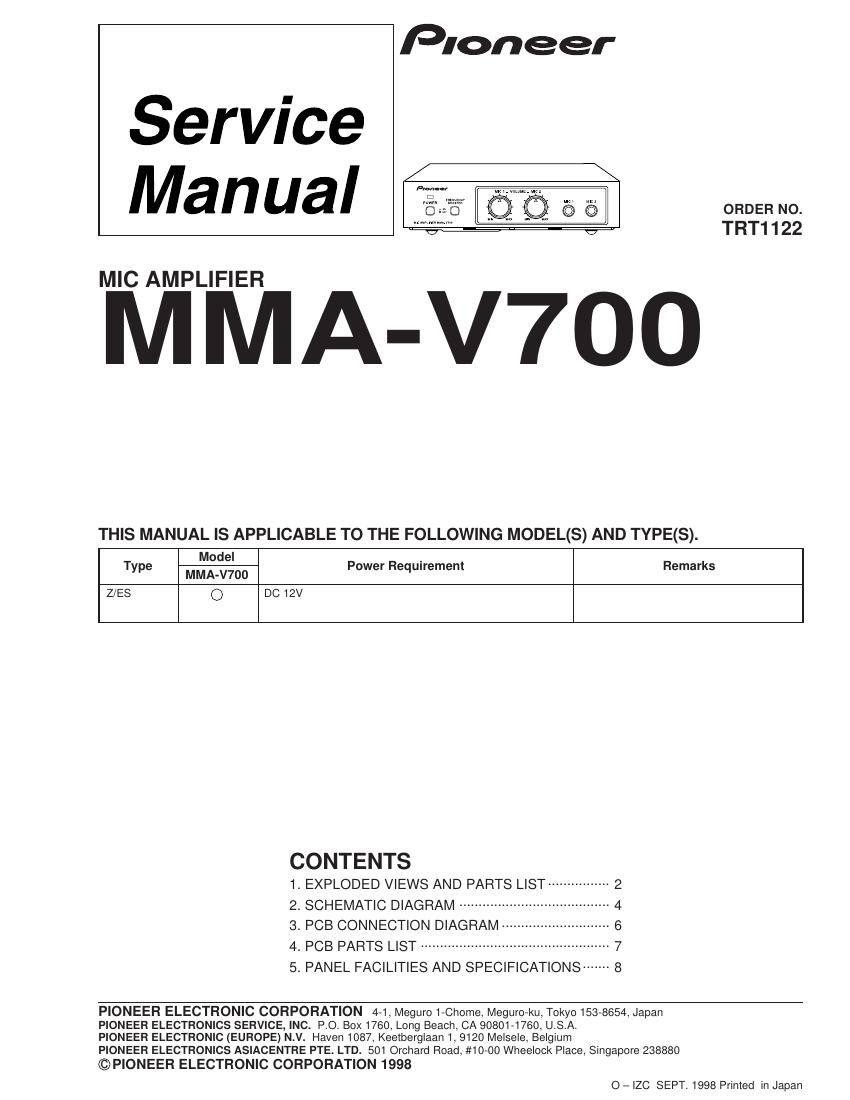

Page 1
Pioneer
Service
Manual
ORDER NO.
TRT1122
MIC AMPLIFIER
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
Type MIT/1,2300 Power Requirement Remarks
Z/ES O DC 12V
CONTENTS
1. EXPLODED VIEWS AND PARTS LIST--
2- SCHEMATIC DIAGRAM ............................
3. PCB CONNECTION DIAGRAM
4- PCB PARTS LlST ........................ ..
5. PANEL FACILITIES AND SPECIFICATIONS ------- 8
\1034>|'\)
PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE, INC. P.O. BOX1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER ELECTRONIC (EUROPE) N.V. Haven 1087, Keetberglaan 1, 9120 MelseIe, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 501 Orchard Road, #10-00 Wheelock Place, Singapore 238880
©PIONEER ELECTRONIC CORPORATION 1998
O - IZC SEPT. 1998 Printed in Japan
Page 2
MMA-V700
1. EXPLODED VIEWS AND PARTS LIST
NOTES: 0 Parts marked by "NSF are generally unavailable because they are not in our Master Spare Parts List.
0 The A markfound on same component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
. Screws adjacent to V mark on the product are usedfor disassembly.
1.1 PACKING
0 PACKING PARTS LIST
Mark No. Description Part No.
1 Microphone Output Cable MDE1066
2 Operating Instructions MRB1026
(English/Chinese)
3 Packing Case MHG1206
4 Inner Partition MH61207
5 Mirror Mat Sheet MHL1021
6 Master Carton MHP1095
