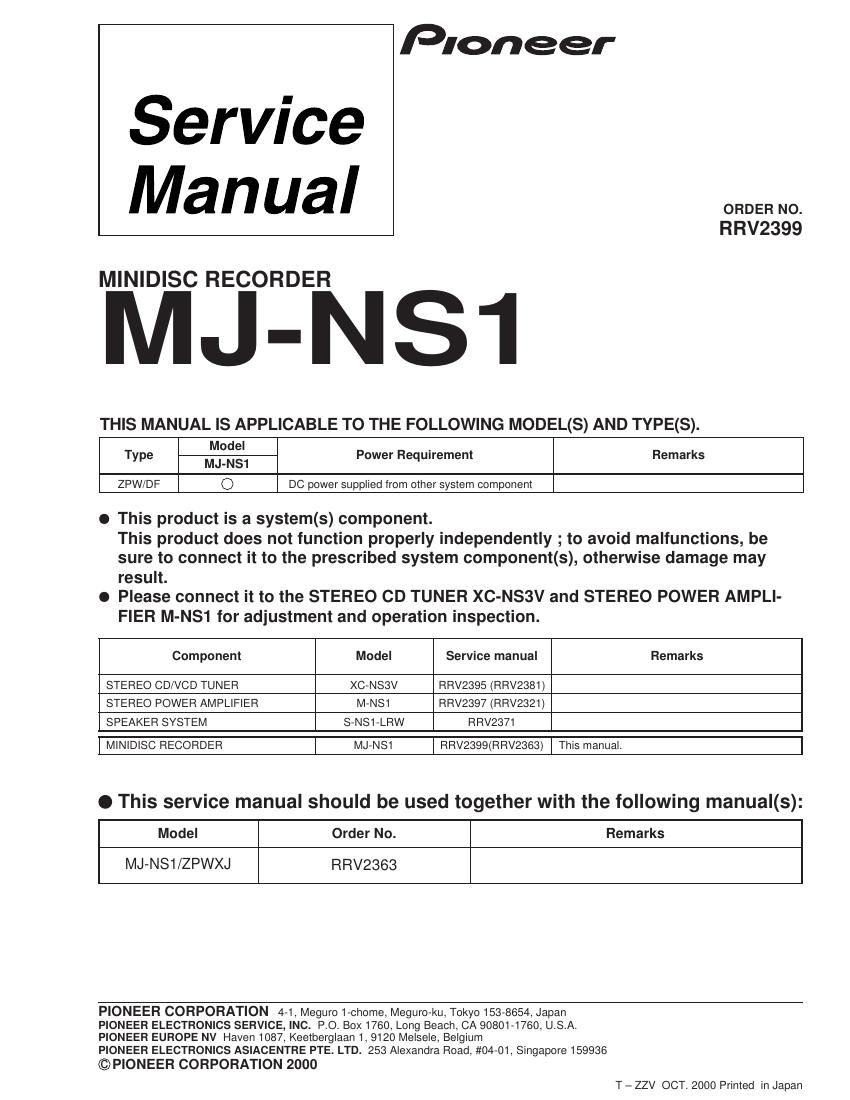

Pioneer mjns 1 service manual
This is the 2 pages manual for pioneer mjns 1 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer mjns 1 service manual (Ocr-read)
Page 1
2 MJ-NS1 CONTRAST OF MISCELLANEOUS PARTS Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Screws adjacent to mark on product are used for disassembly. Reference Nos. indicate the pages and Nos. in the service manual for the base model. NOTES: CONTRAST TABLE MJ-NS1/ZPW/DF and MJ-NS1/ZPWXJ are constructed the same except for the following: P3-14 Packing Case AHD7901 AHD7950 P5-35 NSP Name Label AAL7254 AAL7272 Ref. No.Remarks MJ-NS1/ZPWXJ MJ-NS1/ZPW/DFPart No. Mark Symbol and Description Packing Section Exterior Section
