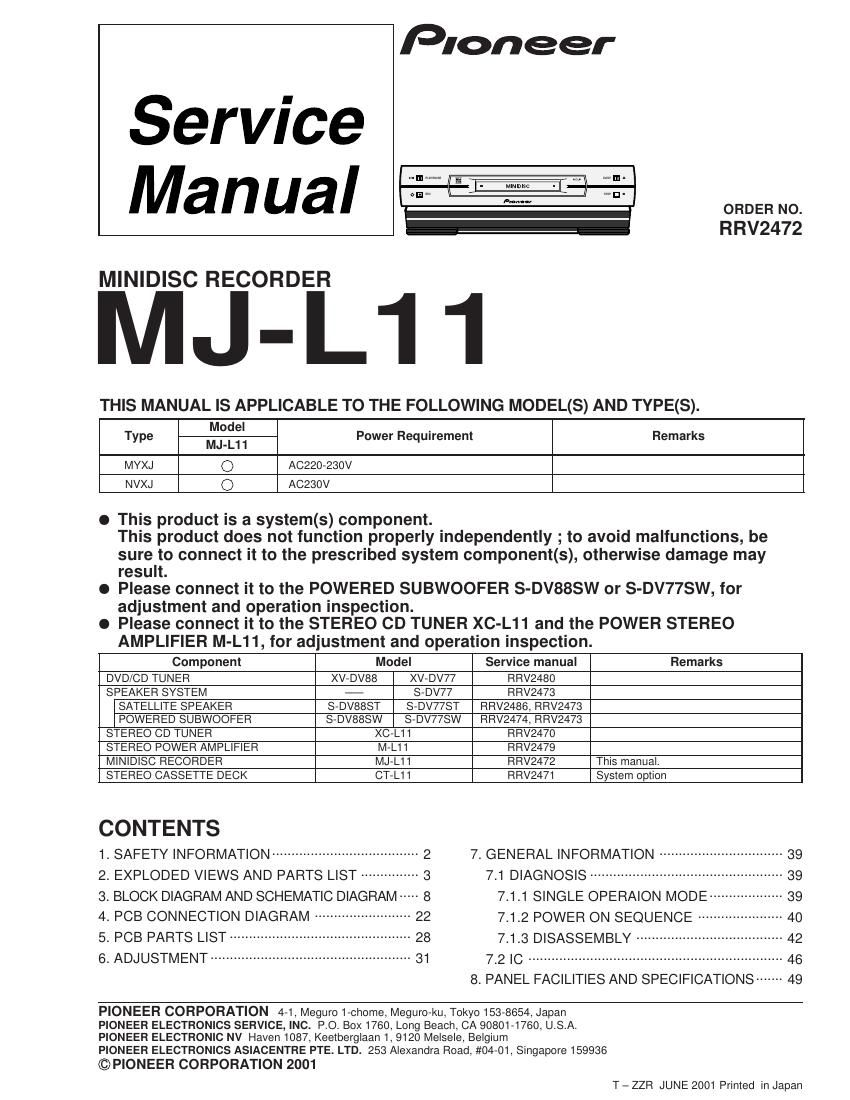

Pioneer mjl 11 service manual
This is the 52 pages manual for pioneer mjl 11 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer mjl 11 service manual (Ocr-read)
Page 1
MJ-L11 2 IMPORTANT THIS PIONEER APPARATUS CONTAINS LASER OF CLASS 1. SERVICING OPERATION OF THE APPARATUS SHOULD BE DONE BY A SPECIALLY INSTRUTED PERSON. LASER DIODE CHARACTERISTICS MAXIMUM OUTPUT POWER: 32 mW WAVELENGTH: 785 nm Control method of the current through a laser diode. The resistor R105 on the CORE MAIN UNIT ASSY (For MD mechanism assy) are for the limiting of current through a laser diode. Control method of the laser output power The laser pickup assy provide the photo-diodes and APC (Auto Power Control) circuit. The photo-diode detect output of the laser diode then IC104 control the APC circuit according to the signal voltage of the photo-diode via IC101. The Variable resistancer on the FPC in the Laser pickup assy can be adjusted the output level of Laser diode to fix the rated output level. Laser Interlock Switch The loading position detect switch S101 is set to Ò LOAD ON Ó (ON: low level, OFF: high level) position, IC104 get the Ò LOAD Ó signal, and hand the laser Ò LDON Ó signal to No. 9 terminal (LDON) of the Laser pickup assy. Then a laser diode can be lighted exept when the level of signal ÒLOAD Ó is low. Additional Laser Caution 1. SAFETY INFORMATION This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so and refer the repair to a qualified service technician. * Refer to page 31. LABEL CHECK NVXJ type MYXJ type ( MYXJ type Only )
Page 2
MJ-L11 3 2. EXPLODED VIEWS AND PARTS LIST NOTES : Parts marked by Ò NSP Ó are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Screw adjacent to mark on the product are used for disassembly. 2.1 PACKING Mark MYXJ type NVXJ type (2) CONTRAST TABLE MJ-L11/MYXJ and NVXJ are constructed the same except for the following: 1 Power Cord ADG1154 ADG1156 3 Operating Instructions ARC7338 Not used (German/Italian) 4 Operating Instructions ARC7372 Not used (Spanish/Dutch) 5 Operating Instructions ARC7373 Not used (Swedish/Portuguese) 9 Packing Case AHD7998 AHD7997 Part No. Remarks Symbol and Description No. Mark No. Description Part No. (1) PACKING PARTS LIST 1 Power Cord See Contrast table (2) NSP 2 Warranty Card ARY7022 3 Operating Instructions See Contrast table (2) 4 Operating Instructions See Contrast table (2) 5 Operating Instructions See Contrast table (2) 6 Optical Digital Cord (L= 0.5m) RKX1031 7 Pad Front AHA7340 8 Pad Rear AHA7341 9 Packing Case See Contrast table (2) 10 Sheet (750 ´ 600 ´ 0.5) Z23Ð007 11 Spacer NS2001 AHB7056 12 Polyethylene Bag(115x270x0.05) Z21-013 NSP 13 Polyethylene Bag Z21Ð038 (0.03 ´ 230 ´ 340) 14 Operating Instructions ARE7278 (English/French) FRONT 3 4 513 2 MYXJ type only 14 MYXJ type onlyMYXJ type only6 12 1 11 9 8 10 7 MJ-L11
