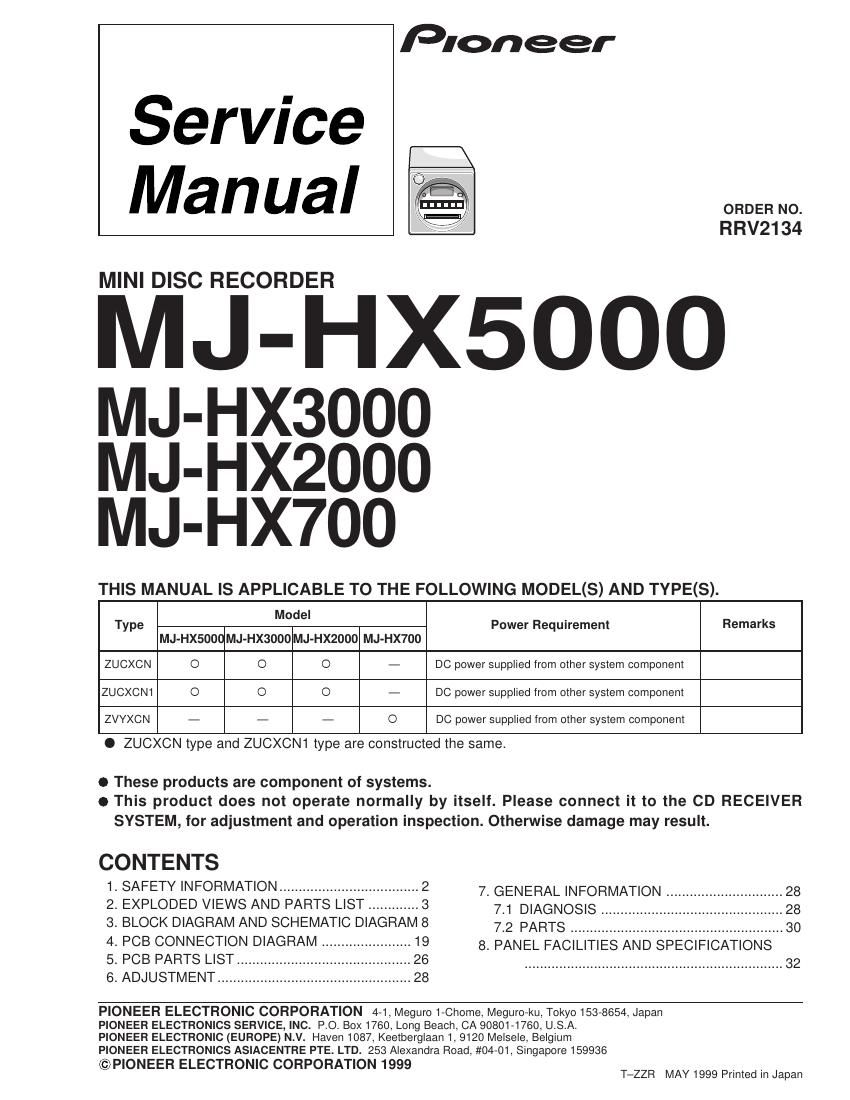

Pioneer

Service
Manual

MINI DISC RECORDER

MJ-HX5000

MJ-HX3000
MJ-HX2000
MJ-HX7OO

THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).

ORDER NO.
RRV2134

Model .
TYPE Power Requirement Remarks
MJ-HX5000 MJ-HX3000 MJ-HX2000 MJ-HX700
ZUCXCN O O O - DC power supplied from other system component
ZUCXCN1 O O O - DC power supplied from other system component
ZVYXCN - - - 0 DC power supplied from other system component

O ZUCXCN type and ZUCXCN1 type are constructed the same.
0 These products are component of systems.

0 This product does not operate normally by itself. Please connect it to the CD RECEIVER
SYSTEM, for adjustment and operation inspection. Otherwise damage may result.

CONTENTS

1- SAFETY 'NFORMAT'ON ------------------------- ----2 7. GENERAL INFORMATION .............................. 28
2. EXPLODED VIEWS AND PARTS LIST ....3 7'1 DIAGNOSIS _____ ___28
3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM 8 72 PARTS _____________ 30
4- PCB CONNECTION DIAGRAM ----- 19 8. PANEL FACILITIES AND SPECIFICATIONS

5- PCB PARTS LIST ------------------------------- 26 ................................................................... 32
e. ADJUSTMENT .................................................. 28

PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE, INC. P.O. BOX 1760, Long Beach, CA 90801-1760, U.S.A.

PIONEER ELECTRONIC (EUROPE) N.V. Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium

PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936

©P|ONEER ELECTRONIC CORPORATION 1999 _ _
T-ZZR MAY 1999 Prlmed In Japan
