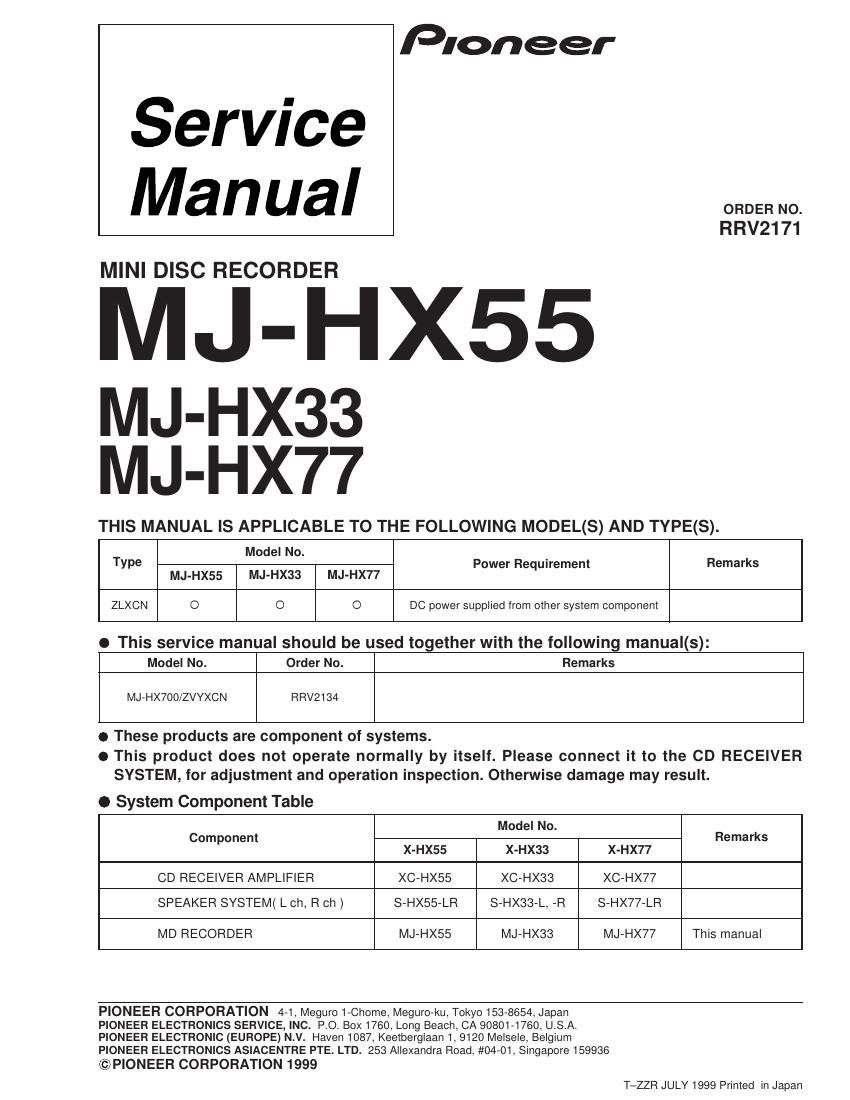

Pioneer mjhx 33 service manual

Page 1

MJ-HX55, MJ-HX33, MJ-HX77 2 7 CONTRAST OF MISCELLANEOUS PARTS NOTES :ÖParts marked by Ò NSP Ó are generally unavailable because they are not in our Master Spare Parts List. ÖThe mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. ÖScrew adjacent to ° mark on the product are used for disassembly. ÖReference Nos. indicate the pages and Nos. in the service manual for the base model. PACKING P3-3 Display Carton 66679-70 66679-55L 66679-33L 66679-77L P3-6 Sound Scape MD AFB7011 AFB7005 AFB7003 AFB7011 POS Code Seal 66668-M70 66668-M55 66668-M33 66668-M77 No.1 EXTERIOR P5-1 NSP Front Cover (A) 66714-K7M 66714-05M Not used 66714-K7M Front Cover (B) Not used Not used 66715-03M Not used P5-2 NSP Front Door (A) 66708-K7M 66708-05M Not used 66708-K7M Front Door (B) Not used Not used 66709-03M Not used P5-3 Button B (MD) 66717-K7M 66717-05M 66717-03M 66717-K7M P5-10 MD Front Case 66702-K7 66702-05 66702-03 66702-K7 P5-11 Button D (REC) 66719-K7R 66719-05R 66719-03R 66719-K7R P5-19 Eject Button 66721-K7 66721-05 66721-03 66721-K7 P5-20 Button C (MD EDIT) 66718-K7ME 66718-05ME 66718-03ME 66718-K7ME P5-24 Inner Panel (MD) 66711-K7M 66711-05M 66711-03M 66711-K7M P5-36 Leg Rubber (A) 66758-01 66758-01 Not used 66758-01 Leg Rubber (B) Not used Not used 66759-02 Not used P5-37 Foot (A) 66722-K7 66722-05 Not used 66722-K7 Foot (B) Not used Not used 66723-03 Not used P5-38 MD Rear Case 66704-K7 66704-05 66704-03 66704-K7 P5-46 Back Plate (MD) 66762-70 66762-MJ55 66762-MJ33 66762-MJ77 P5-47 Front Door A Assy (MD) 10000-K7M 10000-05M Not used 10000-K7M Front Door B Assy (MD) Not used Not used 10100-03M Not used MJ-HX55/ZLXCN, MJ-HX33/ZLXCN, MJ-HX77/ZLXCN and MJ-HX700/ZVYXCN are constructed the same except for the following : CONTRAST TABLE Note : ¥ The numbers in the remarks column correspond to the numbers on the exploded diagram. Refer to ÒEXPLDED VIEWSÓ EXPLDED VIEWS PACKING SECTION Display Carton No.1 Front Side Ref. No.Mark /ZVYXCN /ZLXCN /ZLXCN /ZLXCNPart No. Remarks Symbol and Description MJ-HX33 MJ-HX77 MJ-HX700 MJ-HX55
