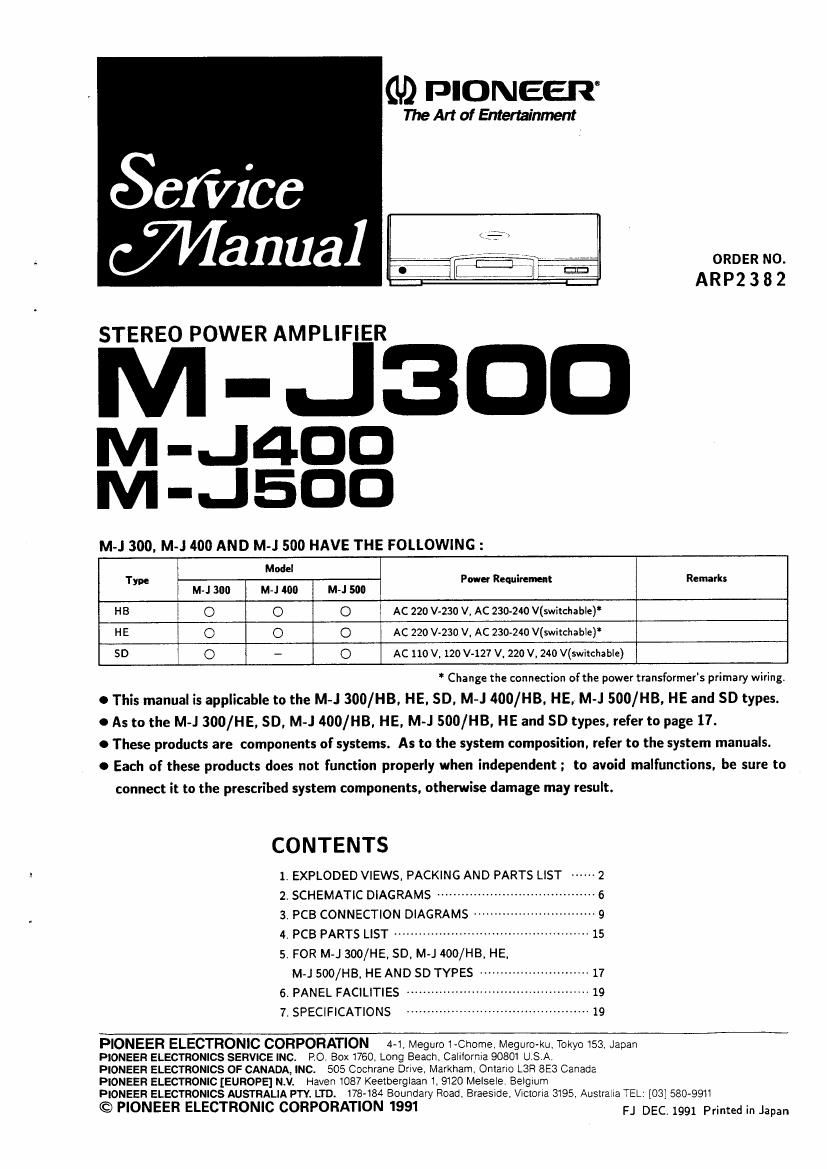

Pioneer mj 400 service manual

Page 2

M-JSDD

1. EXPLODED VIEWS, PACKING AND PARTS :LIST

NOTES:

0 The parts with an encircled number are generally unavailable because they are not in tam-Master Spare Parts List.

0 The A mark found an some component parts indicates the importance of the safety factor of the part. Therefore, when replacing,
be sure to use parts of identical designation.

0 Parts marked by O are not always kept in stock Their delivery time may be longer than usual or they may be unavailable.

1.1 PARTS LIST

Mail: No. Description Parts No. Mark No. Description Parts No.
1. POWER BUTTON AAD2109 A 31. CAPACITOR FOR POWER (Cl) ACG1003
2. INDICATOR LENS(PLS) AAK2224 A 32. FUSE (FU1,4A) AEK-511
3. BTYTE ABA1093 33. SCREW ABA1147
4. BIND B TYTE ABA-298 34. BIND B TYTE ABAIOOQ
5. B TY'IE ABA1011 35. CONNECTOR CABLE(.I) ADE1117
6. BIND 3 x 1813 TYTE ABAIOIS A 36. TRANSISTOR(03, Q4) 2SA1302
7. B TYTE 3 x 10 ABA-283 A 37. PUSE (PU. 4A)(SD only) ARK-511
8. B TYTE 3 X 14 ABA1082 A 33. TRANSISTOR(Q1, Q2) 2503281
9. P TYTE 2.6 x s ABA1095 39. REINFORCED PLATE ANG1635

10. POWER BUTTON SPRING ARI-11079 A 40. PUSH SWITCH(SI) Ascwss
A 11. POWER CORD ADCnoa A 41. POWERTRANSPORMER(T1) ATS1330
A 12. AC CORD STOPPER AEc-ssz O 42. POWER ASS'Y AW23783

13. PCB SUPPORT AEc1010 O 43. POWER SW ASSY AWZ3789

14. FOB SUPPORT AEc1216 ® 44. TRANS CONNECT ASSY AWZ3792

15. PCB SPACER AE01303 © 45. SP TERMINAL ASSY AW23793

1s. BINDER AEP-zls © 46. SP SW ASSY sza790

17. MIKA SHEET AEE1014 © 47. LED ASSY AW23813

18. FRONT PANEL ASSY AMBIsm © 48. HEAD PHONE ASSY AWZ4116

19. PCB MOLD AMR1525 49. FOOT ASS'Y AMR1937

20. CHASSIS ANA1161

A 50. VOLTAGE SELECTOR AKXASO7

21. REAR PANEL ANC1795 51. SPEAKER KNOB AAD21o7

22. BONNET(MTL) ANE1320 52. SPEAKER KNOB AADz14s

23. P c B HOLDER ANG1609

24' .. ..

25. CHASSIS COVER ANG1627

26. HEAT SINK ANH1266

27. SCREW BBZZGPOBOFMC

28. SCREW BCZSOPIODFZK

29. FOOT ASSY(ABS) RXA1448

so. BINDER ABC-826
