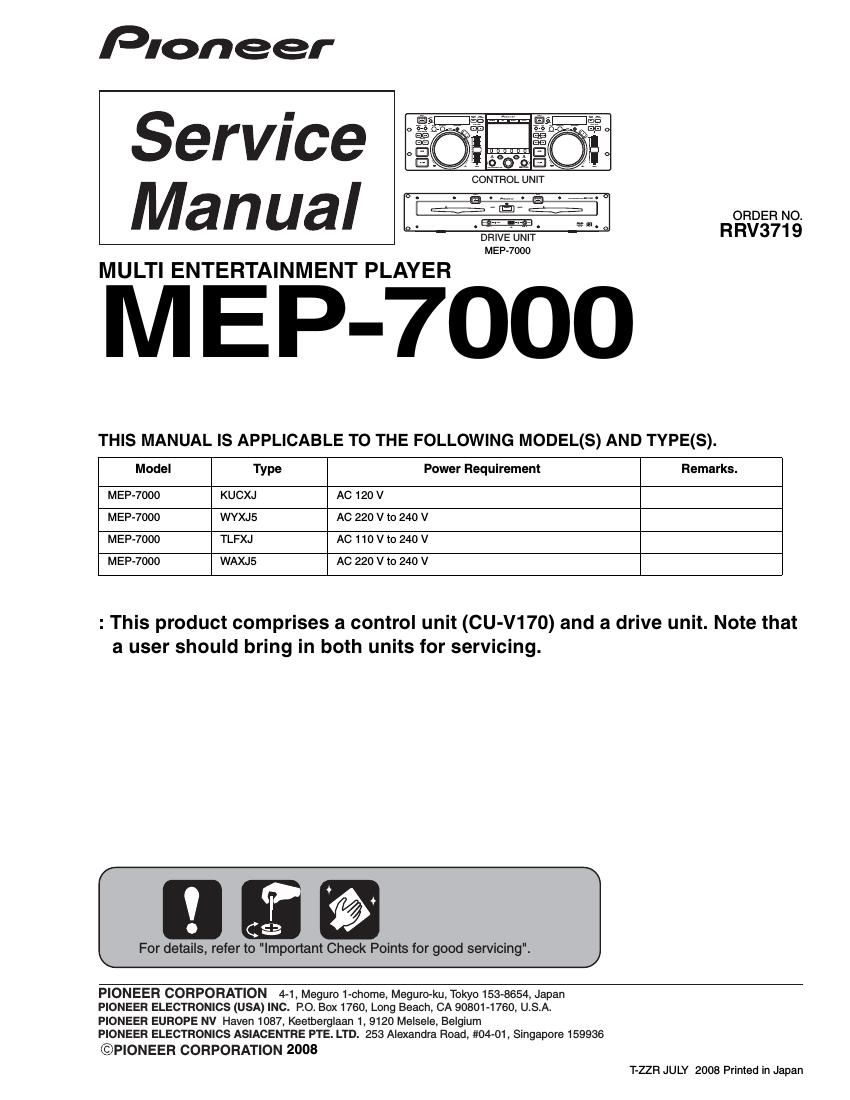

Pioneer mep 7000 service manual

This is the 286 pages manual for pioneer mep 7000 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 286
pioneer mep 7000 service manual

Extracted text from pioneer mep 7000 service manual (Ocr-read)


Page 1

2 MEP-7000 1 2 3 4 A B C D E F 1 2 3 4 SAFETY INFORMATION This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer. Qualified technicians have the necessary test e quipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk tryin g to do so and refer the repair to a qualified service technician. WARNING This product contains certain electrical parts contain chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. Health & Safety Code Section 25249.6 - Proposition 65 NOTICE (FOR CANADIAN MODEL ONLY ) Fuse symbols (fast operating fuse) and/or (slow operating fuse) on PCB indicate that replacement parts must be of identical designation. REMARQUE (POUR MODÈLE CA NADIEN SEULEMENT) Les symboles de fusible (fusible de type rapide) et/ou (fusible de type lent) sur CCI indiquent que les pièces de remplacement doivent avoir la même désignation. ANY MEASUREMENTS NOT WITHIN THE LIMITS OUTLINED ABOVE ARE INDICATIVE OF A POTENTIAL SHOCK HAZARD AND MUST BE CORRECTED BEFORE RETURN- ING THE APPLIANCE TO THE CUSTOMER. 2. PRODUCT SAFETY NOTICE Many electrical and mechanical parts in the appliance have special safety related characteristics. These are often not evident from visual inspection nor the protection afforded by them necessarily can be obtained by using replacement components rated for voltage, wattage, etc. Replacement parts which have these special safety characteristics are identified in this Service Manual. Electrical components having such features are identified by marking with a on the schematics and on the parts list in this Service Manual. The use of a substitute replacement component which does not have the same safety characteristics as the PION EER recommended replacement one, shown in the parts list in this Service Manual, may create shock, fire, or other hazards. Product Safety is continuously under review and new instructions are issued from time to time. For the latest information, always consult the current PION EER Service Manual. A subscription to, or additional copies of, PION EER Service Manual may be obtained at a nominal charge from PION EER. (FOR USA MODEL ONLY) 1. SAFETY PRECAUTIONS The following check should be performed for the continued protection of the customer and service technician. LEAKAGE CURRENT CHECK Measure leakage current to a known earth ground (water pipe, conduit, etc.) by connecting a leakage current tester such as Simpson Model 229-2 or equivalent between the earth ground and all exposed metal parts of the appliance (input/output terminals, screwheads, metal overlays, control shaft, etc.). Plug the AC line cord of the appliance directly into a 120V AC 60 Hz outlet and turn the AC power switch on. Any current measured must not exceed 0.5 mA. Device under test Leakage current tester Earth ground Reading should not be above 0.5 mA Also test with plug reversed (Using AC adapter plug as required) Te s t a l l exposed metal surfaces AC Leakage Test

Page 2

3 MEP-7000 5 6 7 8 5 6 7 8 A B C D E F IMPORTANT THIS PIONEER APPARATUS CON TA INS LASER OF CLASS 1. SERVICIN G OPERATION OF THE APPARATUS SHOULD BE DON E BY A SPECIALLY INSTRUCTED PERSON. Additional Laser Caution For TLFXJ For WYXJ5 and KUCXJ For WAXJ5 For TLFXJ (VR W2257) (DR W1975) (VR W2159) For WAXJ5 (DRW2372) LASER DIODE CHARACTERISTICS FOR DVD : MAXIMUM OUTPUT PO WER : 5 mW WAVELEN GTH : 650 nm FOR CD : MAXIMUM OUTPUT PO WER : 7 mW WAVELEN GTH : 78 0 nm ∗ : See page 160, 161, 164, 165. 1. Laser Interlock Mechanism The position of the switch (S4400,S4500) for detecting loading completion is detected by the system microprocessor, and the design prevents laser diode oscillation when the switch is not in LPS1 terminal side (when the mechanism is not clamped and LPS1 signal is high level.) Thus, the interlock will no longer function if the switch is deliberately set to LPS1 terminal side. (if LPS1 signal is low level ). In the SERVICE MODE∗ the interlock mechanism will not function. Laser diode oscillation will continue, if pin 3 (pin 5) of A N22022A (IC102, IC902) on the SRV1,SRV2 Assy is connected to GND, or else the terminals of Q102 (Q103), Q902(Q903) are shorted to each other (fault condition). 2. When the cover is opened, close viewing of the objective lens with the naked eye will cause exposure to a Class 1 laser beam. WARNING ! THE AEL (ACCESSIBLE EMISSION LEVEL) OF THE LASER POWER OUTPUT IS LESS THAN CLASS 1 BUT THE LASER COMPON EN T IS CAPABLE OF EMITTIN G RADIATION EXCEEDING THE LIMIT FOR CLASS 1. A SPECIALLY INSTRUCTED PERSON SHOULD DO SERVICING OPERATION OF THE APPARATUS. For WYXJ5 and KUCXJ Rear Panel LABEL CHECK Printed on the Rear Panel Printed on the Rear Panel Printed on the Rear panel For KUCXJ type Only EJEC T POWER S TO P S TO P REA RDISC1 U SB1 U S B2 DI S C2 EJEC T MEP-700 0 MU LTI ENTE RT AINMENT P L A Y E R This product contains mercury. Disposal of this material may be regulated due to environmental considerations. For disposal or recycling information, please contact your local authorities or the Electronics Industries Alliance: www.eiae.org. The backlighting lamp of LCD in this equipment contains mercury. Disposal of this material may be regulated due to environmental considerations according to Local, State or Federal Laws. For disposal or recycling information, please contact your local authorities or the Electronics Industries Alliance: www.eiae.org
