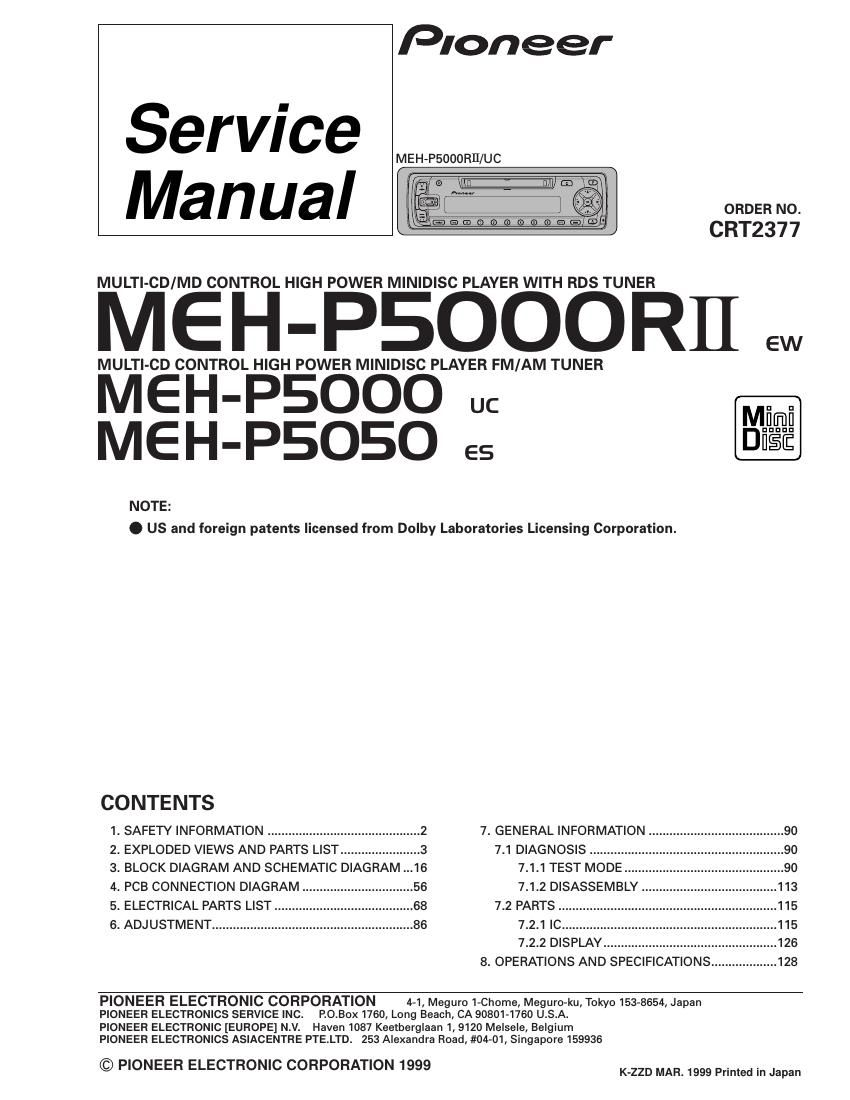

Pioneer mehp 5050 service manual
This is the 141 pages manual for pioneer mehp 5050 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer mehp 5050 service manual (Ocr-read)
Page 1
2 MEH-P5000RÑ,P5000,P5050 1. SAFETY INFORMATION 1.1 MEH-P5000/UC CAUTION This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely; you should not risk trying to do so and refer the repair to a qualified service technician. W ARNING This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California to cause cancer, birth defects or other reproductive harm. Health & Safety Code Section 25249.6 - Proposition 65 1.2 MEH-P5000RÑ/EW 1. Safety Precautions for those who Service this Unit. - When checking or adjusting the emitting power of the laser diode exercise caution in order to get safe, reliable results. Caution: 1. During repair or tests, minimum distance of 13cm from the focus lens must be kept. 2. During repair or tests, do not view laser beam for 10 seconds or longer. 2. A CLASS 1 LASER PRODUCT label is affixed to the bottom of the player.3. The triangular label is attached to the mechanism module frame. 4. Specifications of Laser Diode Specifications of laser radiation fields to which human access is possible during service. Wavelength = 780 nanometers CLASS 1 LASER PRODUCT
Page 2
3 MEH-P5000RÑ,P5000,P5050 2. EXPLODED VIEWS AND PARTS LIST 2.1 PACKING(MEH-P5000RÑ/EW) 1 Cord Assy CDE5722 2 Accessory Assy CEA1917 3 Screw CBA1284 4 Handle CNC5395 5 Bush CNV1009 * 6 Polyethylene Bag E36-615 7 Polyethylene Bag CEG-162 8 Case Assy CXB3520 9 Carton CHG3812 10 Contain Box CHL381211 Protector CHP2098 12 Protector CHP2099 13-1 Polyethylene Bag CEG1116 13-2 Owners Manual CRD3033 13-4 Owners Manual CRD3034 13-5 Owners Manual CRD3035 13-6 Installation Manual CRD3036 * 13-7 Label CRW1343 13-8 Passport CRY1013 * 13-9 Warranty Card CRY1087 NOTE: -Parts marked by * are generally unavailable because they are not in our Master Spare Parts List. -Screws adjacent to Ñmark on the product are used for disassembly. -PACKING SECTION PARTS LIST Mark No. Description Part No. Mark No. Description Part No. -Owner's Manual, Installation Manual Model Part No. Language MEH-P5000RÑ/EW CRD3033 English, Spanish CRD3034 German, French CRD3035 Italian, Dutch CRD3036 English, Spanish, German, French, Italian, Dutch 13 5 3 8 1 6 11 7 12 1094 2
