Pioneer mehp 5000 r service manual
This is the 95 pages manual for pioneer mehp 5000 r service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer mehp 5000 r service manual (Ocr-read)
Page 1

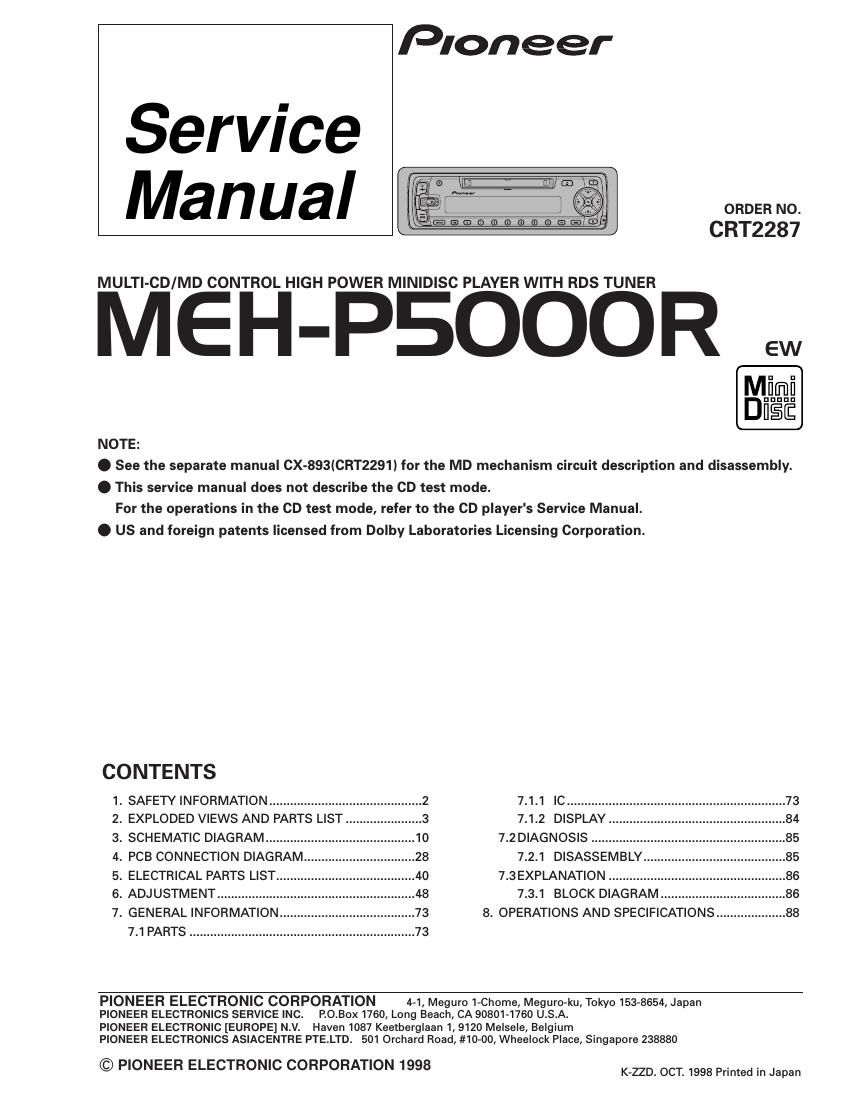

2 MEH-P5000R 1. SAFETY INFORMATION This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely; you should not risk trying to do so and refer the repair to a qualified service technician. 1. Safety Precautions for those who Service this Unit. - When checking or adjusting the emitting power of the laser diode exercise caution in order to get safe, reliable results. Caution: 1. During repair or tests, minimum distance of 13cm from the focus lens must be kept. 2. During repair or tests, do not view laser beam for 10 seconds or longer. 2. A CLASS 1 LASER PRODUCT label is affixed to the bottom of the player.3. The triangular label is attached to the mechanism module frame. 4. Specifications of Laser Diode Specifications of laser radiation fields to which human access is possible during service. Wavelength = 780 nanometers CLASS 1 LASER PRODUCT Triangular Label
Page 2
3 MEH-P5000R 2. EXPLODED VIEWS AND PARTS LIST 2.1 PACKING 1 Cord Assy CDE5722 2 Accessory Assy CEA1917 3 Screw CBA1284 4 Handle CNC5395 5 Bush CNV1009 * 6 Polyethylene Bag E36-615 7 Polyethylene Bag CEG-162 8 Polyethylene Bag CEG1116 9 Carton CHG3540 10 Contain Box CHL354011 Protector CHP2098 12 Protector CHP2099 13 Owners Manual CRD2736 14 Owners Manual CRD2737 15 Owners Manual CRD2738 16 Installation Manual CRD2739 * 17 Label CRW1343 18 Passport CRY1013 * 19 Warranty Card CRY1087 20 Case Assy CXB1063 NOTE: -Parts marked by * are generally unavailable because they are not in our Master Spare Parts List. -Screws adjacent to Ñmark on the product are used for disassembly. -PACKING SECTION PARTS LIST Mark No. Description Part No. Mark No. Description Part No. -Owner's Manual, Installation Manual Model Part No. Language MEH-P5000R/EW CRD2736 English, Spanish CRD2737 German, French CRD2738 Italian, Dutch CRD2739 English, Spanish, German, French, Italian, Dutch
