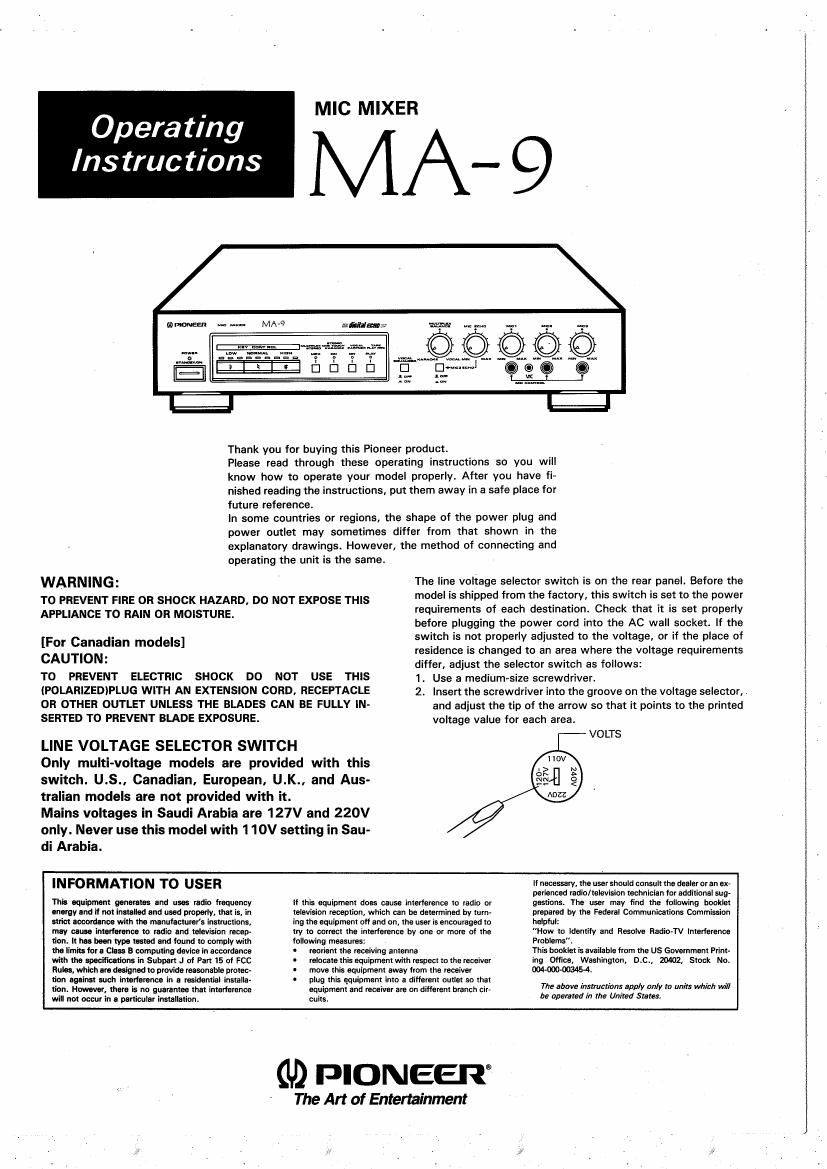

Page 1

, MIC MIXER
Opera ting

lnstruc tions

Thank you for buying this Pioneer product.

Please read through these operating instructions so you will
know how to operate your model properly. After you have fi~
nished reading the instructions, put them away in a safe place for
future reference.

In some countries or regions, the shape of the power plug and
power outlet may sometimes differ from that shown in the
explanatory drawings. However, the method of connecting and
operating the unit is the same.

WARNING:

The line voltage selector switch is on the rear panel. Before the

TO PREVENT FIRE 0R SHOCK HAZARD, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE.

[For Canadian models]
CAUTION:

TO PREVENT ELECTRIC SHOCK DO NOT USE THIS
(POLARIZEDiPLUG WITH AN EXTENSION CORD. RECEPTACLE
OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY IN-
SERTED TO PREVENT BLADE EXPOSURE.

LINE VOLTAGE SELECTOR SWITCH

Only multi-voltage models are provided with this
switch. U.S., Canadian, European, U.K., and Aus-
tralian models are not provided with it.

Mains voltages in Saudi Arabia are 127V and 220V
only. Never use this model with 1 10V setting in Sau-
di Arabia.

model is shipped from the factory, this switch is set to the power
requirements of each destination. Check that it is set properly
before plugging the power cord into the AC wall socket. If the
switch is not properly adjusted to the voltage, or if the place of
residence is changed to an area where the voltage requirements
differ, adjust the selector switch as follows:

1. Use a medium~size screwdriver.

2. Insert the screwdriver into the groove on the voltage selector,,
and adjust the tip of the arrow so that it points to the printed
voltage value for each area.

VOLTS

INFORMATION TO USER

If necessary, the user should consult the dealer or an ex-
perienced radio/television technician Ior additional sug-

Tiiio equipment 96mm!!! and one radio frequency
energy no if not installed and used propeflv, that is, in
strict Imnol with the manufacturer's instructions,
may cluu int-nuance to radio and television mew
rich. It nu boon lypo tested and round to comply with
the limit: for I Cl! 5 computing device in accordance
with tho mfiuflona in Snboart J of Part 15 0' FCC
Rules. which ur- mum to provide reasonable protec-
tion against such intorloronca in a residential installs-
Iion. Hon-oar, rhoro is no guarantee that interlerenoe
wil nol occur in . particular installation.

ll this aquiumom does cause interferanoe to radio or

television reception, which can be detennlned by rum-

ing the equipment off and on, the use! is encouraged to

try in correct the interference by one or more of the

following measures:

' reorient the receiving antenna

a minute this equipment with respect to the receiver

. move this equipment away lrom the receiver

- plug this qquipmsnr am a dimrenr ourior so that
equipment and receiver are on different branch cir-
cuits.

gushohs. Tho user may Iind the «allowing booklet
prepared by the Federal Communications commission
helpful:

"How to Identify and Resolve Radiosrv Interloranca
Problems".

This booklet is available from the us com-imam Print-
ing Office, Washington, Dc, 20402, Stock No.
mm.

m above instructions apply only to units which will
be opeured in the United States.

GD PIONEEIT

The Art of Entertainment

.3

Page 2

IMPORTANT

The lightning flash with arrowhead, within an equilateral
triangle, is intended to alert the user of the presence of
uninsulated dangerous voltage" within the product's
enclosure that may he of sufficient magnitude to constitute
a risltooi electric shock to persons.

CAUTION

RISK OF ELECTRIC SHOCK
DO NOT OPEN

CAUTION:

TO PREVENT THE RISK OF ELECTRIC SHOCK. DO
NOT REMOVE COVER (OR BACK). NO USER»
SERVICEABLE PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL

The exclamation point within an equilateral triangle is
intended to alert the user of the presence of important
operating and maintenance lservicingl instructions in
the literature accompanying the appliance.

IMPORTANT

If the apparatus is fitted with AC mains power outlstlsl,
see REAR PANEL FACILITIES for convenient
connection or additional Hi-Fi companentls). Make all
connections to the Ac outletls) and the signal terminals
first. Connect the plug to the wall socket last, make
sure that the power switch is oft.

FOR USE IN THE UNITED
KINGDOM

The wirel in this malns lead are coloured in
accordance wlth the fellowlng code:

Blue: Neutral

Brown: Liva
As the colours ot the wires in the mains lead of this
apparatus may not correspond with the coloured
marking identifying the terminals in your plug proceed
as follows:

The wire which is coloured blue must be connected to
the terminal which is marked with the letter N or
coloured black.

The wire which is coloured brown must be connected
to the terminal which is marked with the letter L or
coloured red.

Neither wire is to be connected to the earth terminal
of a three pin plug.

Equipment sold in theU.K. is not supplied with spawn
plug.

SAFETY INSTRUCTIONS

READ INSTRUCTIONS - All the safety and operating
instructions should be read belore the appliance is
operated.

RETAIN INSTRUCTIONS - The eatery and operating
instructions should be retained far future
reterence.

HEEDWARNING -Al| warnings on the appliance and in
the operating instructions should be adhered to.

FOLLOW INSTRUCTIONS _. All uperating and use
instructions should be followed.

WATER AND MOISTURE - The appliance should not
be used near water T for example, near a bathtub,
wasnoowl, kitchen sink. laundry tub. in a wet
basement, or near a swimming pool, etc.

LOCATION , The appliance should be installed in a
stable location.

WALL 0R CEILING MOUNTING - The appliance
should not be mnunted to a wall or ceiling.

VENTILATION , The appliance should be situated so
that its localian or position does not interfere with
its proper ventilation. For example, the appliance
should not besituated una bed,snfa, rug, arsimilar
surface that mav black theventilation openings; or,
placed in a built-in installation, such as a bookcase
or cabinet that may impede the flow of air through
the ventilation openings.

HEAT 7 The appliance should be situated aan from
heat sources such as radiators, heel registers,
stoves or other appliances (including amplifiers)
that produce heat.

POWER SOURCES , The appliance should be
connected to a power supply only at the type
described in the operating instructions or as
marked on lhe appliance.

rowan-coal: PROTECTION - Pawer~supply cords
should be routed so that they are nol likely to he
walked on or pinched bv items placed Upon or
against them. Pay particular attention to cords at
plugs, convenience receptacles. and the polnt
where they exit from the appliance.

POLARIZATION - II yuur purchased product is
pravided with a polariled power plug please read
the following instructions. This productis eouipped
with applurized alternating current line plug la plug
having one blade wider than the other). This plug
will fit into the power outlet only one way. This is a
safety feature. lf you are unable to insert the plug
Iully into the outlet, try reversing the plug. It the
plug should still fail to fit, contact your electrician to
replace your obsolete outlet. Do not defeat the
safety purpose of the polarized plug.

CLEANING - The appliance should be cleaned only
with a polishing cloth or a sort dry cloth. Never
clean with furniture wax, benzine, insecticldes ar
other volatile liquids since they mav corrode the
cabinet.

POWER LINEs- Anoutdocr antenna should be located
away from power lines.

NONUSE PERIODS T The power cord of the appliance
should be unplugged rrom the outlet when left
unused for a long period of time.

OBJECT AND LIQUID ENTRV - Care should be taken
so that objects do notfall and liquids are not spilled
into the enclosure through openings.

DAMAGE REQUIRING SERVICE - The appliance

should be serviced by e Pipneerauthorized service

center or qualified service personnel when:

The power-supply cord or the plug has been

damaged.

objects have fallen. or liquid has been spilled into

the appliance.

The appliance has been exposed to rain.

The appliance does not appearto operate normally

or exhibits a marked change in performance.

The appliance has been dropped or the enclosure

damaged.

SERVICING , The use! should not attempt to service
the appliance beyond that described in the
Operating instructions, All other servicing should
be referred to qualified service personnel.

LEAD IN
WIRE

ELECTRIC
SE RVICE

GROUND CLAMPS

ELECTRODE SYSTEM

FIG. A

OUTDOOR ANTENNA GROUNDING - If an outside

antenna is connected to the antenna terminal. be
sure the antenna system is grounded so as to
provide some protection against voltage surges
and built-up static charges.
In the U.S.A. section BIO of the National Electrical
Code. ANSI/NFPA 70, provides information with
respect to proper grounding of the mast and
supporting structure, grounding of the lead-in wire
to an antenna discharge unit, size of grounding
conductors, location of antenna discharge unit,
connection to grounding electrodes, and
requirements for the grounding electrode. See Fig.
A.

CART - An appliance and cart compinahon shduld be
moved with care. Quick stops, excessive iarce, and
uneven surfaces may cause the appliance and cart
cambinatipn to overturn.

»
NEC - NATIONAL ELECTRIC CODE

ANTENNA

ANTENNA
DISCHARGE UNIT
(NEC SECTION 310 - 20)

GROUNDING CONDUCTORS
(NEC SECTION 810 - 21}

POWER SERVICE GROUNDING

(NEC ART 2504 PART HI

E
<

RR31121>
