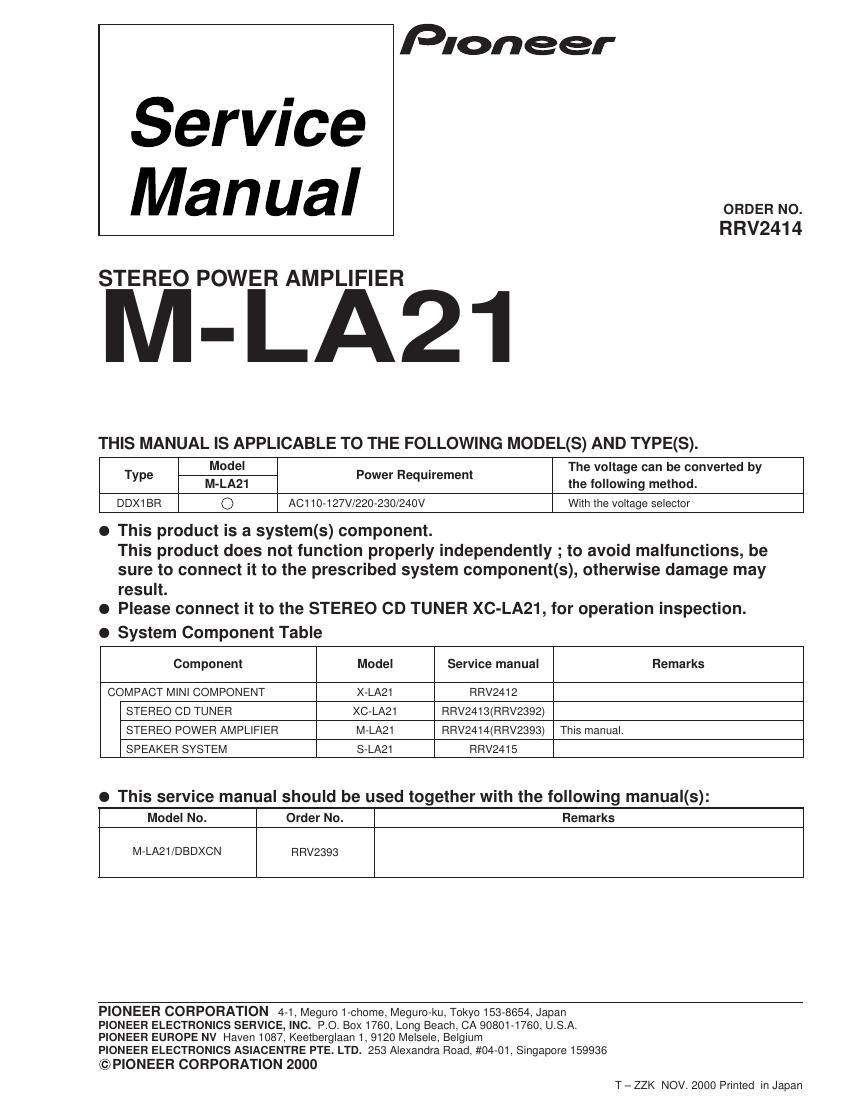

Pioneer m la21 service manual

Page 1

M-LA21 2 1. CONTRAST OF MISCELLANEOUS PARTS Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Screws adjacent to mark on product are used for disassembly. Reference Nos. indicate the pages and Nos. in the service manual for the base model. NOTES: CONTRAST TABLE Part No. Ref. No. Mark Symbol and Description M-LA21 M-LA21 Remarks /DBDXCN /DDX1BR PACKING (X-LA21) SECTION P3-8(1/2) Polyform Unit (Rear) 800PMT190001 BR00LA004 P3-8(2/2) Polyform Unit (Front) 800PMT190001 BR00LA003 P3-9(1/2) Polyfoam (Speaker) (Top) 800PMT390001 BR00LA005 P3-9(2/2) Polyfoam (Speaker) (Bottom) 800PMT390001 BR00LA006 P3-10 Poly Foam Sheet (C) SP 801999000002 801999000005 P3-11 Polythene foam Sheet 801999000005 801999000005 P3-16 Operating Instructions (English/Spanish/Chinese) 811PMT391011 BR811PMT391011 P3-17 Carton 813PMT393020 BR813PMT393020 P3-18 Corrugate Card 815001405213 BR815001405213 NSP Warranty Card Not used BR0090001 NSP Service Station List Not used BR0080001 EXTERIOR SECTION P5-20 Back Cover 500PMT303000 500PMT386000 P5-46 EMC Label 809PMT394030 Not used P5-47 Back Label 809PMT396040 809PMT396010 P5-48 NSP Serial Label 809000009000 BR00LA0001 P5-56 Caution Label Not used 809PMT394020 M-LA21/DBDXCN and DDX1BR are constructed the same except for the following :
