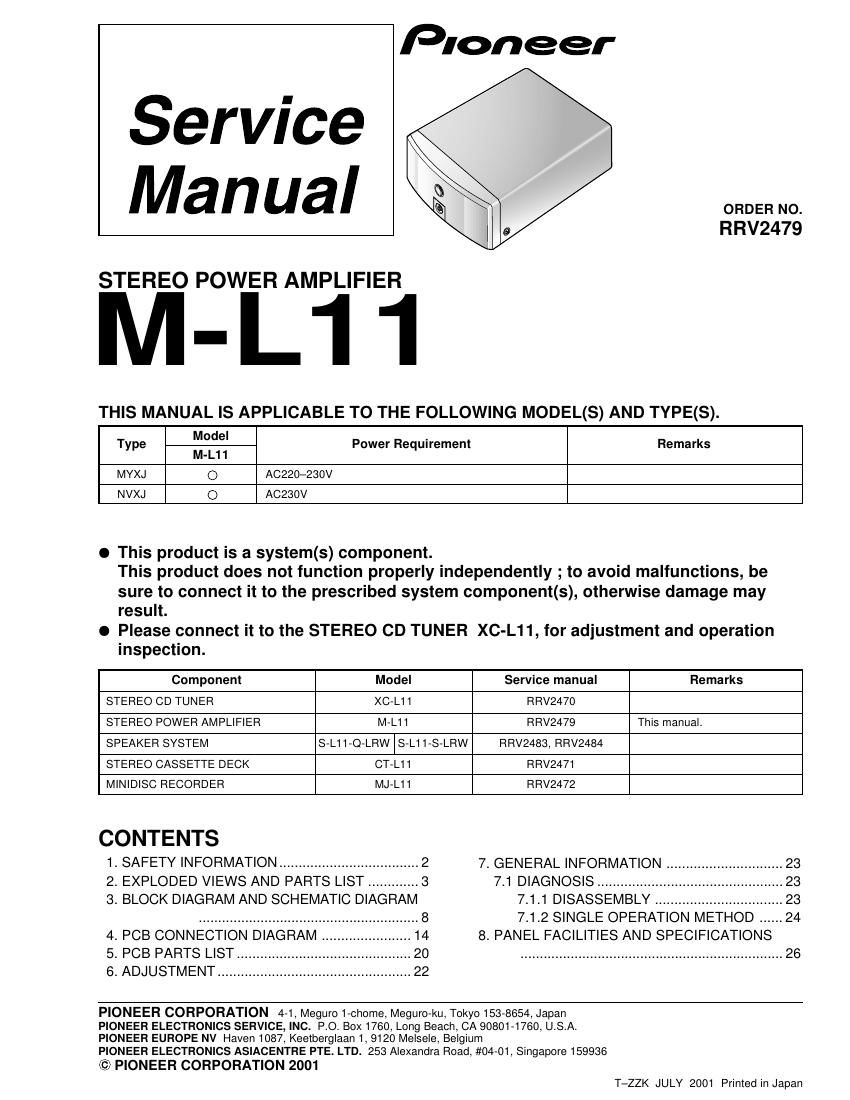

Pioneer ml 11 service manual
This is the 26 pages manual for pioneer ml 11 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer ml 11 service manual (Ocr-read)
Page 1
M-L11 2 1. SAFETY INFORMATION LITHIUM BATTERY NOTICE This warning is stated on the product or in the operating instructions. When replacing the lithium batteries, follow the note below. Dispose of the used battery promptly. Keep away from children. Do not disassemble and do not dispose of in fire. The battery used in this device may present a fire or chemical hazard if mistreated. Do not recharge, disassemble, heat above 100 ˚C or incinerate. Replace only with the same Part Number. Use of another battery may present a risk of fire or explosion. Note: The lithium battery installation position is shown in the exploded views.Denne advarsel or angivet på produktet eller i brugsvejledningen. Ved udskiftning af lithium batterierne følges nedenstående anveisning. Batterierne må kun udskiftes med batterier af samme type og mærke. WARNING! Lithium batteries. Danger of explo- sion. Replacement must be done by qualified personnel and only by fol- lowing the instructions given in the service manual. ADVARSEL! Lithiumbatteri − Eksplosionsfare ved fejlagtig håndtering. Udskiftning må kun ske med batteri af samme fabrikat og type. Levér det brugte batteri tilbage til leverandøren.
Page 2
M-L11 3 18 13 6 7 (MYXJ only)191 1516(1/2) 20 (MYXJ only)3 (MYXJ type) FRONT3 (NVXJ type) 21 (MYXJ only) 13 2 8 1414 10 11 12 5 9 4 17 16(2/2) 2. EXPLODED VIEWS AND PARTS LIST NOTES : Parts marked by NSP are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Screw adjacent to mark on the product are used for disassembly. 2.1 PACKING (1) PACKING PARTS LIST 1 System Cable (20P) ADE7057 2 Display cable (10P) ADE7077 3 AC Power Cord See Contrast table (2) 4 Fuse (T5A) See Contrast table (2) 5 FM Wire Antenna ADH7005 6 Operating Instructions ARE7277 (English/French) 7 Operating Instructions See Contrast table (2) NSP 8 Warranty Card ARY7022 9 Loop Antenna ATB7009 10 Remote control Unit AXD7306 Mark No. Description Part No. 11 Battery Lid AZN7834 NSP12 Lithium Battery (CR2025) VEM1009 13 Vinyl Bag (115 × 270 × 0.05) Z21–013 NSP 14 Polyethylene Bag Z21–038 (0.03 × 230 × 340) 15 Front Pad A AHA7368 16 Rear Pad A AHA7369 17 Spacer AMP AHB7058 18 Packing Case See Contrast table (2) 19 Sheet Z23–026 20 Operating Instructions See Contrast table (2) 21 Operating Instructions See Contrast table (2) Mark No. Description Part No. (2) CONTRAST TABLE 3 AC Power Cord ADG1154 ADG1156 4 Fuse (T5A) Not used AEK7001 7 Operating Instructions (Spanish/Dutch) ARC7337 Not used 18 Packing Case AHD8002 AHD8001 20 Operating Instructions (German/Italian) ARC7375 Not used 21 Operating Instructions (Swedish/Portuguese) ARC7376 Not used MYXJ type and NVXJ type are constructed the same except for the following: MYXJ type NVXJ typePart No. Symbol and Description No. MarkRemarks
