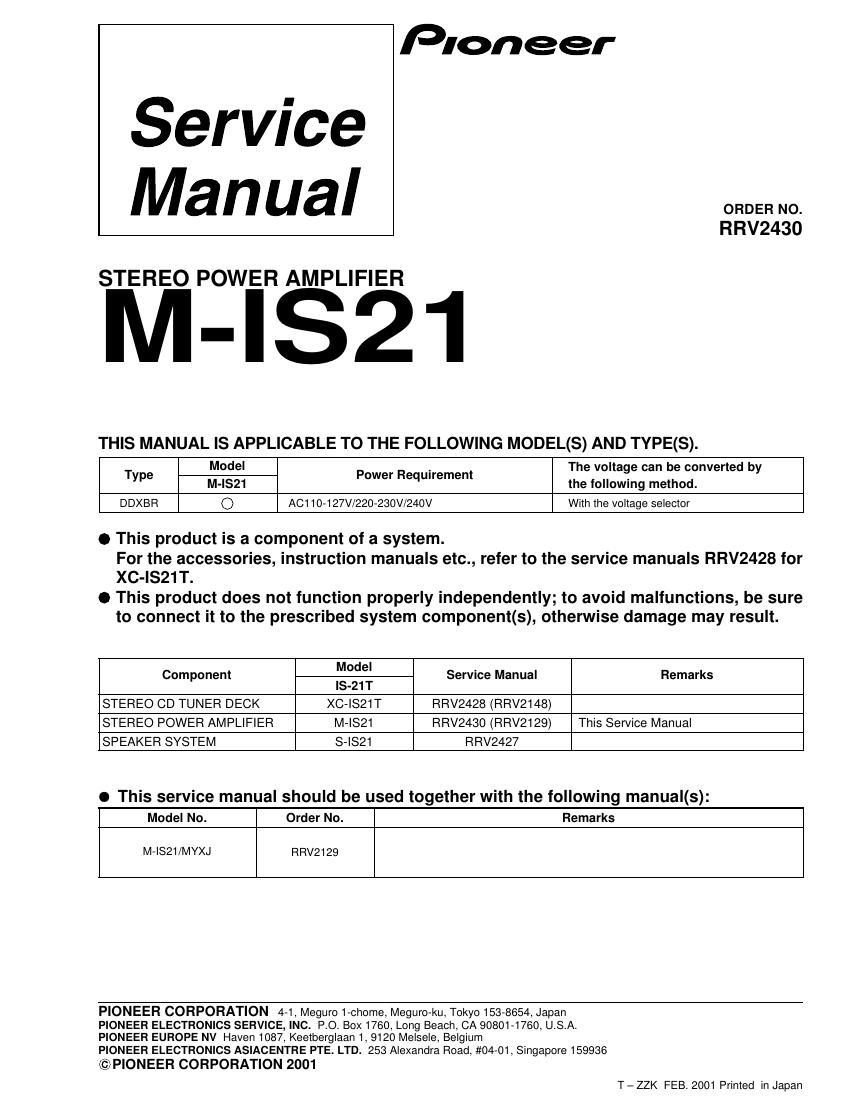

Pioneer m is21 service manual 2

This is the 4 pages manual for pioneer m is21 service manual 2.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 4
pioneer m is21 service manual 2

Extracted text from pioneer m is21 service manual 2 (Ocr-read)

Page 1

M-IS21 2 1. CONTRAST OF MISCELLANEOUS PARTS CONTRAST TABLE Part No. Ref. No. Mark Symbol and Description M-IS21 M-IS21 Remarks /MYXJ /DDXBR PCB ASSEMBLIES NSP MAIN ASSY AWK7512 AWK7513 P5- 1 AF ASSY AWU7337 AWU7338 P5- 2 AMP ASSY AWU7340 AWU7341 P5- 4 NSP PRIMARY ASSY AWU7345 AWU7346 PACKING SECTION P3- 3 Packing Case AHD7747 AHD7961 EXTERIOR SECTION P5- 9 Power Transformer (AC220-230V) ATS7249 Not used P5- 9Power Transformer (AC110-127V/220-230V/240V) Not used ATS7247 P5-10Fuse (FU1 : T2.5A) REK1026 Not used P5-10Fuse (FU1 : T5.0A) Not used REK1029 P5-14 Rear Panel ANC7823 ANC7988 Fuse (FU2, FU3 : T2.5A) Not used REK1026 No. 1 Barrier Not used AAK7726 No. 2 NSP Fuse Card Not used AAX7098 No. 3 M-IS21/DDXBR and MYXJ are constructed the same except for the following : Notes : For PCB ASSEMBLIES, Refer to CONTRAST OF PCB ASSEMBLIES and 2. SCHEMATIC DIAGRAM. The numbers in the remarks column correspond to the numbers on the EXPLODED VIEWS . Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Screws adjacent to mark on product are used for disassembly. Reference Nos. indicate the pages and Nos. in the service manual for the base model. NOTES: When ordering resistors, first convert resistance values into code form as shown in the following examples. Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%, and K=10%). Ex.2 When there are 3 effective digits (such as in high precision metal film resistors). 561 473 R50 1R0 5621 560 47k 0.5 1RD1/4PU J RD1/4PU J RN2H K RS1P K 56 x 10 1 47 x 10 3 R50 1R0561 473 5.62k RN1/4PC F562 x 10 1 5621

Page 2

M-IS21 3 Screw (FBT40P060FZK) No.1 No.1 No.3 PRIMARY ASSY No.2 Power Transformer AMP ASSY F B Mark Symbol and DescriptionPart No. Remarks AWU7337 AWU7338 L1 LINE FILTER ATF7019 ATF7020S2 VOLTAGE SELECT SWITCH Not used AKX7013T1 STANDBY TRANSFORMER ATT7050 ATT7048 PRIMARY ASSY F D AF ASSY F A AWU7338 and AWU7337 are constructed the same except for the following : CONTRAST OF PCB ASSEMBLIES EXPLODED VIEWS Mark Symbol and DescriptionPart No. Remarks AWU7340 AWU7341 C3308 CKSQYB822K50 Not used C3319, C3320 CCSQCH6R0D50 CCSQCH100D50 C3327, C3328 CCSQCH680J50 Not used R3307 RS1/10S100J Not used AWU7341 and AWU7340 are constructed the same except for the following : Mark Symbol and DescriptionPart No. Remarks AWU7345 AWU7346 H103–H106 FUSE CLIP Not used AKR7001S1 VOLTAGE SELECT SWITCH Not used AKX7006 AWU7346 and AWU7345 are constructed the same except for the following :
