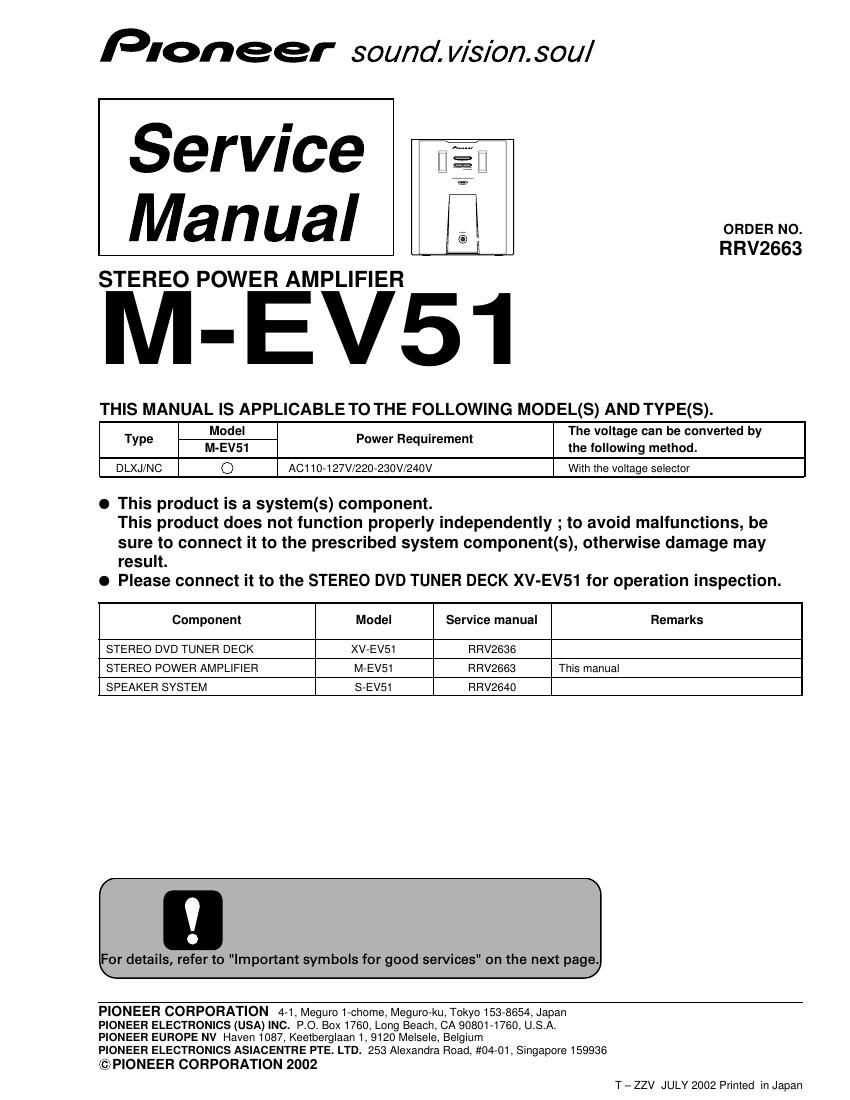

Page 1

Pioneer sound. vision. soul

Service
Manual

STEREO POWER AMPLIFIER

M-EV51

THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).

ORDER NO.
RRV2663

Type Model Power Requirement The voltage can be converted by
M-EV51 the following method.
DLXJ/NC O AC110-127V/220-230V/240V With the voltage selector

I This product is a system(s) component.

This product does not function properly independently ; to avoid malfunctions, be
sure to connect it to the prescribed system component(s), otherwise damage may

result.
0 Please connect it to the STEREO DVD TUNER DECK XV-EV51 for operation inspection.
Component Model Service manual Remarks
STEREO DVD TUNER DECK XV-EV51 RRV2636
STEREO POWER AMPLIFIER M-EV51 RRV2683 This manual
SPEAKER SYSTEM S-EV51 RRV2640

For details, refer to "Important symbols for good services" on the next page.

PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan

PIONEER ELECTRONICS (USA) INC. PO. Box 1760, Long Beach, CA 90801-1760, U.S.A.

PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936

© PIONEER CORPORATION 2002

T - ZZV JULY 2002 Printed in Japan

Page 2

SAFETY INFORMATION
0

This service manual is intended for qualified service technicians; it is not meant for the casual
do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been
trained to properly and safely repair complex products such as those covered by this manual.
Improperly performed repairs can adversely affect the safety and reliability of the product and may
void the warranty. If you are not qualified to perform the repair of this product properly and safely, you
should not risk trying to do so and refer the repair to a qualified service technician.

WARNING
This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California to
cause cancer, birth defects or other reproductive harm.

Health a Safety Code Section 25249.6 - Proposition 65

NOTICE

(FOR CANADIAN MODEL ONLY)

Fuse symbols El} (fast operating fuse) and/or a (slow operating fuse) on PCB indicate that replacement
parts must be of identical designation.

REMARQUE

(POUR MODELE CANADIEN SEULEMENT)

Les symboles de fusible EEI- (fusible de type rapide) et/ou a (fusible de type lent) sur CCI indiquent que
les pieces de remplacement doivent avoir la meme designation.

- (FOR USA MODEL ONLY)
1. SAFETY PRECAUTIONS

The following check should be performed for the
continued protection of the customer and service
technician.

LEAKAGE CURRENT CHECK

Measure leakage current to a known earth ground

(water pipe, conduit, etc.) by connecting a leakage

ANY MEASUREMENTS NOT WITHIN THE
LIMITS OUTLINED ABOVE ARE INDICATIVE
OF A POTENTIAL SHOCK HAZARD AND
MUST BE CORRECTED BEFORE RETURN-
ING THE APPLIANCE TO THE CUSTOMER.

current tester such as Simpson Model 22972 or
equivalent between the earth ground and all exposed
metal parts of the appliance (input/output terminals,
screwheads, metal overlays, control shaft, etc). Plug
the AC line cord of the appliance directly into a 120V
AC 60 HZ outlet and turn the AC power switch on. Any
current measured must not exceed 0.5 mA.

Reading should
not be above

Leakage 0 5 mA

current
DeVlCe tester
under
test

Test all
exposed metal
su rlaces

%
Also test with
plug reversed

(Using Ac adapter
plug as required) 7 ground

AC Leakage Test

2. PRODUCT SAFETY NOTICE

Many electrical and mechanical parts in the appliance
have special safety related characteristics. These are
often not evident from visual inspection nor the
protection afforded by them necessarily can be obtained
by using replacement components rated for voltage,
wattage, etc. Replacement parts which have these
special safety characteristics are identified in this
Service Manual.

Electrical components having such features are

identified by marking with a A on the schematics and
on the parts list in this Service Manual.
The use of a substitute replacement component which
does not have the same safety characteristics as the
PIONEER recommended replacement one, shown in the
parts list in this Service Manual, may create shock, fire,
or other hazards.

Product Safety is continuously under review and new
instructions are issued from timeto time. Forthe latest
information, always consult the current PIONEER
Service Manual. A subscription to, or additional copies
of, PIONEER Service Manual may be obtained at a
nominal charge from PIONEER.

1 I 2

M-EV51
-

3 I 4
