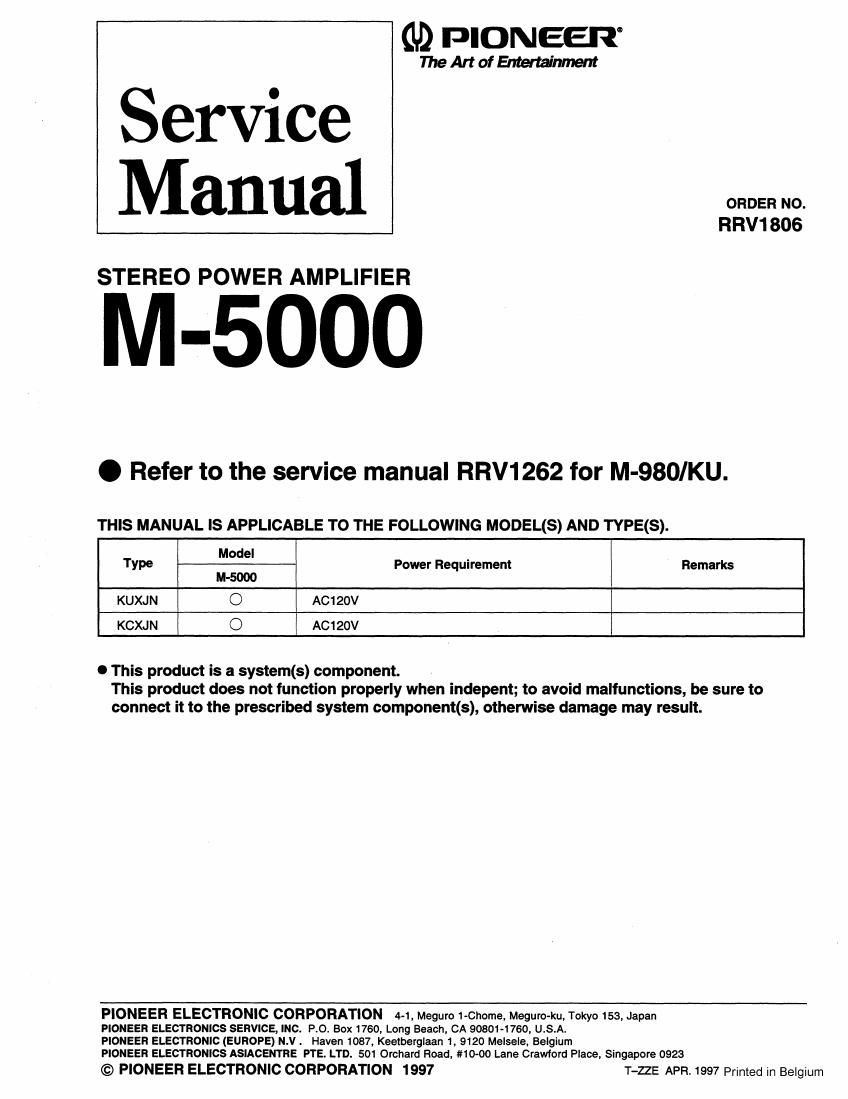

Page 1

(U) PIONEER

1119 Art of Entertainment

Service
Manual n°§3§232

STEREO POWER AMPLIFIER

-5000

O Refer to the service manual RRV1262 for M-980/KU.

THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).

Model
Type Power Requirement Remarks
M6000
KUXJN O AC120V
KCXJN O AC120V

O This product is a system(s) component.
This product does not function properly when indepent; to avoid malfunctions, be sure to
connect it to the prescribed system component(s), otherwise damage may result.

PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome. Meguro-ku, Tokyo 153, Japan
PIONEER ELECTRONICS SERVICE, INC. FD. Box 1760, Long Beach, CA 90801-1760, U.S.A.

PIONEER ELECTRONIC (EUROPE) N.V . Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium

PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 501 Orchard Road, #10-00 Lane Crawford Place, Singapore 0923

© PIONEER ELECTRONIC CORPORATION 1997 T-ZE APR. 1997 Printed in Belgium

Page 2

M-5000

CONTRAST OF MISCELLANEOUS PARTS

NOTES : 0 Parts marked by "NSF" are generally unavailable because they are not in our Master Spare Parts List.
0 The A mark found on some component parts indicates the importance of the safety factor of the part
Therefore, what replacing, be sure to use parts of identical designation.
0 Screw: adjacent to Vmark on the product are usedfor disassemny

M-5000/KUXJN, KCXJN and M-980/KU have the same construction except for the following:

Mark Symbol and Description Part No. Remarks
M-980/KU M-SOOOIKUXJN M-5000IKCXJN
Side Pad No. 1 AHA7025 Not used Not used
Side Pad No. 2 AHA7026 Not used Not used
Front Pad (Protector F) Not used RHAt 226 RHAt 226 for Packing
Rear Pad (Protector R) Not used FlHA1227 RHA1227 for Packing
Packing Case AHD7154 RHGt846 RHG1848
Operating Instmctions (English) ARB704O RRB1174 RRB1174
Operating Instructions (French) Not used Not used RRC1007
NSP Chassis ANA1491 RNE1874 RNE1874
Front Panel AMB7203 RAH2822 RAH2822
Rear Panel ANC7208 RNA2190 RNA2190
NSP PCB Mold AMR1525 Not used Not used
PCB Mold Not used AMR2533 AM R2533
Binder AEOOQS Not used Not used
NSP Binder Not USed ZCA-BK1 ZCA-BK1
Screw Not used BBZSOPZSOFMC BBZSOP230FMC for the right-Power Amp Module
(Exchange Push Rivet for this
part)
Power Amp Module AXQ7022 AXQ7122 AXO7122
A AC Power Cord ADGtt46 P061015 PDG1015
Speaker Button M04071 AAD2416 M02416
65 Label ORW1069 ORW1069 Not used
A Strain Relief AEP-113 CM-ZZC CM-ZZC
NSP Warranty Card ARY1044 ARY1051 ARY1075
Spacer Not used REB1300 REB1300 No. 1

Note : The number in the remarks column correspond to the number on the EXPLODED VIEWS.

0 POWER AMP MODULE
AXQ7122 and AXQ7022 have the same construction except for the following:
P N .
Mark Symbol and Description art 0 Remarks
Axo7022 Axo7122
Heat Sink ANH7007 ANH7008
Bracket memes memos
Mold A AMR2594 AMR7005
Mold B AMR2595 AMR7006

I EXPLODED VIEWS

/®/N0.1

Bonnet Case
