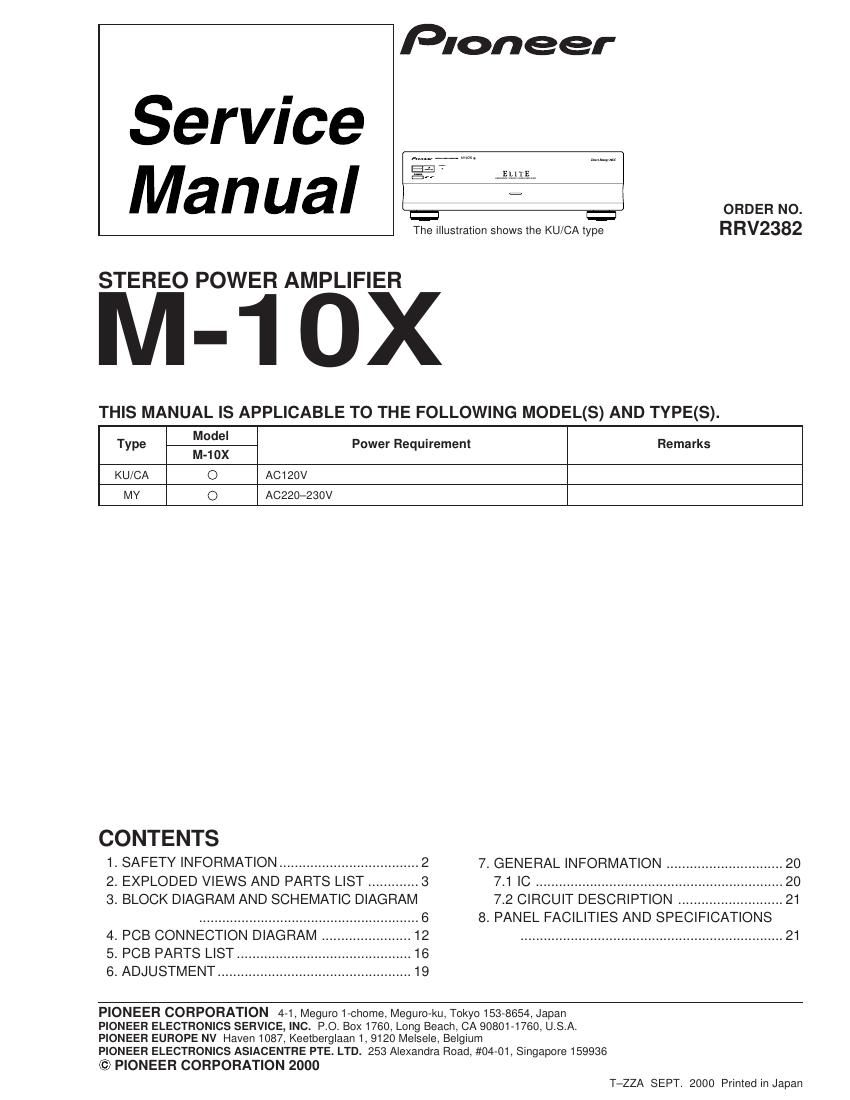

Pioneer m 10 x service manual
This is the 22 pages manual for pioneer m 10 x service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer m 10 x service manual (Ocr-read)
Page 1
M-10X 2 1. SAFETY INFORMATION 1. SAFETY PRECAUTIONS The following check should be performed for the continued protection of the customer and service technician. ANY MEASUREMENTS NOT WITHIN THE LIMITS OUTLINED ABOVE ARE INDICATIVE OF A PO- TENTIAL SHOCK HAZARD AND MUST BE COR- RECTED BEFORE RETURNING THE APPLIANCE TO THE CUSTOMER. 2. PRODUCT SAFETY NOTICE Many electrical and mechanical parts in the appli- ance have special safety related characteristics. These are often not evident from visual inspection nor the protection afforded by them necessarily can be ob- tained by using replacement components rated for voltage, wattage , etc. Replacement parts which have these special safety characteristics are identified in this Service Manual. Electrical components having such features are identified by marking with a on the schematics and on the parts list in this Service Manual. The use of a substitute replacement component which does not have the same safety characteristics as the PIONEER recommended replacement one, shown in the parts list in this Service Manual, may create shock, fire, or other hazards. Product Safety is continuously under review and new instructions are issued from time to time. For the latest information, always consult the current PIONEER Service Manual. A subscription to, or ad- ditional copies of, PIONEER Service Manual may be obtained at a nominal charge from PIONEER. LEAKAGE CURRENT CHECK Measure leakage current to a known earth ground (water pipe, conduit, etc.) by connecting a leakage current tester such as Simpson Model 229-2 or equivalent between the earth ground and all exposed metal parts of the appliance (input/output terminals, screwheads, metal overlays, control shaft, etc.). Plug the AC line cord of the appliance directly into a 120V AC 60 Hz outlet and turn the AC power switch on. Any current measured must not exceed 0.5 mA. (FOR USA MODEL ONLY) Also test with plug reversed (Using AC adapter plug as required) Device under test Test all exposed metal surfaces Earth ground Leakage current testerReading should not be above 0.5 mA AC Leakage Test REMARQUE (POUR MODéLE CANADIEN SEULEMENT) Les symboles de fusible (fusible de type rapide) et/ou (fusible de type lent) sur CCI indiquent que les pices de remplacement doivent avoir la mme dŽsignation. NOTICE (FOR CANADIAN MODEL ONLY) Fuse symbols (fast operating fuse) and/or (slow operating fuse) on PCB indicate that replacement parts must be of identical designation. This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so and refer the repair to a qualified service technician. WARNING This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California to cause cancer, birth defects or other reproductive harm. Health & Safety Code Section 25249.6 Ð Proposition 65
Page 2
M-10X 3 FRONT 12 13 Separate KU/CA type Only MY type Only MY type Separate 8 11 9 14 15 15 1 4 4 KU/CA type 2. EXPLODED VIEWS AND PARTS LIST 2.1 PACKING (1) PACKING PARTS LIST 1 Operating Instructions See Contrast table (2) 2 .................................... 3 .................................... NSP 4 Warranty Card See Contrast table (2) 5 .................................... 6 .................................... 7 .................................... 8 Side Protector L AHA7127 9 Side Protector R AHA7128 10 .................................... 11 Packing Case See Contrast table (2) NSP 12 Literature Bag AHGÐ117 13 Packing Sheet AHG1016 14 Remote Control Cord PDE1247 15 Power Cord See Contrast table (2) NOTES : Parts marked by Ò NSP Ó are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Screws adjacent to mark on the product are used for disassembly. Mark No. Description Part No. Mark KU/CA type MY type M-10X/KU/CA and MY are constructed the same except for the following: 1 Operating Instructions (English) ARC7331 Not used 1 Operating Instructions Not used ARC7332 (English/French/German/Italian/ Dutch/Swedish/Spanish/Portuguese) NSP 4 Warranty Card ARY1026 ARY7022 11 Packing Case AHD7946 AHD7947 15 Power Cord ADG7021 ADG1154 Part No. Remarks Symbol and Description No. (2) CONTRAST TABLE ACCESSORIES Power cord (ADG1154) (For MY type)Remote Control Cord (PDE1247) (L= 1 m)Operating Instructions (ARC7331: KU/CA type) (ARC7332: MY type) Warranty Card Black Power cord (ADG7021) (For KU/CA type)
