This is the 83 pages manual for pioneer kehp 8900 r schematic.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 83
pioneer kehp 8900 r schematic

Extracted text from pioneer kehp 8900 r schematic (Ocr-read)

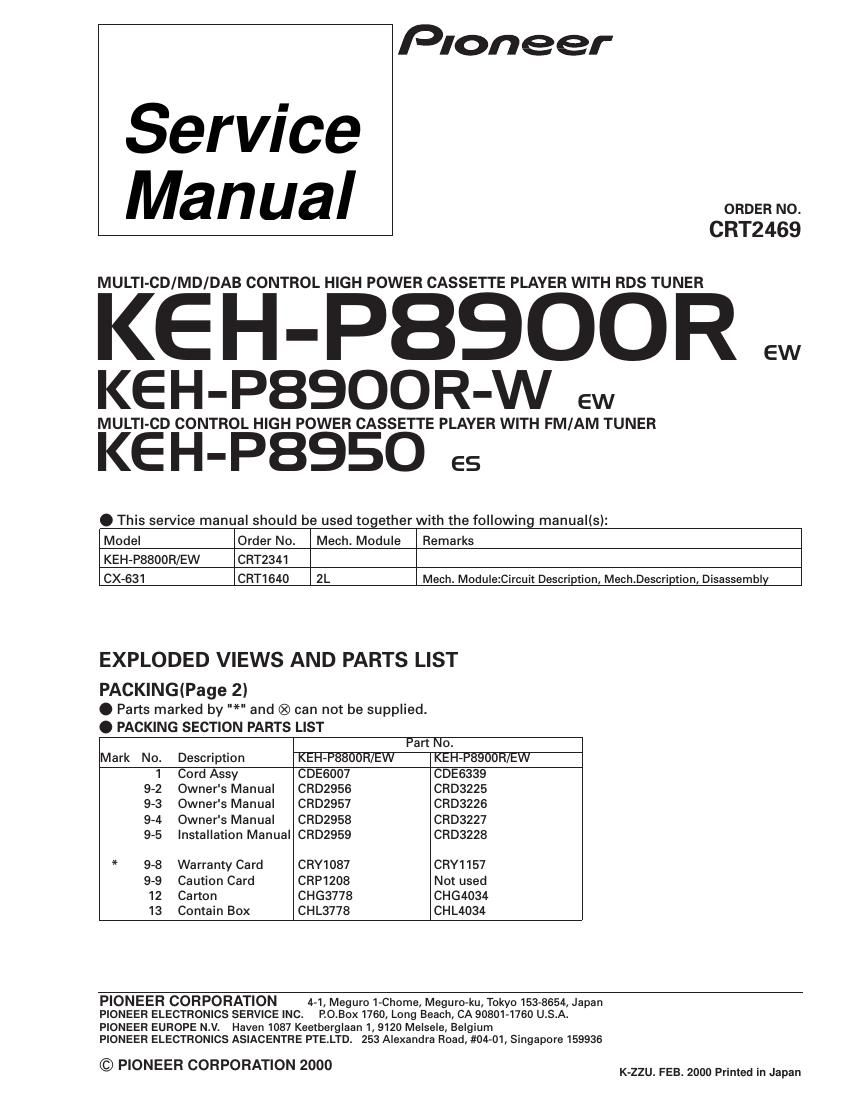

Page 1

Service
Manual

Pioneer

ORDER NO.

CRT2469

MULTI-CD/MD/DAB CONTROL HIGH POWER CASSETTE PLAYER WITH RDS TUNER

KEH-PBSOOR 6w

KEH-PBSOOR-W ew

MULTI-CD CONTROL HIGH POWER CASSETTE PLAYER WITH FM/AM TUNER

KEH-PBSSO es

. This service manual should be used together with the following manual(s):

Model Order No. Mech. Module Remarks
KEHP8800R/EW CRT234I
CX»63I CRTIB40 2L Mech. Module:Circuit Description, MechDescription, Disassembly

EXPLODED VIEWS AND PARTS LIST

PACKINGlPage 2)

. Parts marked by "*" and ()9 can not be supplied.
. PACKING SECTION PARTS LIST

Part No.
Mark No. Description KEH-P8800R/EW KEH»P8900R/EW

1 Cord Assy CDE6007 CDE6339

9-2 Owner's Manual CRD2956 CRD3225

9-3 Owner's Manual CRD2957 CRD3226

9-4 Owner's Manual CRD2958 CRD3227

9-5 Installation Manual CRD2959 CRD3228

* 9-8 Warranty Card CRY1087 CRY1157

9-9 Caution Card CRP1208 Not used

12 Carton CH63778 CHG4034

13 Contain Box CHL3778 CHL4034
PIONEER CORPORATION 4-1, Meguro 1-Chome, Megum»ku, Tokyo 153-8654, Japan

PIONEER ELECTRONICS SERVICE INC.

P.O.Box 1760, Long Beach, CA 90801-1760 USA

PIONEER EUROPE N.V. Haven 1087 Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE.LTD. 253 Alexandra Road, #0401, Singapore 159936

© PIONEER CORPORATION 2000

K-ZZU. FEB. 2000 Printed in Japan
