Pioneer kehp 8015 service manual
This is the 71 pages manual for pioneer kehp 8015 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer kehp 8015 service manual (Ocr-read)

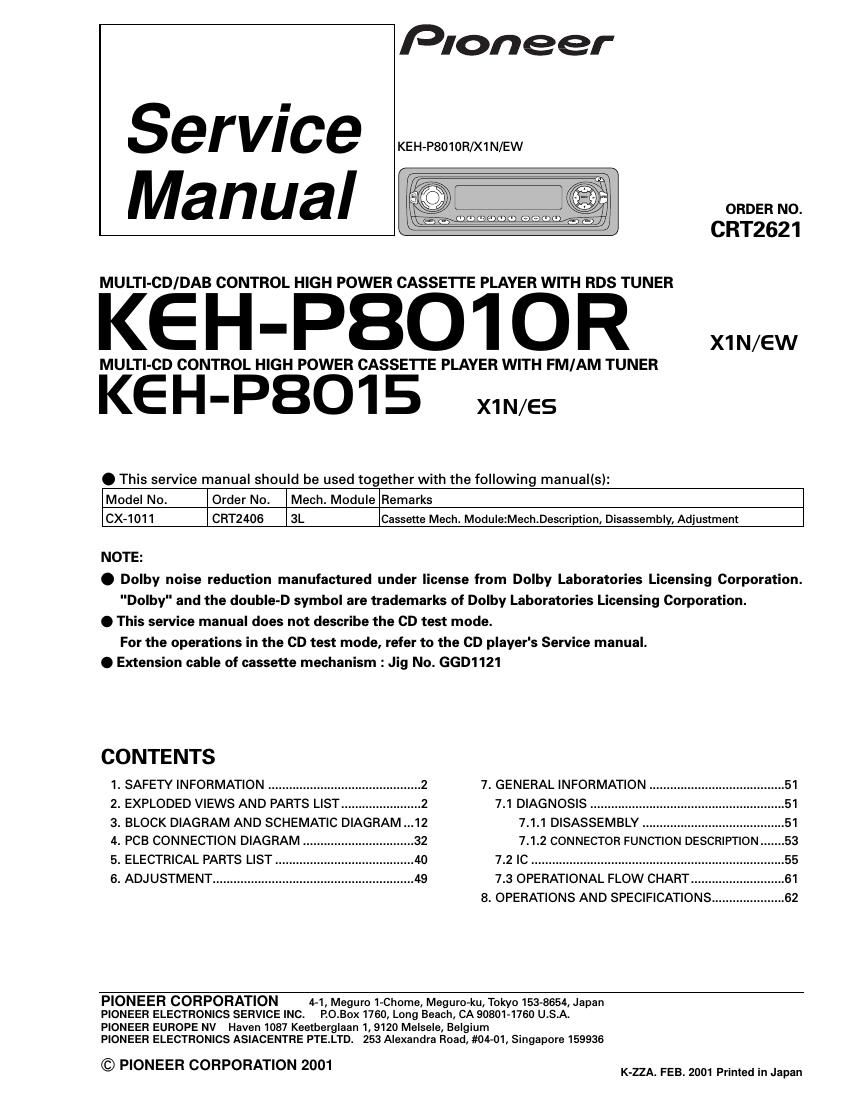

Page 1
Pioneer
Service
Manual
MULTI-CD/DAB CONTROL HIGH POWER CASSETTE PLAYER WITH RDS TUNER
KEH-PBO1OR mew
MULTI-CD CONTROL HIGH POWER CASSETTE PLAYER WITH FM/AM TUNER
KEH-P8015 x1N/es
. This service manual should be used together with the following manual(s):
ORDER NO.
CRT2621
Model No. Order No. Mech. Module Remarks
CX»10I'I CRT2406 3L Cassette Mech. Module:Mech.Description, Disassembly, Adjustment
NOTE:
. Dolby noise reduction manufactured under license from Dolby Laboratories Licensing Corporation.
"Dolby" and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation.
0 This service manual does not describe the CD test mode.
For the operations in the CD test mode, refer to the CD player's Service manual.
0 Extension cable of cassette mechanism : Jig No. GGD1121
CONTENTS
1. SAFETY INFORMATION ........................ ..2 7. GENERAL INFORMATION
2. EXPLODED VIEWS AND PARTS LIST... ..2 7.1 DIAGNOSIS .................
3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM ...12 7.1.1 DISASSEMBLY ......................................... 51
4. PCB CONNECTION DIAGRAM ................................ 32 7.1.2 CONNECTOR FUNCTION DESCRIPTION ....... 53
5. ELECTRICAL PARTS LIST ....40 7.2 lC .................................................
6. ADJUSTMENT .................. 7.3 OPERATIONAL FLOW CHART...
8. OPERATIONS AND SPECIFICATIONS ..................... 62
PIONEER CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE INC. P.O.Box 1760, Long Beach, CA 90801-1760 U.S.A.
PIONEER EUROPE NV Haven 1087 Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE.LTD. 253 Alexandra Road, #0401, Singapore 159936
© PIONEER CORPORATION 2001 K-ZZA. FEB. 2001 Primed in Japan
Page 2
Service
Manual
Pioneer
ORDER NO.
CRT2675
MULTI-CD/DAB CONTROL HIGH POWER CASSETTE PLAYER WITH RDS TUNER
KEH-PBO1OR mew
. This service manual should be used together with the manual(s) listed below. For the parts numbers,
adjustments, etc. which are not shown in this manual, refer to the following manual(s).
Model No. Order No. Mech. Module Remarks
KEH-P8010R/X1N/EW CRT262I
CX-1011 CRT2406 3L Cassette Mech. Module:Mech.DescripIion, Disassembly, Adjustment
