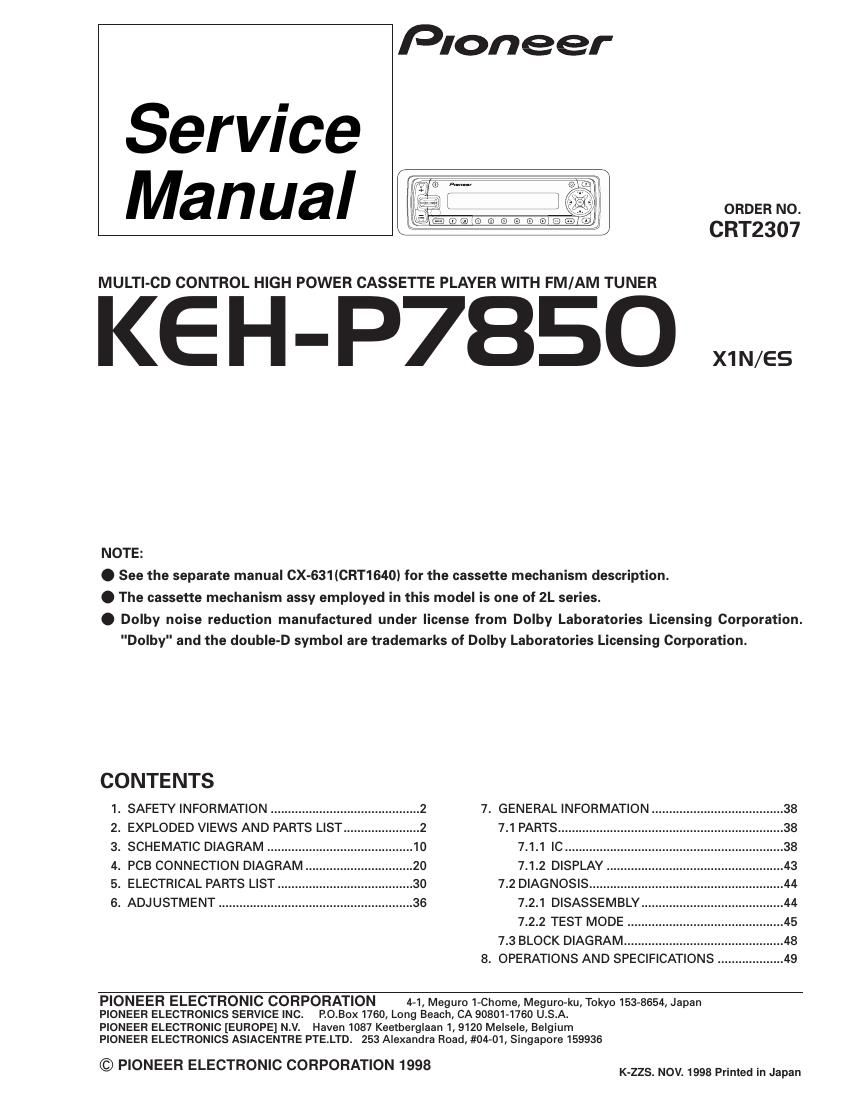

Pioneer kehp 7850 service manual
This is the 54 pages manual for pioneer kehp 7850 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer kehp 7850 service manual (Ocr-read)
Page 1
2 KEH-P7850 2. EXPLODED VIEWS AND PARTS LIST 2.1 PACKING 20 19 15 12 16 17 4 7 11310 98 6 5 2 14 18 13 1 1. SAFETY INFORMATION This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so and refer the repair to a qualified service technician.
Page 2
3 KEH-P7850 1 Cord Assy CDE5758 * 2 Accessory Assy CEA2350-/N 3 Spring CBH1650 4 Screw Assy CEA2351 5 Screw CBA1304 * 6 Polyethylene Bag CEG-127 7 Screw CRZ50P090FMC 8 Screw TRZ50P080FMC * 9 Polyethylene Bag CEG-158 10 Handle CNC5395 11 Bush CNV3930 12 Polyethylene Bag CEG-162 13 Battery CEX1030 14 Carton CHG3552 15 Contain Box CHL355216 Protector CHP2101 17 Protector CHP2102 18 Remote Control Assy CXB3456 19 Case CXB3520 20-1 Owners Manual CRD2762 20-2 Owners Manual CRD2763 20-3 Installation Manual CRD2764 Mark No. Description Part No. Mark No. Description Part No. - PACKING SECTION PARTS LIST NOTE: -Parts marked by * are generally unavailable because they are not in our Master Spare Parts List. -Screws adjacent to Ñmark on the product are used for disassembly. -Owner's Manual, Installation Manual Model Part No. Language KEH-P7850/X1N/ES CRD2762 English, Spanish, Portuguese(B) CRD2763 Chinese, Arabic CRD2764 English, Spanish, Portuguese(B), Chinese, Arabic
