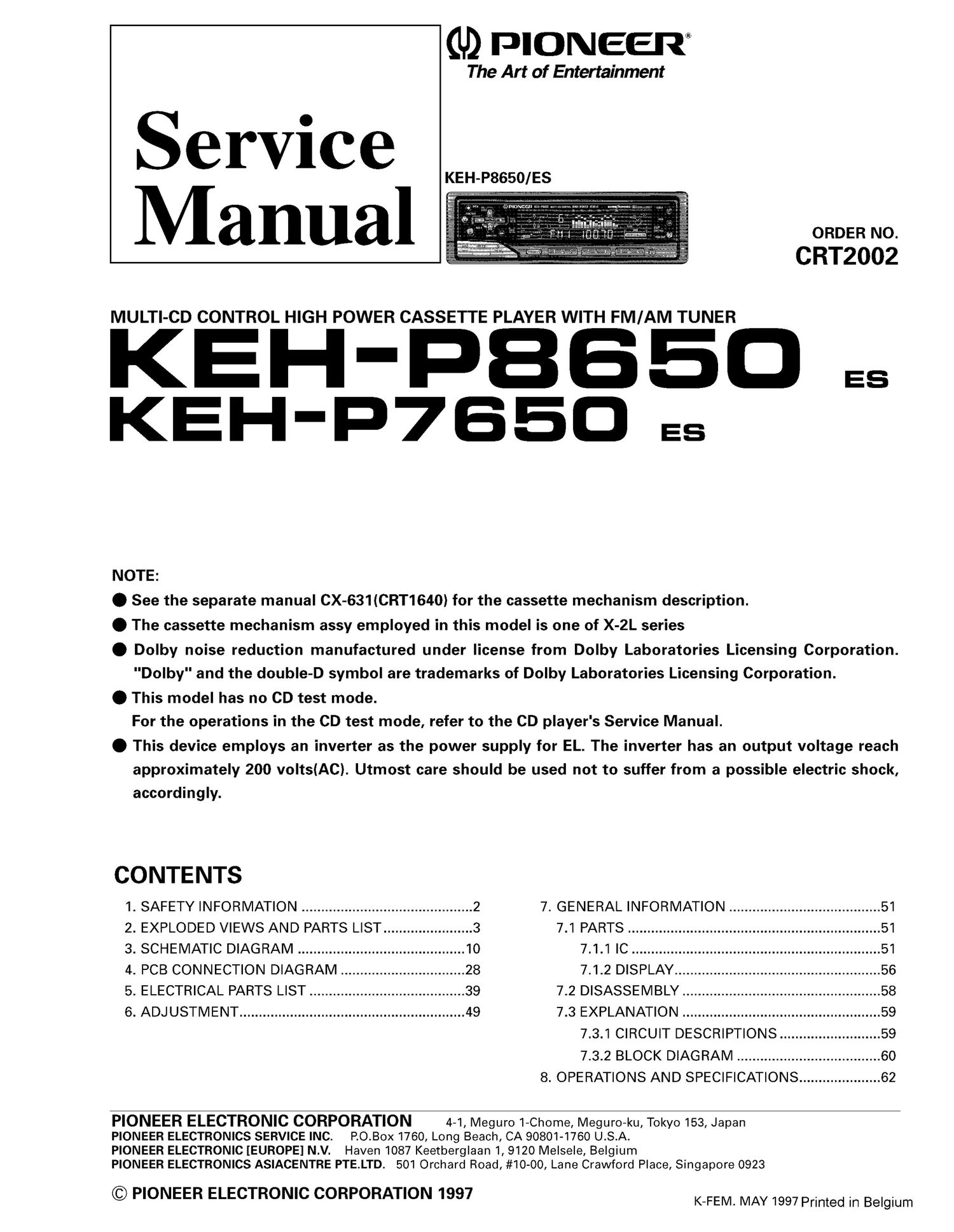

Page 1
(U) PIONEEIT
The Art of Entertainment
Service
KEH-P8650/ES
ORDER NO.
CRTZOOZ
MULTI-CD CONTROL HIGH POWER CASSETTE PLAYER WITH FM/AM TUNER
KEH-PIGED Es
KEH-P7650 .5
NOTE:
0 See the separate manual CX-631ICRT1640) for the cassette mechanism description.
0 The cassette mechanism assy employed in this model is one of X-2L series
. Dolby noise reduction manufactured under license from Dolby Laboratories Licensing Corporation.
"Dolby" and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation.
0 This model has no CD test mode.
For the operations in the CD test mode, refer to the CD player's Service Manual.
0 This device employs an inverter as the power supply for EL. The inverter has an output voltage reach
approximately 200 voltsIACI. Utmost care should be used not to suffer from a possible electric shock,
accordingly.
CONTENTS
1. SAFE Y INFORMATION ............................................ 2 7. GENERAL INFORMA ION ....................................... 51
2. EXPLODED VIEWS AND PARTS LIST ....................... 3 7.1 PARTS ................................................................. 51
3. SCHEMATIC DIAGRAM ........................................... 10 7.1.1 IC ................................................................ 51
4. PCB CONNECTION DIAGRAM ................................ 28 7.1.2 DISPLAY ..................................................... 56
5. ELECTRICAL PARTS LIST ........................................ 39 7.2 DISASSEMBLY ................................................... 58
6. ADJUSTMENT .......................................................... 49 7.3 EXPLANATION ................................................... 59
7.3.1 CIRCUIT DESCRIPTIONS .......................... 59
7.3.2 BLOCK DIAGRAM ..................................... 60
8. OPERATIONS AND SPECIFICATIONS ..................... 62
PIONEER ELECTRONIC CORPORATION 4-1,Meguro 1-Chome, Meguro-ku, Tokyo 153, Japan
PIONEER ELECTRONICS SERVICE INC. P.O.Box 1760, Long Beach, CA 90801-1760 USA.
PIONEER ELECTRONIC [EUROPE] N.V. Haven 1087 Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE.LTD. 501 Orchard Road, #10-00, Lane Crawford Place, Singapore 0923
© PIONEER ELECTRONIC CORPORATION 1997 HEM IVIAY1997Printed in Belgium
