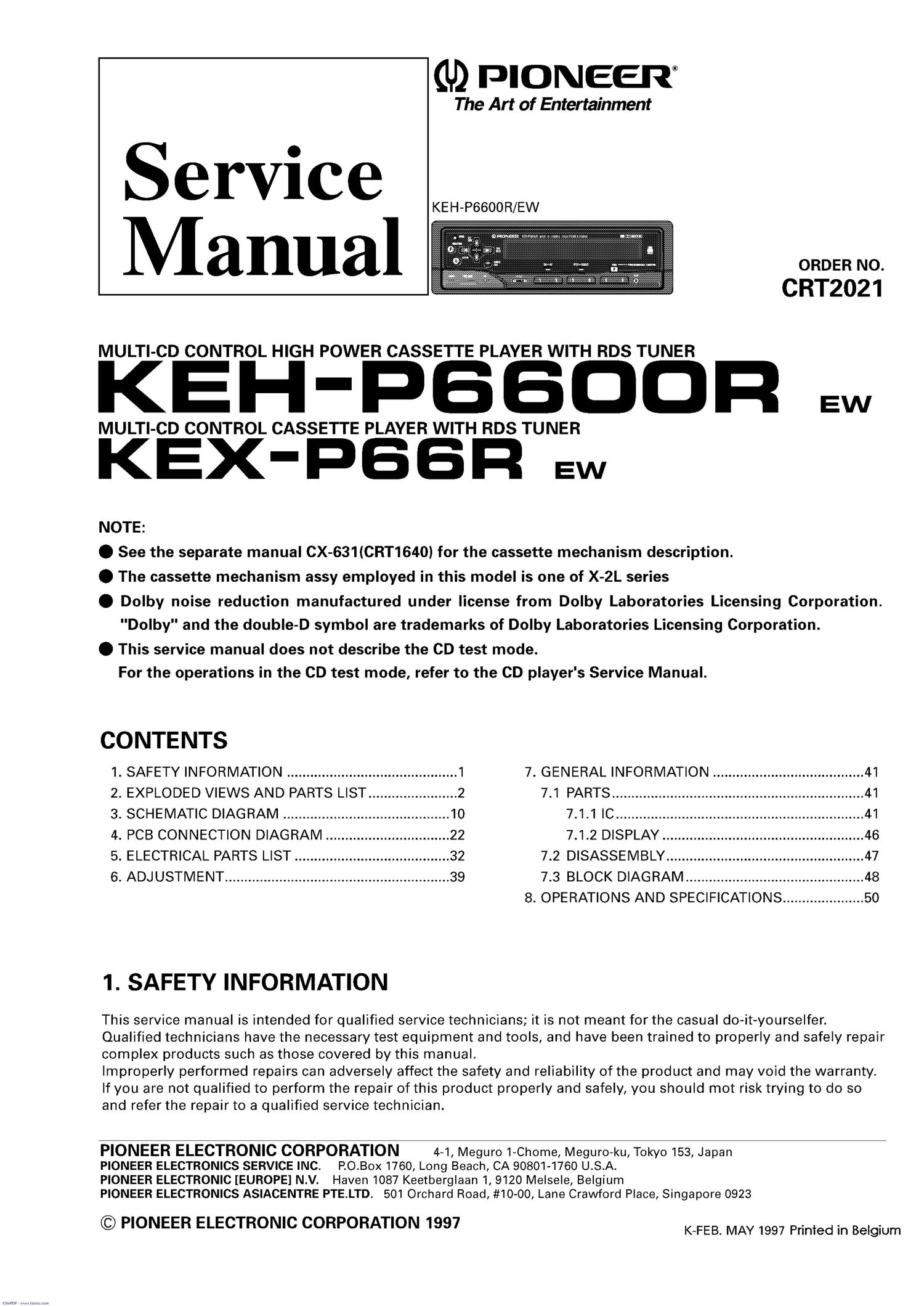

Page 1

CIibPDF - www.fasl ooooooo

(U) PIONEEIT

The Art of Entertainment

ervice
anual

MULTI-CD CONTROL HIGH POWER CASSETTE PLAYER WITH RDS TUNER

KEH-mm EW

MULTI-CD CONTROL CASSETTE PLAYER WITH RDS TUNER

KEX-PBBFI Ew

NOTE:
0 See the separate manual CX-631ICRT1640) for the cassette mechanism description.

ORDER NO.

CRT2021

O The cassette mechanism assy employed in this model is one of X-2L series
. Dolby noise reduction manufactured under license from Dolby Laboratories Licensing Corporation.
"Dolby" and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation.

0 This service manual does not describe the CD test mode.
For the operations in the CD test mode, refer to the CD player's Service Manual.

CONTENTS
1. SAFETY INFORMATION ............................................ 1 7. GENERAL INFORMATION ....................................... 41
2. EXPLODED VIEWS AND PARTS LIST ....................... 2 7.1 PARTS ................................................................. 41
3. SCHEMATIC DIAGRAM ........................................... 10 7.1.1 IC ................................................................ 41
4. PCB CONNECTION DIAGRAM ................................ 22 7.1.2 DISPLAY .................................................... 46
5. ELECTRICAL PARTS LIST ........................................ 32 7.2 DISASSEMBLY ................................................... 47
6. ADJUS MENT .......................................................... 39 7.3 BLOCK DIAGRAM .............................................. 48

8. OPERATIONS AND SPECIFICATIONS ..................... 50

1. SAFETY INFORMATION

This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer.
Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair
complex products such as those covered by this manual.

Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty.
If you are not qualified to perform the repair of this product properly and safely, you should mot risk trying to do so
and refer the repair to a qualified service technician.

PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153, Japan
PIONEER ELECTRONICS SERVICE INC. P.O.Box 1760, Long Beach, CA 90801-1760 U.S.A.

PIONEER ELECTRONIC [EUROPE] N.V. Haven 1087 Keetberglaan 1, 9120 Melsele, Belgium

PIONEER ELECTRONICS ASIACENTRE PTE.LTD. 501 Orchard Road, #10-00, Lane Crawford Place, Singapore 0923

© PIONEER ELECTRONIC CORPORATION 1997 K-FEB. MAY 1997 Printed in Belgium

Page 2

KEH-PESOOFI, KEX-PBBFI

2. EXPLODED VIEWS AND PARTS LIST
2.1 PACKING

NOTE:

0 Parts marked by " >l< "are generally unavailable because they are not in our Master Spare Parts List.

0 Screws adjacent to V mark on the product are used for disassembly.

. Parts List
Part No.
Mark No. Description _ KEH-P6600R/EW KEX-P66R/EW
1 Carton CH63340 C-IGBZQB
2-1 Owner's Manual CRD2364 CRD2364
2-2 Installation Manual CRD2367 CRD2378
2-3 Owner's Manual CRD2366 C%D2366
2-4 Owner's Manual CRD2365 C3D2365
>1: 2-5 Warranty Card CRY1087 CRY1087
2-6 Passport CRY1013 CRY1013
2-7 Polyethylene Bag CEG1116 CEGl116
3 Polyethylene Bag CEO-162 CEG-162
4 Protector CHP1687 CHP1687
5 Protector CHP1688 CHP1688
6 Case Assy CXA7194 CXA7194
7 Cord Assy CDE5320 CDE532I
8 Accessory Assy CEA2065 CEA2065
9 Contain Box CHL3340 CHL3296
10 Air Cushioned Bag CEG1192 CEG1192

CIibPDF - www.fasl ooooooo

Fig. 1
