Pioneer kehp 6020 r service manual
This is the 53 pages manual for pioneer kehp 6020 r service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer kehp 6020 r service manual (Ocr-read)
Page 1

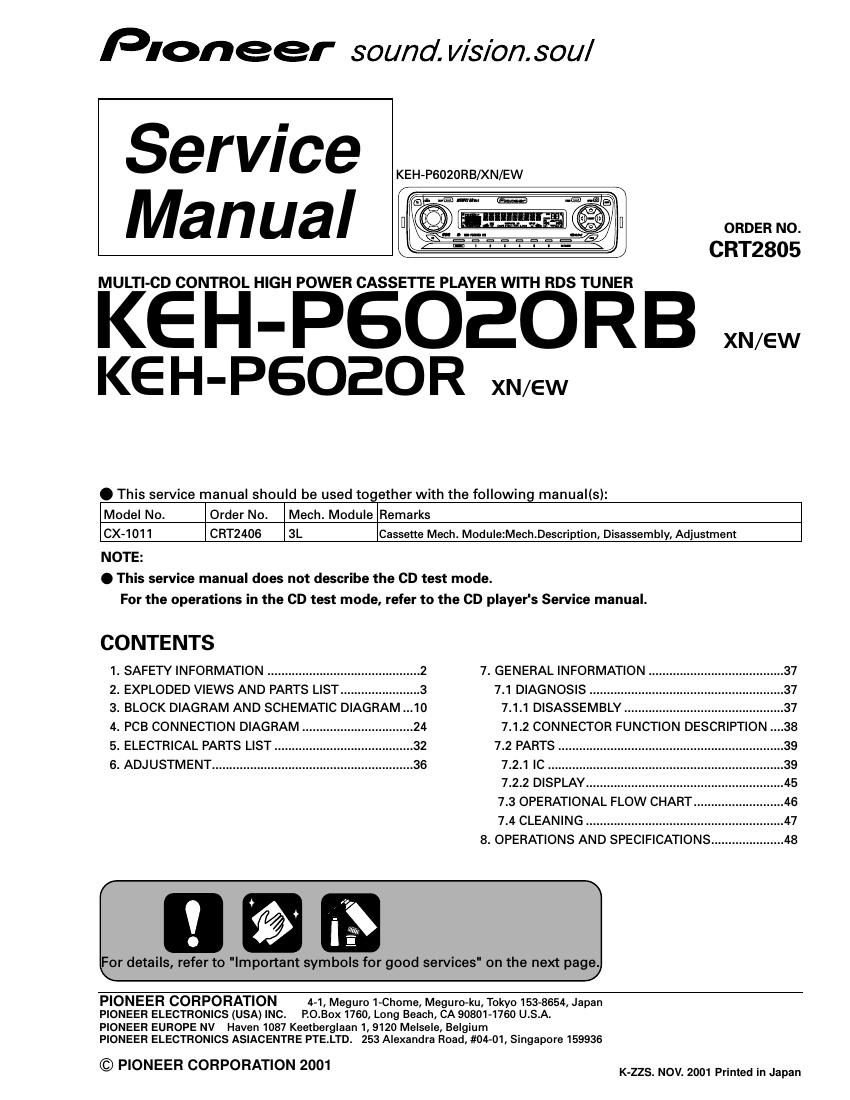

2 KEH-P6020RB,P6020R 1. SAFETY INFORMATION This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so and refer the repair to a qualified service technician. [ Important symbols for good services ]In this manual, the symbols shown-below indicate that adjustments, settings or cleaning should be made securely. When you find the procedures bearing any of the symbols, be sure to fulfill them: 2. Adjustments To keep the original performances of the product, optimum adjustments or specification confirmation is indispensable. In accordance with the procedures or instructions described in this manual, adjustments should be performed. 3. Cleaning For optical pickups, tape-deck heads, lenses and mirrors used in projection monitors, and other parts requiring cleaning, proper cleaning should be performed to restore their performances. 5. Lubricants, glues, and replacement parts Appropriately applying grease or glue can maintain the product performances. But improper lubrication or applying glue may lead to failures or troubles in the product. By following the instructions in this manual, be sure to apply the prescribed grease or glue to proper portions by the appropriate amount.For replacement parts or tools, the prescribed ones should be used. 4. Shipping mode and shipping screws To protect the product from damages or failures that may be caused during transit, the shipping mode should be set or the shipping screws should be installed before shipping out in accordance with this manual, if necessary. 1. Product safety You should conform to the regulations governing the product (safety, radio and noise, and other regulations), and should keep the safety during servicing by following the safety instructions described in this manual.
Page 2
3 KEH-P6020RB,P6020R 2. EXPLODED VIEWS AND PARTS LIST 2.1 PACKING 10 112 6 8 9 11 4 3 5 2 13 14 15 167 1 Cord Assy CDE6435 2 Screw CBA1002 3 Handle CNC5395 4 Bush CNV3930 * 5 Polyethylene Bag E36-615 6 Polyethylene Bag CEG-162 7-1 Polyethylene Bag CEG1116 7-2 Owners Manual CRD3537 7-3 Owners Manual CRD3538 7-4 Installation Manual CRD3553 * 7-5 Passport CRY1013 * 7-6 Warranty Card CRY1157 8 Carton See Contrast table(2) 9 Contain Box See Contrast table(2) 10 Protector CHP225111 Protector CHP2252 12 Case Assy CXB3520 13 Screw BPZ20P060FZK 14 Accessory Assy CEA3062 15 Earth Plate CNC9450 16 Inner Box CHW1754 Mark No. Description Part No. Mark No. Description Part No. (1) PACKING SECTION PARTS LIST NOTE: -Parts marked by * are generally unavailable because they are not in our Master Spare Parts List. -Screws adjacent to ∇mark on the product are used for disassembly. -For the applying amount of lubricants or glue, follow the instructions in this manual. ( In the case of no amount instructions, apply as you think it appropriate.)
