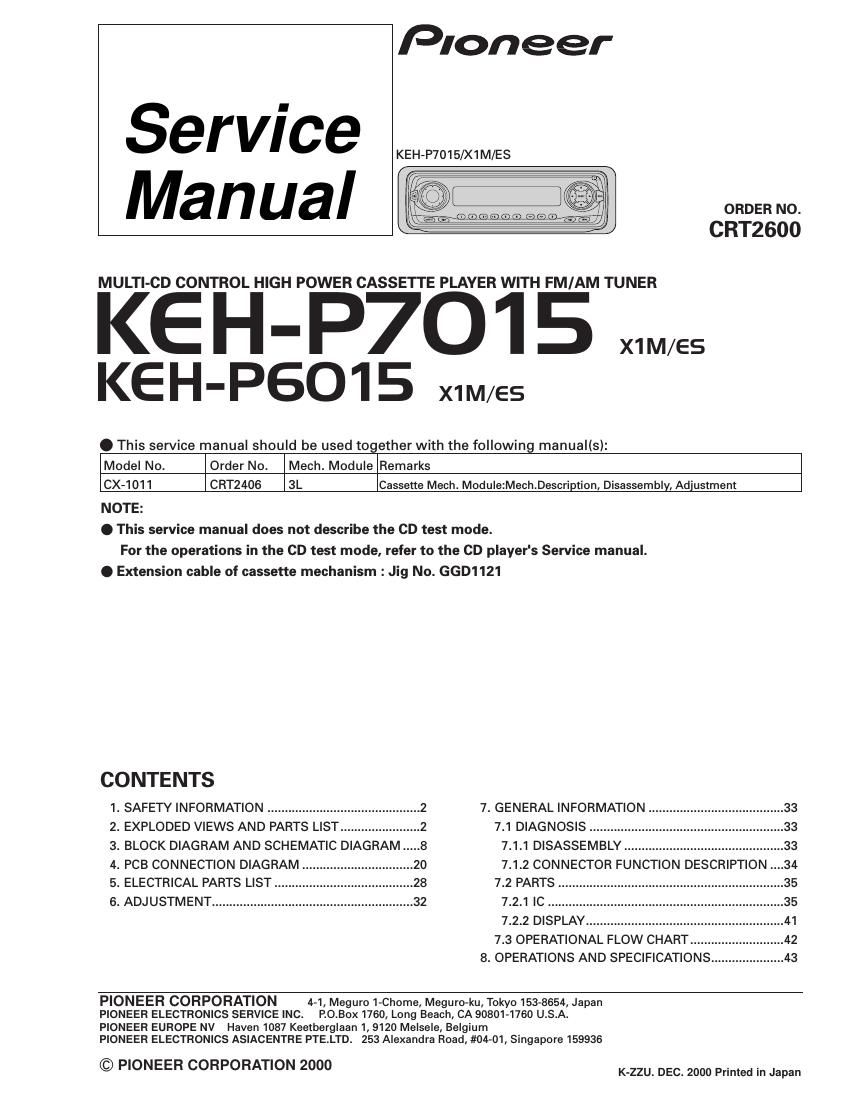

Pioneer kehp 6015 service manual
This is the 49 pages manual for pioneer kehp 6015 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer kehp 6015 service manual (Ocr-read)
Page 1
2 KEH-P7015,P6015 2. EXPLODED VIEWS AND PARTS LIST 2.1 PACKING 1. SAFETY INFORMATION This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely; you should not risk trying to do so and refer the repair to a qualified service technician. 4 7 11310 98 6 5 16 217 1215 14 131 19 20 18
Page 2
3 KEH-P7015,P6015 Mark No. Description Part No. Mark No. Description Part No. -PACKING SECTION PARTS LIST NOTE: -Parts marked by * are generally unavailable because they are not in our Master Spare Parts List. -Screws adjacent to ∇mark on the product are used for disassembly. 1-1 Polyethylene Bag CEG1116 1-2 Owners Manual CRD3336 1-3 Owners Manual CRD3337 1-4 Installation Manual CRD3344 * 1-5 Caution Card CRP1241 2 Cord Assy CDE6436 3 Spring CBH1650 * 4 Screw Assy CEA2396 5 Screw CBA1002 * 6 Polyethylene Bag CEG-127 7 Screw CRZ50P090FMC 8 Screw TRZ50P080FMC 9 Polyethylene Bag CEG-158 10 Handle CNC5395 11 Bush CNV393012 Polyethylene Bag CEG-162 13 Carton(P7015) CHG4201 Carton(P6015) CHG4202 14 Contain Box(P7015) CHL4201 Contain Box(P6015) CHL4202 15 Protector CHP2243 16 Protector CHP2244 17 Case Assy CXB3520 * 18 Accessory Assy CEA2395 19 Remote Control Unit(P7015) CXB6796 * 20 Battery(P7015) CEX1065 -Owner's Manual, Installation Manual Model Part No. Language KEH-P7015/X1M/ES CRD3336 English, Spanish, Portuguese(B) KEH-P6015/X1M/ES CRD3337 Chinese,Arabic CRD3344 English, Spanish, Portuguese(B) Chinese,Arabic
