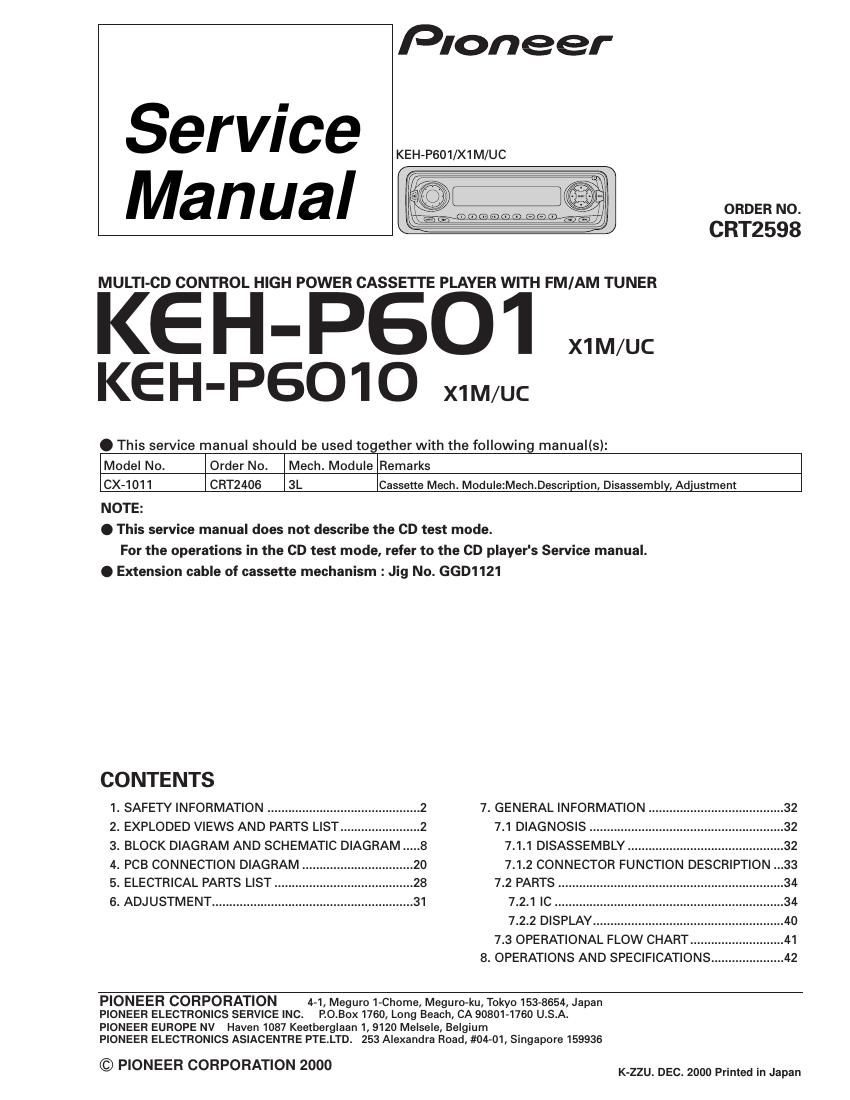

Pioneer kehp 601 service manual
This is the 48 pages manual for pioneer kehp 601 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer kehp 601 service manual (Ocr-read)
Page 1
2 KEH-P601,P6010 2. EXPLODED VIEWS AND PARTS LIST 2.1 PACKING 4 7 11310 98 6 5 16 217 1215 14 131 18 19 20 21 22 1. SAFETY INFORMATION CAUTION This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely; you should not risk trying to do so and refer the repair to a qualified service technician. W ARNING This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California to cause cancer, birth defects or other reproductive harm. Health & Safety Code Section 25249.6 - Proposition 65
Page 2
3 KEH-P601,P6010 1-1 Polyethylene Bag CEG1116 1-2 Owners Manual(P601) CRD3342 Owners Manual(P6010) CRD3341 1-3 Installation Manual(P601) CRD3347 Installation Manual (P6010) CRD3346 * 1-4 Warranty Card(P601) CRY1070 * 1-5 Caution Card(P601) CRP1242 2 Cord Assy CDE6436 3 Spring CBH1650 4 Screw Assy CEA2796 5 Screw CBA1002 * 6 Polyethylene Bag CEG-127 7 Screw CRZ50P090FMC 8 Screw TRZ50P080FMC 9 Polyethylene Bag CEG-15810 Handle CNC5395 11 Bush CNV3930 12 Polyethylene Bag CEG1173 13 Carton(P601) CHG4206 Carton(P6010) CHG4205 14 Contain Box(P601) CHL4206 Contain Box(P6010) CHL4205 15 Protector CHP2243 16 Protector CHP2244 17 Case Assy CXB3520 18 Screw BPZ20P060FZK 19 Remote Control Unit CXB6796 20 Battery CEX1065 21 Accessory Assy CEA2773 22 Earth Plate CNC9450 Mark No. Description Part No. Mark No. Description Part No. -PACKING SECTION PARTS LIST NOTE: -Parts marked by * are generally unavailable because they are not in our Master Spare Parts List. -Screws adjacent to ∇mark on the product are used for disassembly. -Owner's Manual, Installation Manual Model Part No. Language KEH-P601/X1M/UC CRD3342,CRD3341 English, French KEH-P6010/X1M/UC CRD3347,CRD3346 English, French
