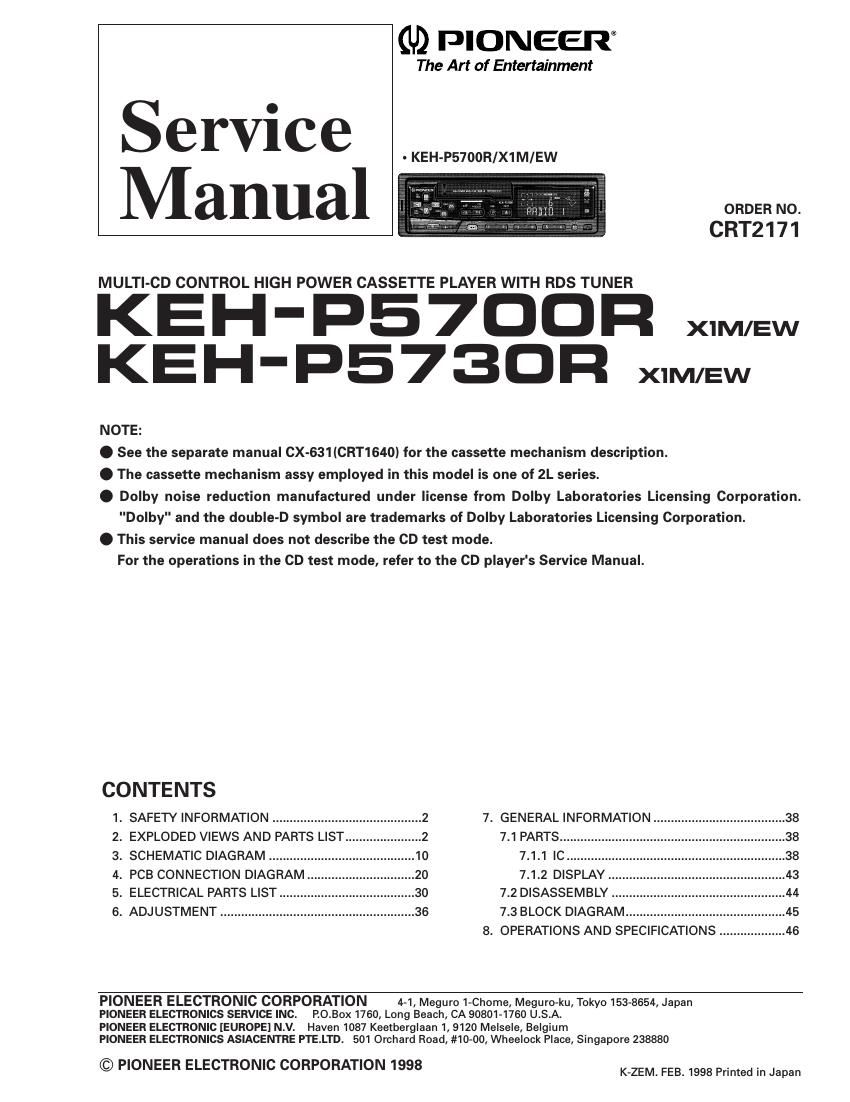

Page 1
(U) PIONEER
The Art of Entertainment
ervice
Manual
MULTI-CD CONTROL HIGH POWER CASSETTE PLAYER WITH RDS TUNER
KEH'F57DDR XIM/Ew
KEH'P5730R XIM/EW
NOTE:
. See the separate manual CX-631(CRT1640) for the cassette mechanism description.
- KEH-P5700R/X1M/EW
ORDER NO.
CRT2171
. The cassette mechanism assy employed in this model is one of 2L series.
. Dolby noise reduction manufactured under license from Dolby Laboratories Licensing Corporation.
"Dolby" and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation.
. This service manual does not describe the CD test mode.
For the operations in the CD test mode, refer to the CD player's Service Manual.
CONTENTS
1. SAFETY INFORMATION ........................................... 2 7. GENERAL INFORMATION ...................................... 38
2. EXPLODED VIEWS AND PARTS LIST. ...2 7.1 PARTS...
3. SCHEMATIC DIAGRAM ....................... .10 7.1.1 IC..
4. PCB CONNECTION DIAGRAM.. .20 7.1.2 DISPLAY .....
5. ELECTRICAL PARTS LIST .......... .30 7.2 DISASSEMBLY
6. ADJUSTMENT ........................................................ 36 7.3 BLOCK DIAGRAM .............................
8. OPERATIONS AND SPECIFICATIONS ..
PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Megur0»ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE INC. ROBOX 1760, Long Beach, CA 90801-1760 U.S.A.
PIONEER ELECTRONIC [EUROPE] N.V. Haven 1087 Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE.LTD. 501 Orchard Road, #1000, Wheelock Place, Singapore 238880
© PIONEER ELECTRONIC CORPORATION 1998 HEM FEB. 1998 Primed in Japan
Page 2
KEH-P57DDFIJ35730R
1. SAFETY INFORMATION
This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer.
Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair
complex products such as those covered by this manual.
Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty.
If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so
and refer the repair to a qualified service technician.
2. EXPLODED VIEWS AND PARTS LIST
2.1 PACKING
12,15,16,17
