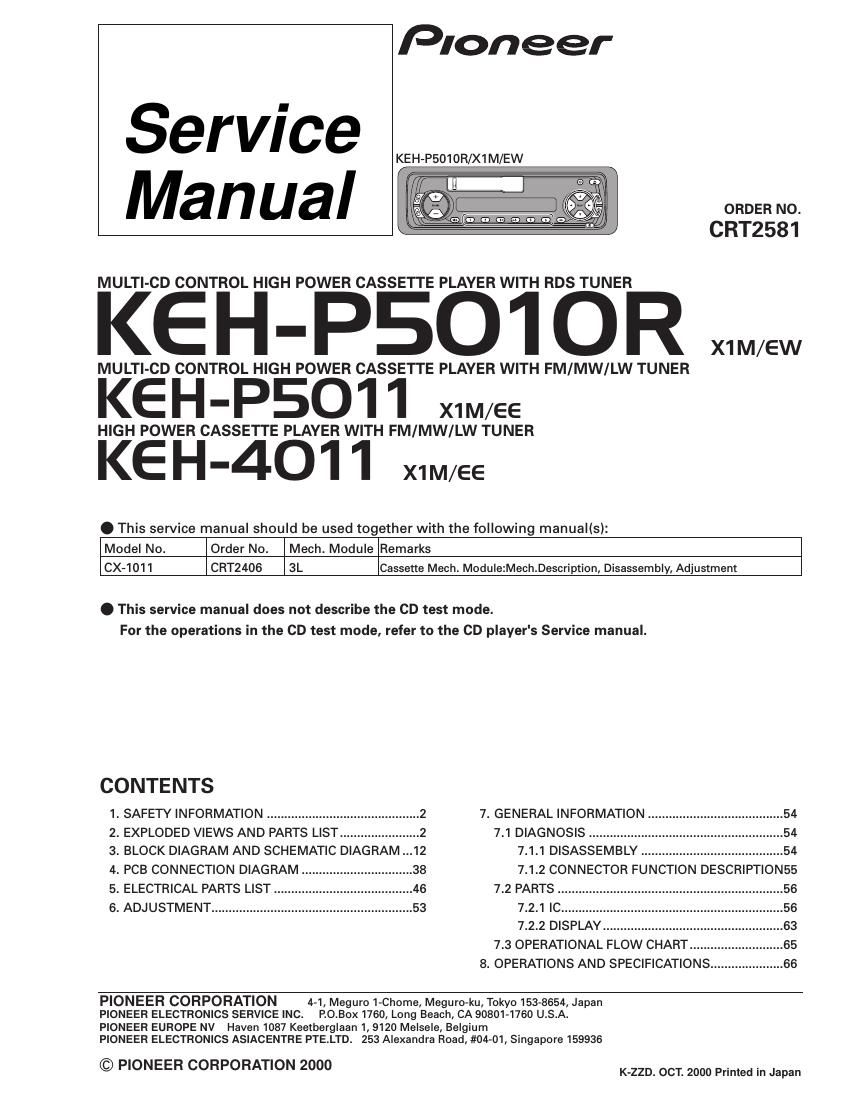

Page 1
Pioneer
Service
Manual
MULTI-CD CONTROL HIGH POWER CASSETTE PLAYER WITH RDS TUNER
KEH-P501 OR W...
MULTI-CD CONTROL HIGH POWER CASSETTE PLAYER WITH FM/MW/LW TUNER
KEH-P5011 x1M/ee
HIGH POWER CASSETTE PLAYER WITH FM/MW/LW TUNER
KEH-401 1 x1M/ee
. This service manual should be used together with the following manual(s):
Model No. Order No. Mesh. Module Remarks
CX-1011 CRT2406 3L Cassette Mech. Module:Mech.Description, Disassembly, Adjustment
KEH-P5010R/X1M/EW
ORDER NO.
CRT2581
. This service manual does not describe the CD test mode.
For the operations in the CD test mode, refer to the CD player's Service manual.
CONTENTS
1. SAFETY INFORMATION ........................ 7. GENERAL INFORMATION. ..... 54
2. EXPLODED VIEWS AND PARTS LIST... 7.1 DIAGNOSIS ....................... 54
3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM .12 7.1.1 DISASSEMBLY ......................................... 54
4. PCB CONNECTION DIAGRAM 7.1.2 CONNECTOR FUNCTION DESCRIPTION55
5. ELECTRICAL PARTS LIST ...46 7.2 PARTS. .56
6. ADJUSTMENT ...................... 7.2.1 IC... .56
7.2.2 DISPLAY ..... 63
7.3 OPERATIONAL FLOW CHART ................ 65
8. OPERATIONS AND SPECIFICATIONS .......... 66
PIONEER CORPORATION 4-1, Meguro 1-Chome, Meguro»ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE INC. R0.Box 1760, Long Beach, CA 90801-1760 U.S.A.
PIONEER EUROPE NV Haven 1087 Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE.LTD. 253 Alexandra Road, #0401, Singapore 159936
© PIONEER CORPORATION 2000 K-ZZD. OCT. 2000 Printed in Japan
Page 2
KEH-P501OR.P5011.4011
1. SAFETY INFORMATION
This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer.
Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair
complex products such as those covered by this manual.
Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty.
If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so
and refer the repair to a qualified service technician.
2. EXPLODED VIEWS AND PARTS LIST
2.1 PACKING
12
Q5
