Pioneer kehp 4650 service manual
This is the 56 pages manual for pioneer kehp 4650 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer kehp 4650 service manual (Ocr-read)

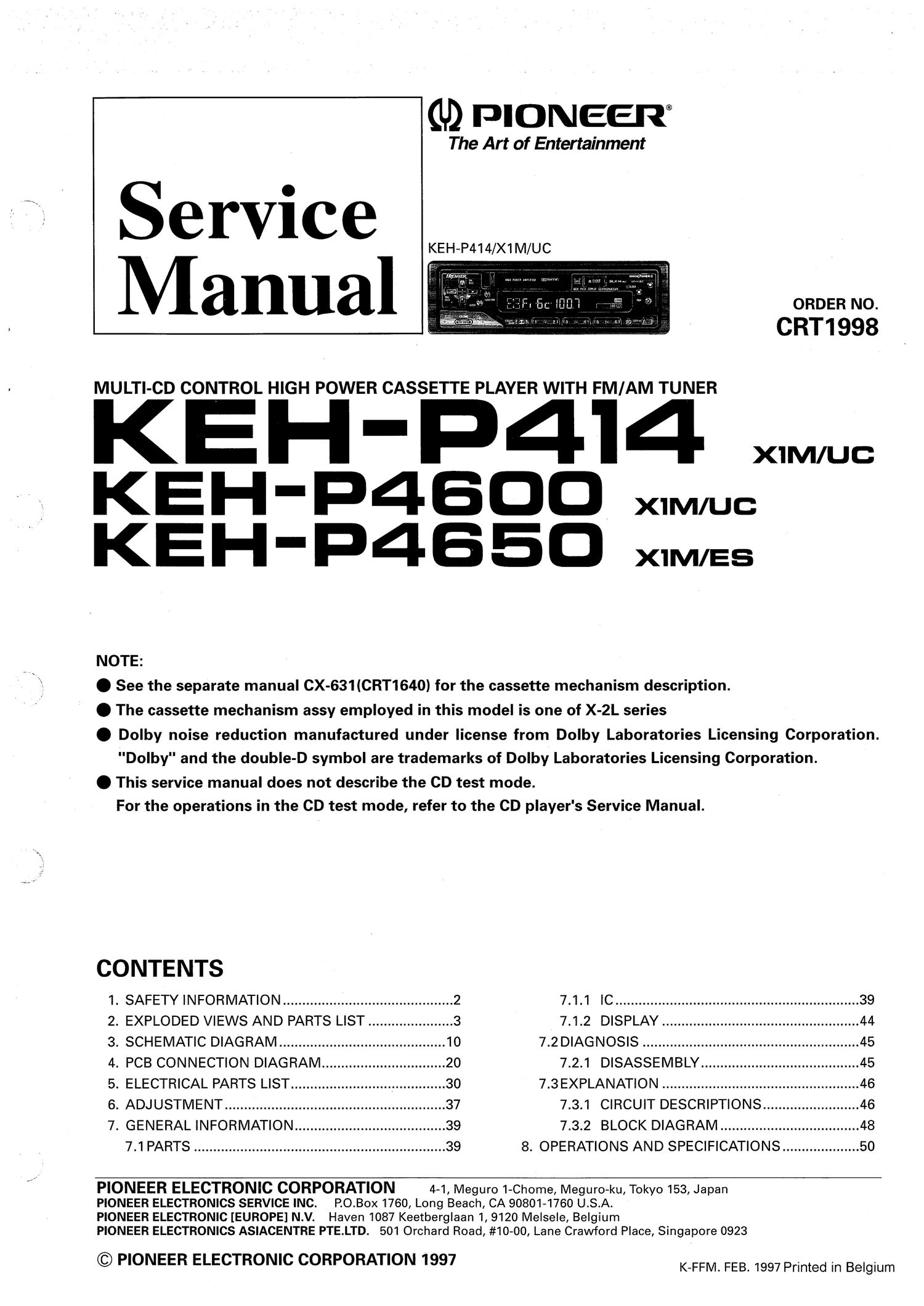

Page 1
(U) PIONEER®
The Art of Entertainment
Service
KEH-P414/XIM/UC
ORDER NO.
CRT1998
MULTI-CD CONTROL HIGH POWER CASSETTE PLAYER WITH FM/AM TUNER
KEH " .414 mm
KEH 'pd-GDU XIM/uc
KE H - F4 50 XlM/ES
NOTE:
0 See the separate manual CX-631(CRT1640) for the cassette mechanism description.
O The cassette mechanism assy employed in this model is one of X- 2L series
. Dolby noise reduction manufactured under license from Dolby Laboratories Licensing Corporation.
Dolby" and the double- D symbol are trademarks of Dolby Laboratories Licensing Corporation.
0 This service manual does not describe the CD test mode.
For-the operations in the CD test mode, refer to the CD player's Service Manual.
CONTENTS
1. SAFETYINFORMATION................ ............................ 2 7.1.1 IC ............................................................... 39
2. EXPLODED VIEWS AND PARTS LIST ...................... 3 _ 7.1.2 DISPLAY .......................... ....................... _..44
3. SCHEMATIC DIAGRAM ...................... ' ..................... 10 7.2 DIAGNOSIS ........................................................ 45
4. PCB CONNECTION DIAGRAM ................................ 20 7.2.1 DISASSEMBLY ......................................... 45
5. ELECTRICAL PARTS LIST ....... . ................... , .............. 3o * 7.3 EXPLANATION ................................................... 46
6. ADJUSTMENT ........ ................................................. 37 7.3.1 CIRCUIT DESCRIPTIONS ......................... 46
7. GENERAL INFORMATION ....................................... 39 7.3.2 BLOCK DIAGRAM .................................... 48
7.1 PARTS ............................................................... 39 8. OPERATIONS AND SPECIFICATIONS ............. 50
PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153, Japan
PIONEER ELECTRONICS SERVICE INC. P.O.Box 1760, Long Beach, CA 90801-1760 USA. I
PIONEER ELECTRONIC [EUROPE] N.V. Haven 1087 Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE.LTD. 501 Orchard Road, #10-00, Lane Crawford Place, Singapore 0923
© PIONEER ELECTRONIC CORPORATION 1997 K-FFM. FEB. 1997 Printed in Belgium
