Pioneer kehp 4023 r service manual

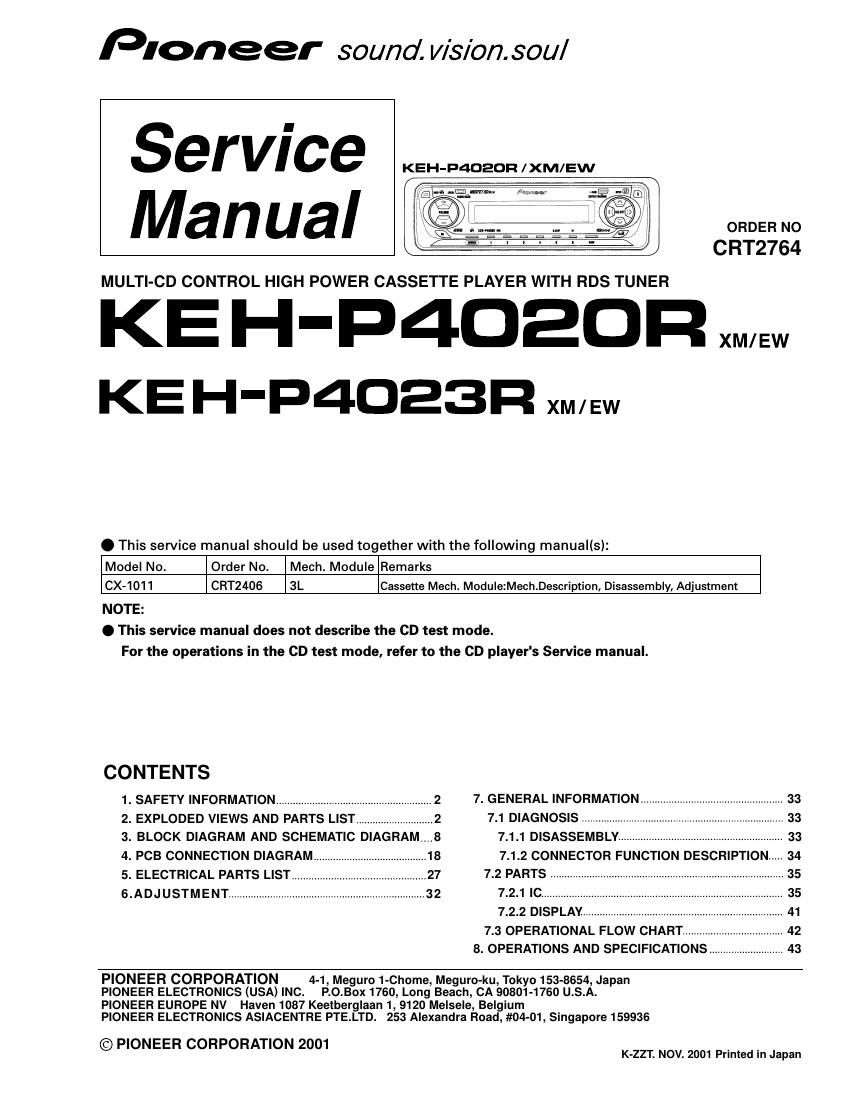

This is the 47 pages manual for pioneer kehp 4023 r service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer kehp 4023 r service manual (Ocr-read)
Page 1
2 2. EXPLODED VIEWS AND PARTS LIST 2.1 PACKING 1. SAFETY INFORMATION This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so and refer the repair to a qualified service technician.
Page 2
NOTE - Parts marked by * are generally unavailable because they are not in our Master Spare Parts List. 3 Mark No. Description Part No. Mark No. Description Part No. 1 Carton CZH5587 2 Owner's Manual CZR2950 3 Installation Manual CZR2952 * 4 Warranty Card CRY1157 * 5 Passport CRY1013 6 Case Assy CXB3520 7 Cord Assy CZD2977 8 Protector CZH5591 9 Protector CZH5592 10 Polyethylene Bag CZE290311 Owner's Manual CZR2951 12 Accessory Assy CEA3062 13 Bush CNV3930 14 Screw CBA1002 15 Handle CNC5395 16 Holder CNC9450 17 Screw BPZ20P060FZK * 18 Polyethylene Bag E36-615 19 Contain Box CZH5588 KEH-P4023R/XM/EW Mark No. Description Part No. Mark No. Description Part No. 1 Carton CZH5589 2 Owner's Manual CZR2950 3 Installation Manual CZR2952 * 4 Warranty Card CRY1157 * 5 Passport CRY1013 6 Case Assy CXB3520 7 Cord Assy CZD2977 8 Protector CZH5591 9 Protector CZH5592 10 Polyethylene Bag CZE290311 Owner's Manual CZR2951 12 Accessory Assy CEA3062 13 Bush CNV3930 14 Screw CBA1002 15 Handle CNC5395 16 Holder CNC9450 17 Screw BPZ20P060FZK * 18 Polyethylene Bag E36-615 19 Contain Box CZH5590 Owner's Manual,Installation Manual Part No. CZR2950 CZR2951 CZR2952 English, Spanish, German French, Italian, Dutch English, Spanish, German, French, Italian, Dutch Language - PACKING SECTION PARTS LIST KEH-P4020R/XM/EW
