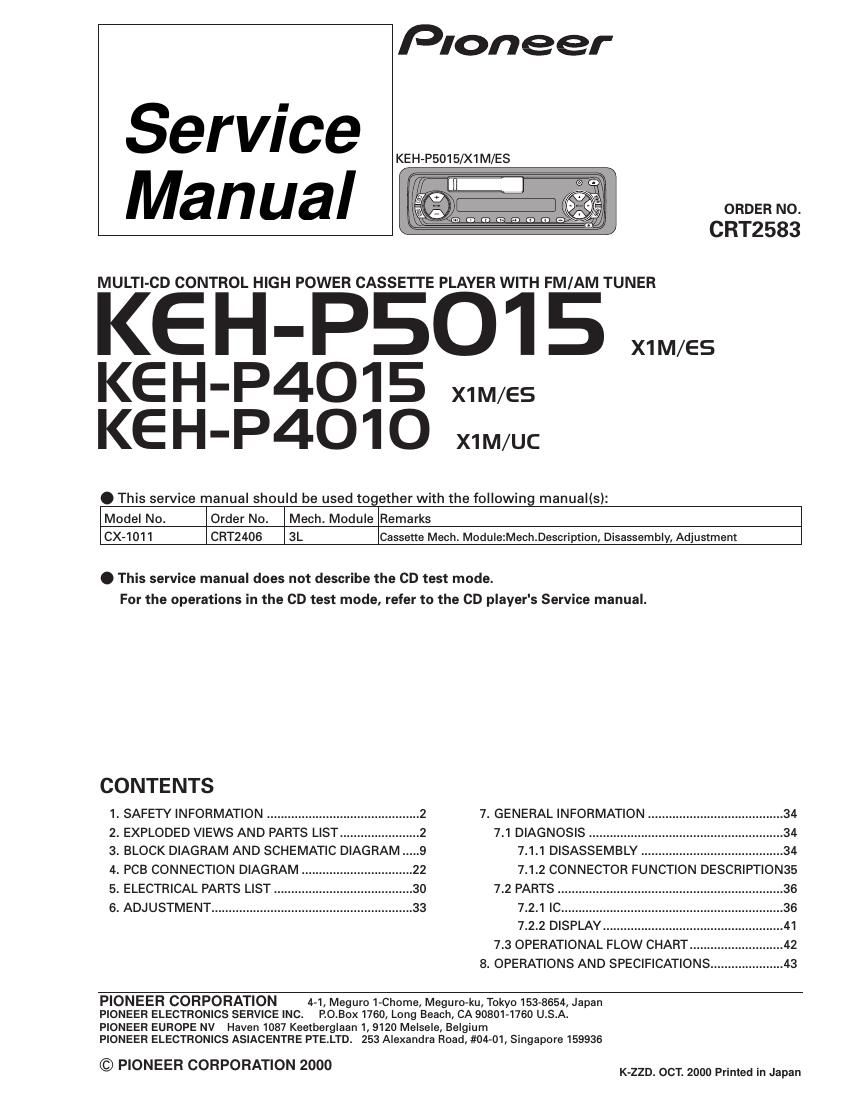

Page 1

Pioneer

Service
Manual

MULTI-CD CONTROL HIGH POWER CASSETTE PLAYER WITH FM/AM TUNER

KEH-P5015

KEH-P4015 x1M/Es
KEH-P401O mm

. This service manual should be used together with the following manual(s):
Model No. Order No. Mech. Module Remarks
CX-IO'I'I CRT2406 3L Cassette Mech. Module:Mech.Description, Disassembly, Adjustment

KEH-P5015/X1M/ES

ORDER NO

chzssé

. This service manual does not describe the CD test mode.
For the operations in the CD test mode, refer to the CD player's Service manual.

CONTENTS

1. SAFETY INFORMATION ................... .. 7. GENERAL INFORMATION ..

2. EXPLODED VIEWS AND PARTS LIST.. ..2 7.1 DIAGNOSIS

3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM ..... 9 7.1.1 DISASSEMBLY. ....34

4. PCB CONNECTION DIAGRAM 7.1.2 CONNECTOR FUNCTION DESCRIPTION35

5. ELECTRICAL PARTS LIST ....... 7.2 PARTS ................................................................. 36

6. ADJUSTMENT .......................................................... 33 7.2.1 IC ................................................................ 36
7.2.2 DISPLAY ......................... ...4|

7.3 OPERATIONAL FLOW CHART ....42
8. OPERATIONS AND SPECIFICATIONS ..................... 43

PIONEER CORPORATION 4-1, Meguro 1-Chome, Meguro»ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE INC. R0.Box 1760, Long Beach, CA 90801-1760 U.S.A.
PIONEER EUROPE NV Haven 1087 Keetberglaan 1, 9120 Melsele, Belgium

PIONEER ELECTRONICS ASIACENTRE PTE.LTD. 253 Alexandra Road, #0401, Singapore 159936

© PIONEER CORPORATION 2000 K-ZZD. OCT. 2000 Printed in Japan

Page 2

KEH-P5015.P4015.P401O

1. SAFETY INFORMATION
CAUTION

This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer.
Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair
complex products such as those covered by this manual.

Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty.
If you are not qualified to perform the repair of this product properly and safely; you should not risk trying to do so
and refer the repair to a qualified service technician.

WARNING
This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of

California to cause cancer, birth defects or other reproductive harm.
Health & Safety Code Section 25249.6 - Proposition 65

2. EXPLODED VIEWS AND PARTS LIST
2.1 PACKING

IU
