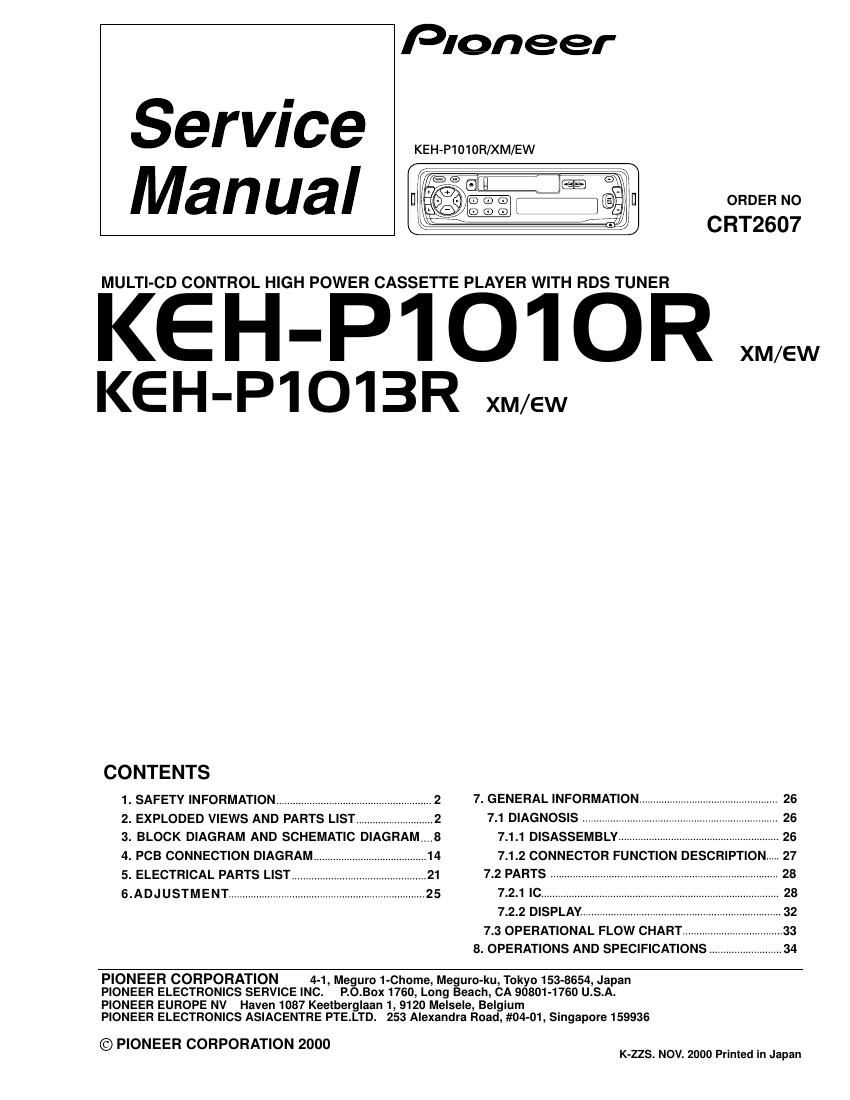

Pioneer kehp 1010 r service manual
This is the 38 pages manual for pioneer kehp 1010 r service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer kehp 1010 r service manual (Ocr-read)
Page 1
2 KEH-P1010R,P1013R 1. SAFETY INFORMATION CAUTION This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely; you should not risk trying to do so and refer the repair to a qualified service technician. 2. EXPLODED VIEWS AND PARTS LIST 2.1 PACKING
Page 2
3 KEH-P1010R,P1013R NOTE Parts marked by * are generally unavailable because they are not in our Master Spare Parts List. Mark No. Description Part No. Mark No. Description Part No. 1 Carton CZH5577 2 Owners Manual CZR2940 3 Installation Manual CZR2941 *4 Warranty Card CRY1157 *5 Passport CRY1013 6 Protector CHP1623 7 Protector CHP1622 8 Polyethylene Bag CZE2903 9 Cord Assy CZD2977 10 Case Assy CXB352011 Owners Manual CZR2942 *12 Accessory Assy CEA2397 13 Bush CNV3930 14 Screw CBA1002 15 Handle CNC5395 16 Polyethylene Bag E36-615 17 Contain Box CZH5578 KEH-P1013R/XM/EW Mark No. Description Part No. Mark No. Description Part No. 1 Carton CZH5579 2 Owners Manual CZR2940 3 Installation Manual CZR2941 *4 Warranty Card CRY1157 *5 Passport CRY1013 6 Protector CHP1623 7 Protector CHP1622 8 Polyethylene Bag CZE2903 9 Cord Assy CZD2977 10 Case Assy CXB352011 Owners Manual CZR2942 *12 Accessory Assy CEA2397 13 Bush CNV3930 14 Screw CBA1002 15 Handle CNC5395 16 Polyethylene Bag E36-615 17 Contain Box CZH5580 Owner's Manual,Installation Manual Part No. CZR2940 CZR2941 CZR2942 English, Spanish, German English, Spanish, German, French, Italian, Dutch French, Italian, Dutch Language PACKING SECTION PARTS LIST KEH-P1010R/XM/EW
