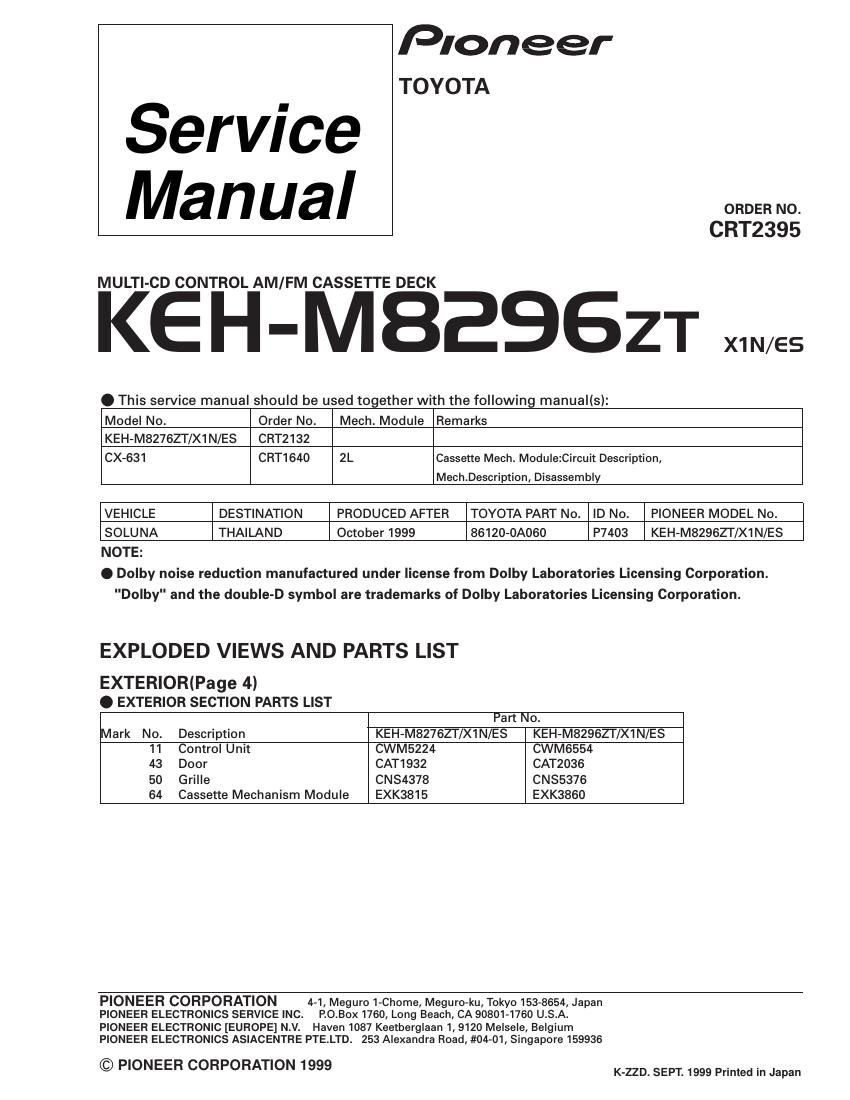

Page 1
Service
Manual
MULTI-CD CONTROL AM/FM CASSETTE DECK
Pioneer
TOYOTA
ORDER NO.
CRT2395
KEH-MBESGZT
O This service manual should be used together with the following manual(s):
Model No. Order No. Mech. Module Remarks
KEH-M827BZT/X1N/ES CRT2132
CX-631 CRT1640 2L Cassette Mech. ModulezCircuit Description,
Mech.Description, Disassembly
VEHICLE DESTINATION PRODUCED AFTER TOYOTA PART NO. ID NO. PIONEER MODEL No.
SOLUNA THAILAND October 1999 86120-0A060 P7403 KEH-MSZQGZT/Xl N/ES
NOTE:
0 Dolby noise reduction manufactured under license from Dolby Laboratories Licensing Corporation.
"Dolby and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation.
EXPLODED VIEWS AND PARTS LIST
EXTERIORlPage 4l
. EXTERIOR SECTION PARTS LIST
Part No.
Mark No. Description KEH-M827GZT/X1N/ES KEH-M82962T/X1N/ES
11 Control Unit CWM5224 CWM6554
43 Door CAT1932 CAT2036
50 Grille CNS4378 CN85376
64 Cassette Mechanism Module EXK3815 EXK3860
PIONEER CORPORATI
ON
PIONEER ELECTRONICS SERVICE INC.
PIONEER ELECTRONIC [EUROPE] N.V. Haven 1087 Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE.LTD. 253 Alexandra Road, #0401, Singapore 159936
© PIONEER CORPORATION 1999
4-1, Meguro 1-Chome, Megum»ku, Tokyo 153-8654, Japan
R0.Box 1760, Long Beach, CA 90801-1760 USA.
K-ZZD. SEPT. 1999 Printed in Japan
