Pioneer kehm 7016 zh service manual

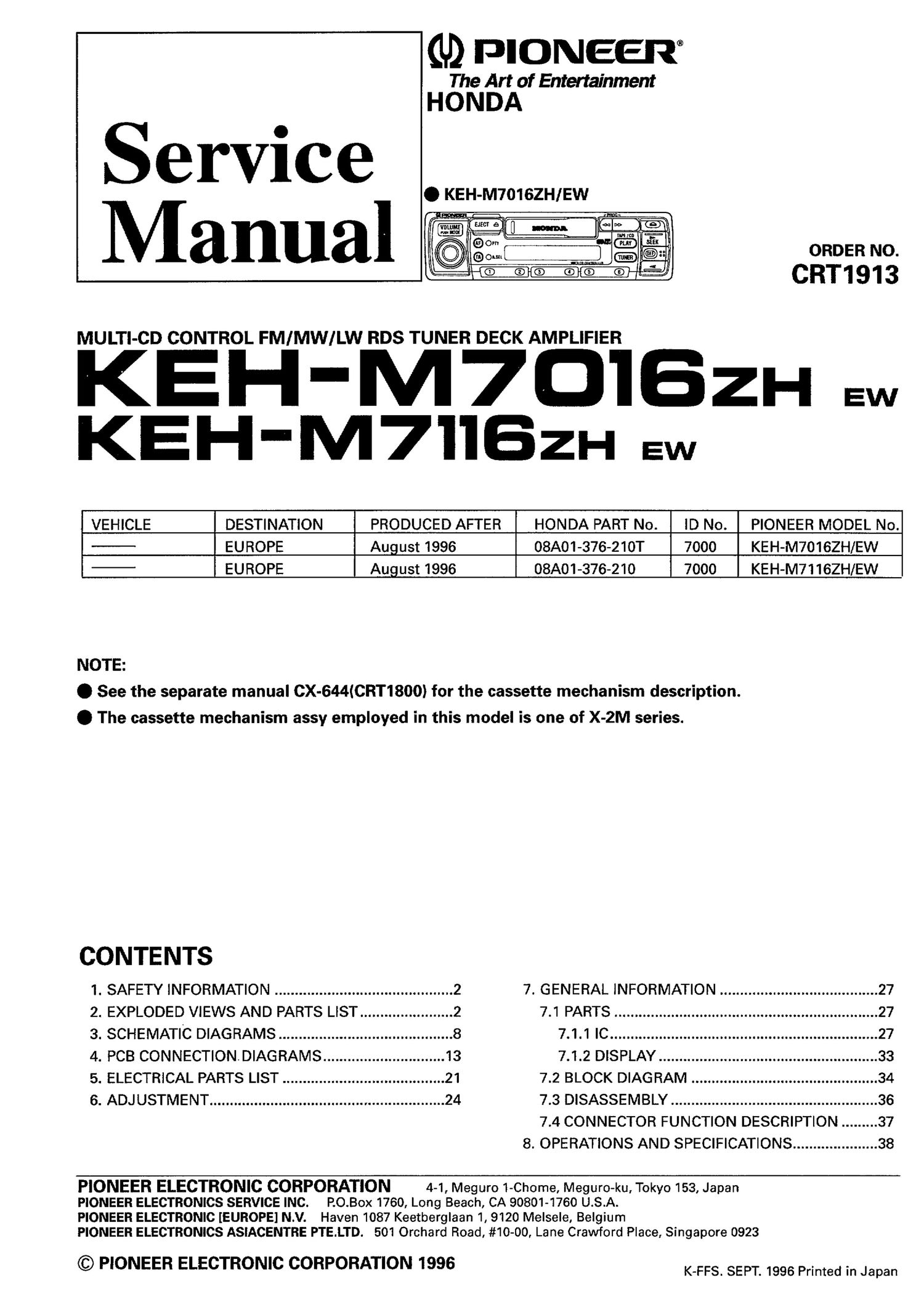

Page 1

(U) PIONEER

The Art of Entertainment
H O N DA

Service
anual

MULTI-CD CONTROL FM/MW/LW RDS TUNER DECK AMPLIFIER

KEH-M7D'IGZH Ew
KEH'M7HBZH aw

ORDER NO

CRT1913

VEHICLE DESTINATION PRODUCED AFTER HONDA PART NO. . ID No. PIONEER MODEL No.
EUROPE August 1996 08A01-376-210T I 7000 KEH-M70162H/EW
EUROPE August _1 996 408A01-376-210 7000 KEH~M7116ZHIEW_

NOTE:

0 See the separate manual CX-644ICRT1800) for the cassette mechanism description.

0 The cassette mechanism assy employed in this model is one of X-ZM series.

CONTENTS

1. SAFETY INFORMATION ............................................ 2 7. GENERAL INFORMATION ....................................... 27
2. EXPLODED VIEWS AND PARTS LIST ....................... 2 7.1 PARTS ................................................................. 27
3. SCHEMATIC DIAGRAMS 8 7.1.1 IC .................................................................. 27
4. PCB CONNECTIONDIAGRAMS .............................. 13 7.1.2 DISPLAY ...................................................... 33
5. ELECTRICAL PARTS LIST 21 7.2 BLOCK DIAGRAM .............................................. 34
6. ADJUSTMENT .......................................................... 24 7.3 DISASSEMBLY ................................................... 36
7.4 CONNECTOR FUNCTION DESCRIPTION ......... 37

8. OPERATIONS AND SPECIFICATIONS ..................... 38

PIONEER ELECTRONIC CORPORATION
PIONEER ELECTRONICS SERVICE INC.
PIONEER ELECTRONIC [EUROPE] N.V. Haven 1087 Keetberglaan 1, 9120

4-1, Meguro 1-Chome, MegurO-ku, Tokyo 153, Japan
P.O.Box 1760, Long Beach, CA 90801-1760 U.S.A.

Melsele, Belgium

PIONEER ELECTRONICS ASIACENTRE PTE.LTD. 501 Orchard Road, #10-00, Lane Crawford Place, Singapore 0923

© PIONEER ELECTRONIC CORPORATION 1996

K-FFS. SEPT. 1996 Printed in Japan

Page 2

KEH"M7OIBZH,M7IISZH

1. SAFETY INFORMATION

During disassembly, be sure to turn the power off since
an internal IC might be destroyed when a connector is

plugged or unplugged.

2. EXPLODED VIEWS AND PARTS HST

2.1 PACKING METHOD

0 Parts ListhEH-M70162H/EWl

Mark No. Description Part No.
1 Polyethylene Bag CEG-162
2-1 Polyethylene Bag CEG1116
2-2 Owner's Manual CRDZ190
3 Contain Box CHL3086
4 Protector CHP1852

O Owner's Manual __ -

Part-Alp. Lanagage __ J __
CRDElQO English,French,GermaflDutcnw

Mark No. Description

5 Protector
6 Case Assy

Fig.1

Part No.

CH P1853
CXA7080
