Pioneer kehm 1066 zrn service manual

Page 1

(U) mom-zen

The Art of Entertainment

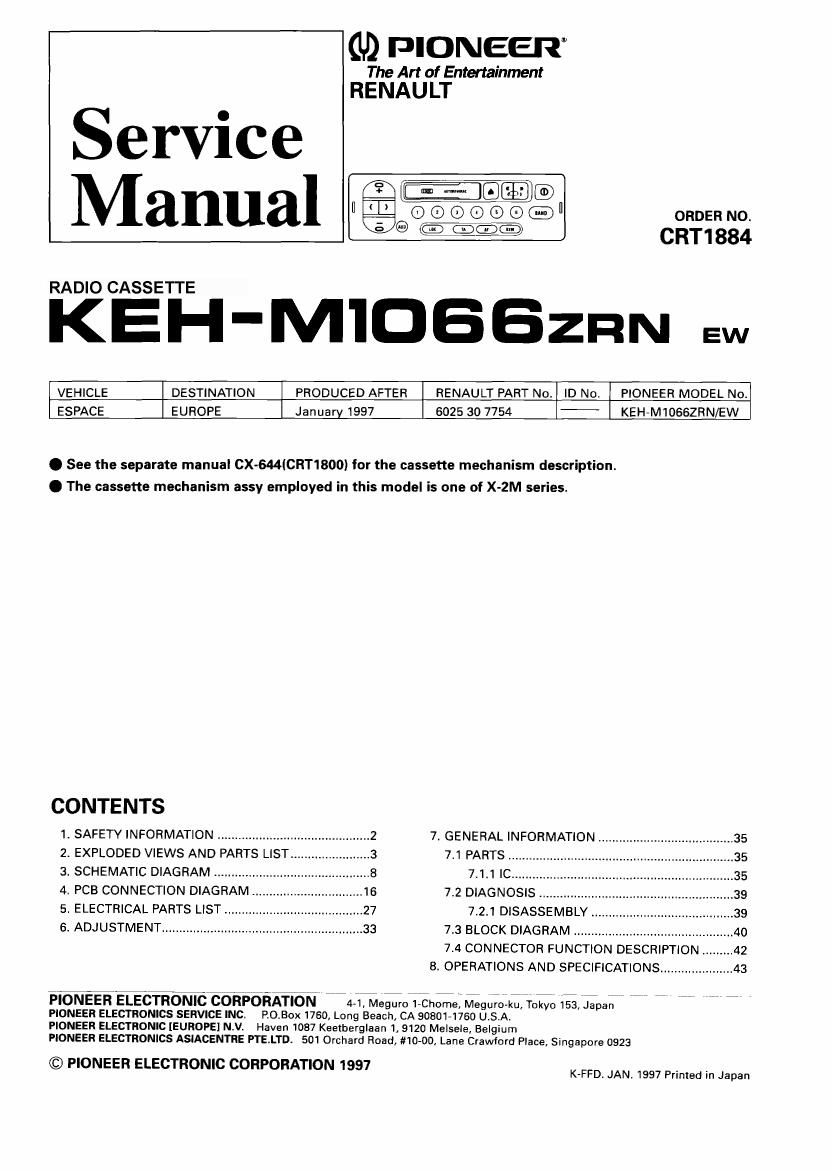

RENAU LT

S e rvic e
Manual TEQQM 9 (A? " ORDER NO.

,7 CRT1 884
RADIO CASSETTE
' M 10 6 6 2 F! N
EW
VEHICLE DESTINATION PRODUCED AFTER RENAULT PART No. ID No. PIONEER MODEL No.
ESPACE EUROPE January 1997 5025 30 7754 KEH-M10662RN/EW

. See the separate manual CX-GMICRT1800) for the cassette mechanism description.
0 The cassette mechanism assy employed in this model is one of X-2M series.

CONTENTS
1. SAFETY INFORMATION ........................ 7. GENERAL INFORMATION.
2. EXPLODED VIEWS AND PARTS LIST... 7.1 PARTS ..
3. SCHEMATIC DIAGRAM 7.1.1 IC.
4. PCB CONNECTION DIAGRAM .16 7.2 DIAGNOSIS
5. ELECTRICAL PARTS LIST . ....27 7.2.1 DISASSEMBLY
6. ADJUSTMENT .................................. 33 7.3 BLOCK DIAGRAM .......................................
7.4 CONNECTOR FUNCTION DESCRIPTION ..
8. OPERATIONS AND SPECIFICATIONS ..................... 43

PIONEER ELECTRONIC CORPORATION 44, Meguro 1»Chome, Meguro-ku, Tokyo 153. Japan
PIONEER ELECTRONICS SERVICE INC. ROBOX 1760, Long Beach, CA 90801-1760 U.S.A.

PIONEER ELECTRONIC [EUROPE] N.V. Haven 1037 Ksetberglaan 1, 9120 Melsele, Belgium

PIONEER ELECTRONICS ASIACENTRE PTE.LTD. 501 Orchard Road, #10-00, Lana Crawford Place, Singapore 0923

© PIONEER ELECTRONIC CORPORATION 1997 K-FFD. JAN. 1997 Primed in Japan

Page 2

KEH-MIOBBZRN

1. SAFETY INFORMATION

This service manual is intended for qualified service technicians; it is not meant for the casual do»it»yourselfer.
Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair
complex products such as those covered by this manual.

Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty.

If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so
and refer the repair to a qualified service technician.
