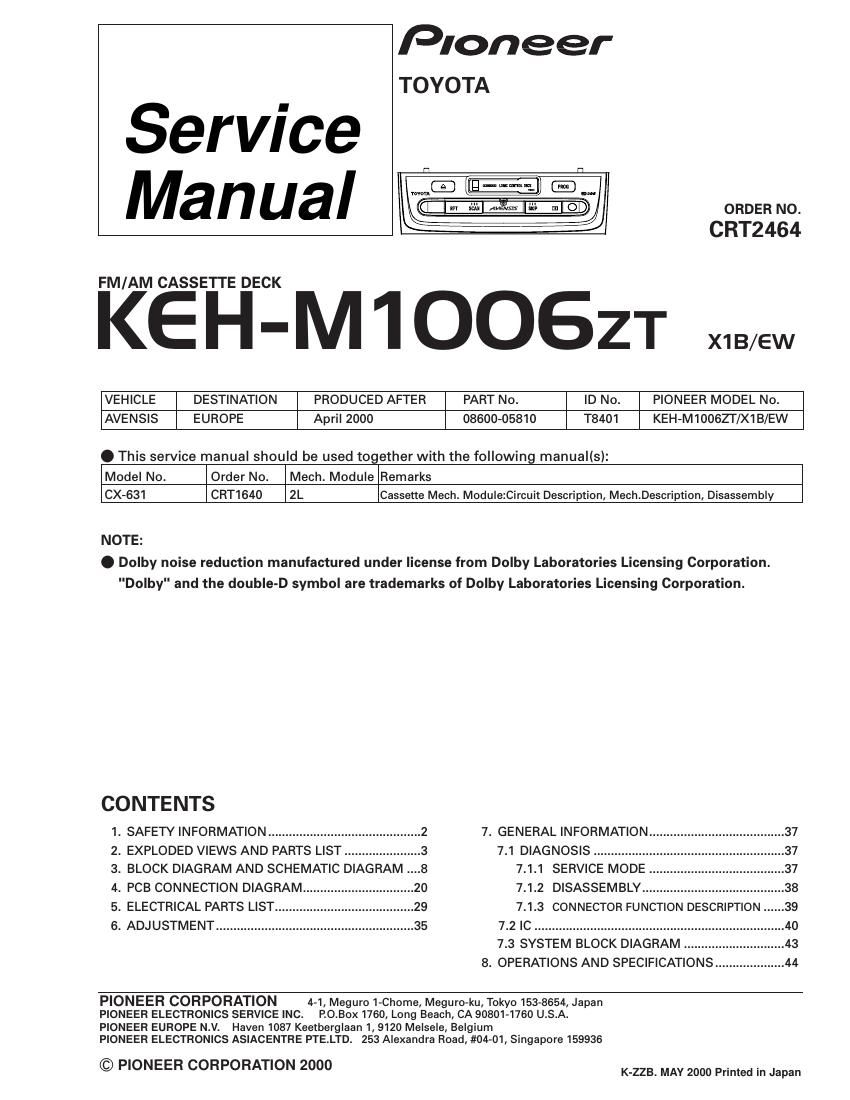

Page 1

Pioneer
TOYOTA

Service
Manual

FM/AM CASSETTE DECK

KE H-M1OOSZT mew

VEHICLE DESTINATION PRODUCED AFTER PART No. ID No. PIONEER MODEL No.
AVENSIS EUROPE April 2000 0860005810 T8401 KEH»M1006ZT/X1B/EW

ORDER NO.

CRT2464

. This service manual should be used together with the following manual(s):

Model No. Order No. Mech. Module Remarks
CX-63I CRT164O 2L Cassette Mech. ModulezCircuit Description, Mech.Description, Disassembly
NOTE:

. Dolby noise reduction manufactured under license from Dolby Laboratories Licensing Corporation.
"Dolby" and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation.

CONTENTS
1. SAFETY INFORMATION.. ..2 7. GENERAL INFORMATION.. ....37
2. EXPLODED VIEWS AND PARTS LIST ..3 7.1 DIAGNOSIS .................. ....37
3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM ....8 7.1.1 SERVICE MODE .. ....37
4. PCB CONNECTION DIAGRAM ................................ 20 7.1.2 DISASSEMBLY.... ....38
5. ELECTRICAL PARTS LIST ........................................ 29 7.1.3 CONNECTOR FUNCTION DESCRIPTION ...... 39
6. ADJUSTMENT ......................................................... 35 7.2 IC ......................................... ...40

7.3 SYSTEM BLOCK DIAGRAM .. ....43
8. OPERATIONS AND SPECIFICATIONS .................... 44

PIONEER CORPORATION 4-1, Meguro 1-Chome, Meguro»ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE INC. P.O.Box 1760, Long Beach, CA 90801-1760 U.S.A.
PIONEER EUROPE N.V. Haven 1087 Keetberglaan 1, 9120 Melsele, Belgium

PIONEER ELECTRONICS ASIACENTRE PTE.LTD. 253 Alexandra Road, #0401, Singapore 159936

© PIONEER CORPORATION 2000 K-ZZB. MAY 2000 Printed in Japan

Page 2

KEH-M1OOGZT

. Service Precautions

1. During disassembly, be sure to turn the power off 3. When operating with large output power, the heat
since an internal IC might be destroyed when a sink becomes very hot. Be careful not to touch it.
connector is plugged or unplugged.

2. Whenever the amplifier may be put into operation, a
heat sink should be mounted. le and transistors
may be damaged if the amplifier should be put into
operation without mounting any heat sink.

1. SAFETY INFORMATION

This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer.
Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair
complex products such as those covered by this manual.

Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty.
If you are not qualified to perform the repair of this product properly and safely; you should not risk trying to do so
and refer the repair to a qualified service technician.
