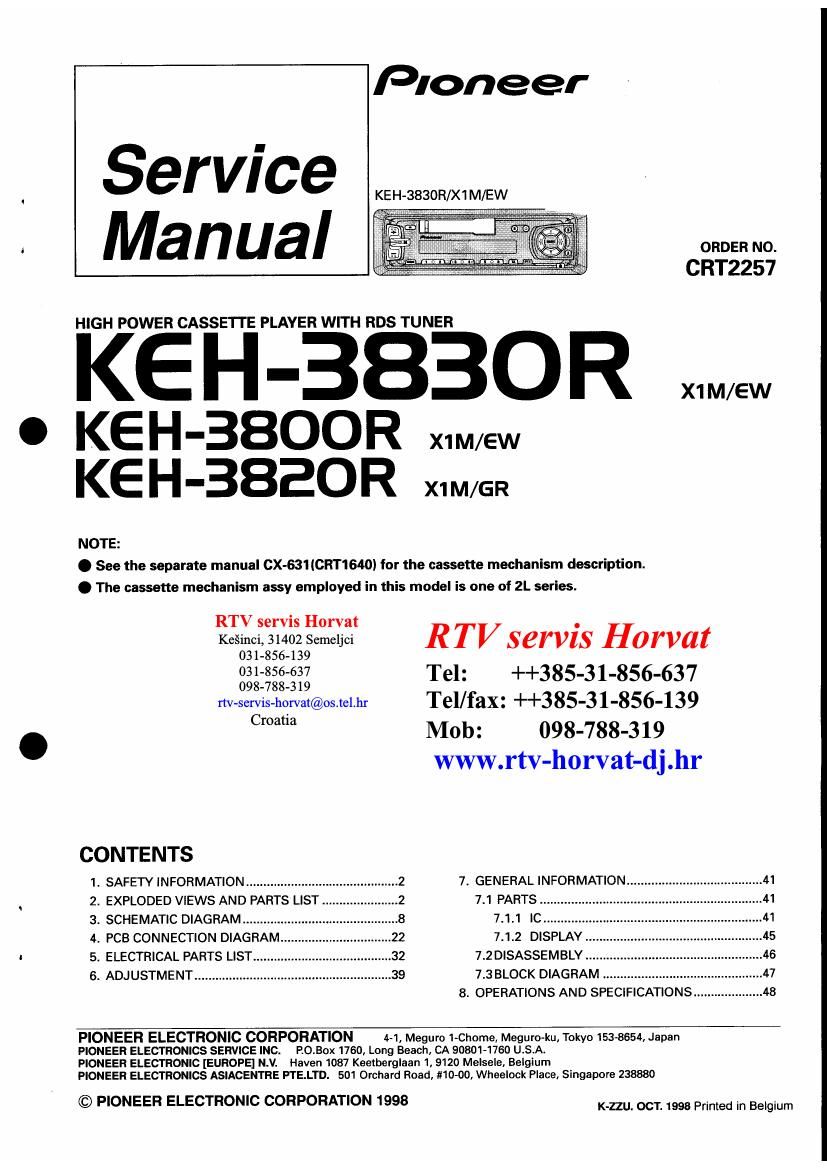

Page 1
Pioneer
Service
Manual
HIGH POWER CASSETTE PLAYER WITH RDS TUNER
KEH-3830R
KEH-BBOOR x1M/ew
KEH-BBEOR Wm
NOTE:
O See the separate manual CX-631ICRT1640) for the cassette mechanism description.
O The cassette mechanism assy employed in this model is one of 2L series.
ORDER NO.
CRT2257
RTV servis Horvat
K6§3§°1i18351£23§emeljm R T V servis H 0rvat
33:33:33; Tel: ++385-31-856-637
nv-seg:::;;vat@osjel.hr Tel/fax: ++385-31-856-139
Mob: 098-788-319
www.rtv-h0rvat-dj.hr
CONTENTS
1. SAFETY INFORMATION .................................. 7. GENERAL INFORMATION .............................
2. EXPLODED VIEWS AND PARTS LIST 7.1 PARTS ......................................................
3. SCHEMATIC DIAGRAM ................... .. 7.1.1 lC .....
4. PCB CONNECTION DIAGRAM 22 7.1.2 DISPLAY .
5. ELECTRICAL PARTS LIST 7.2DISASSEMBLY .........................................
6. ADJUSTMENT ..................... 7.3 BLOCK DIAGRAM .............................................. 47
8. OPERATIONS AND SPECIFICATIONS .................... 48
PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguroku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE INC. ROBox 1760, Long Beach, CA 908014760 U.S.A.
PIONEER ELECTRONIC [EUROPE] N.V. Haven 1087 Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTHE PTE.LTD. 501 Orchard Road, 10-00, Wheelock Place, Singapore 238880
© PIONEER ELECTRONIC CORPORATION 1998 mm 061 1998 Primed in Bebium
Page 2
KEH-BBBORSBOORBBBOR
1. SAFETY INFORMATION
This service manual is intended for qualified service technicians: it is not meant for the casual do-it-yourselfer.
Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair
complex products such as those covered by this manual.
Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. .
If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so
and refer the repair to a qualified service technician.
2. EXPLODED VIEWS AND PARTS LIST
2.1 PACKING
12
