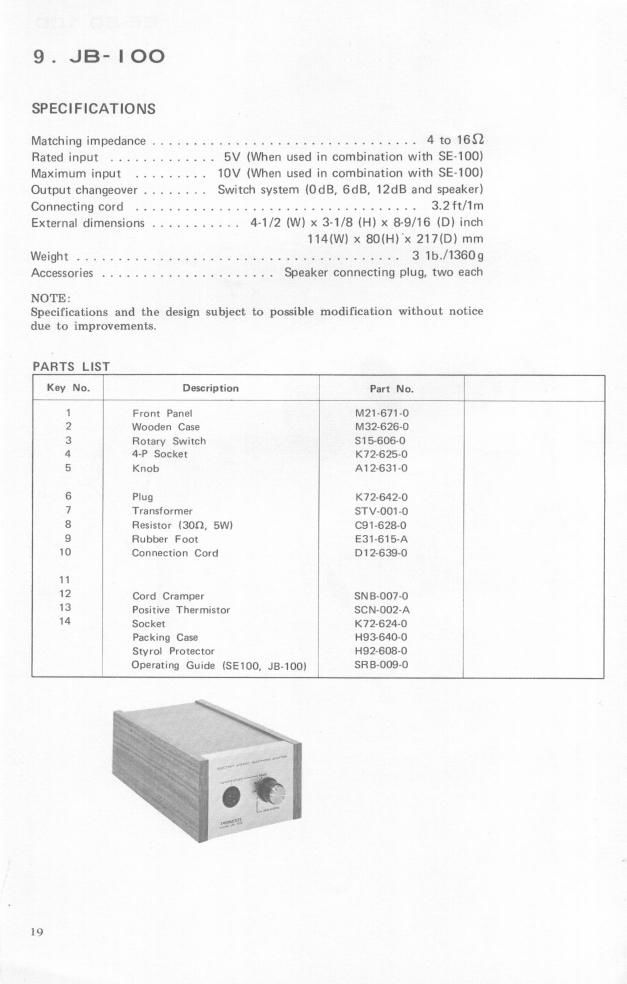

Page 1
9. JB-IOO
SPECIFICATIONS
Matching impedance ................................ 4 to 169
Rated input ............. 5V (When used in combination with SE-100)
Maximum input ......... 10V (When used in combination with SE-iOO)
Output changeover ........ Switch system (OdB, 6dB, 12dB and speaker)
Connecting cord .................................. 3.2ft/1m
External dimensions ........... 4-1/2 (W) x 3-1/8 (H) x 39/16 (D) inch
114(W) x 80(HI'X 217(D) mm
Weight ...................................... 3 1b./13609
Accessories ..................... Speaker connecting plug, two each
NOTE:
Specifications and the design subject to possible modification without notice
due to improvements
PARTS LIST
Key No. Description Pnrt No.
1 Front Panel M21-671-0
2 Wooden Case M32-626-0
3 Rotary Switch 815-6064)
4 4-? Socket K72-625-0
5 Knob A12-631-0
6 Plug K72-642-0
7 Transformer STV-OO1-0
8 Resistor (300, SW) 091-628-0
9 Rubber Foot EJ1-615~A
10 Connection Cord 012-639-0
11
12 Cord Cramper SNB-007-O l
13 Positive Thermistor SCN-OOZ-A
14 Socket K72-624-0
Packing Case HEB-6400
Styrol Protector 1 H92-608»0
Operating Guide (55100, JB-IOOI ( SHE-0090
19
