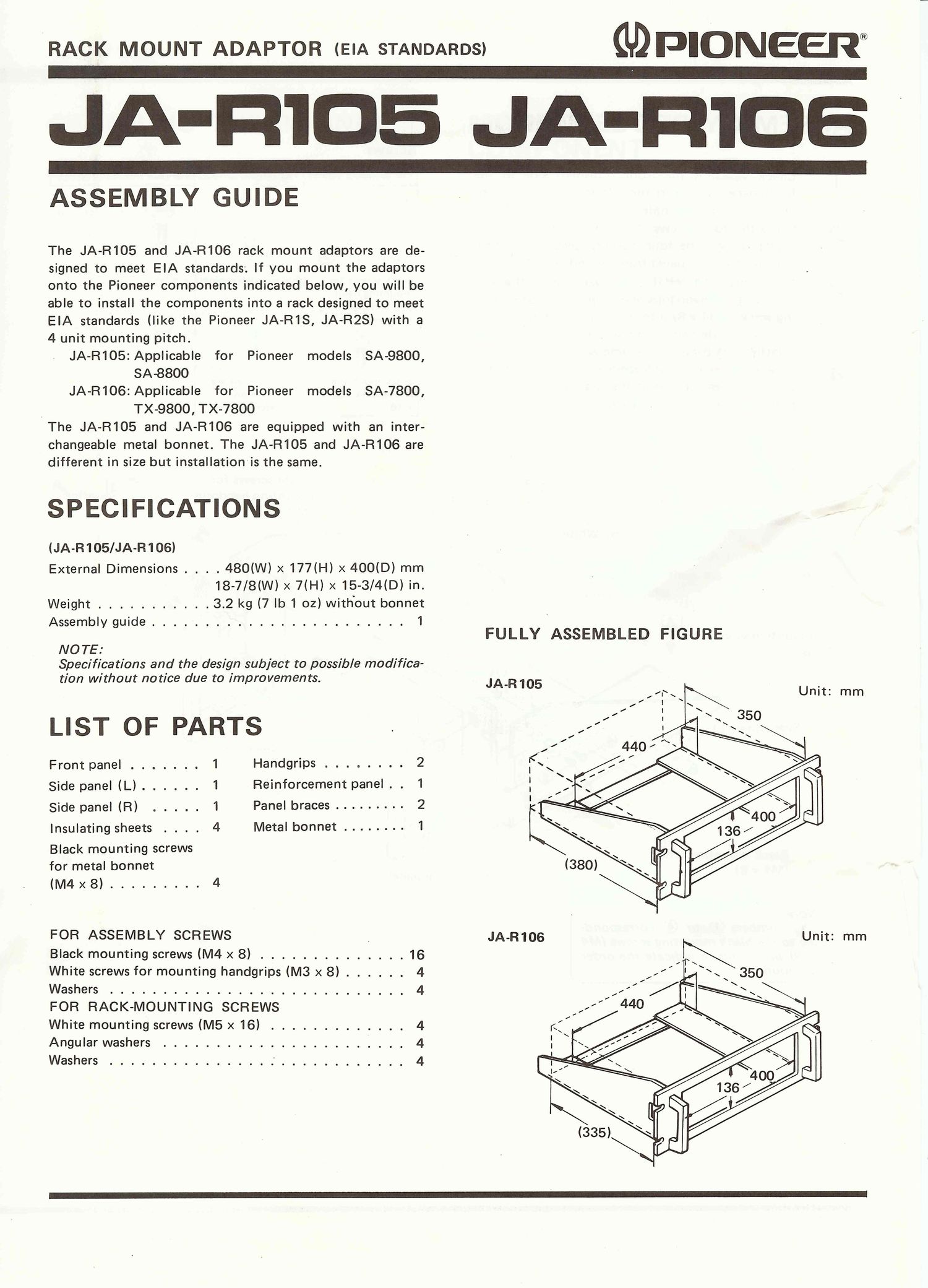

RACK MOUNT ADAPTOR (EIA STANDARDS) GDFICMVEEI?®

-105 LIA-ID

ASSEMBLY GUIDE

The JA-R105 and JA-R106 rack mount adaptors are de-
signed to meet EIA standards; If you mount the adaptors
onto the Pioneer components indicated below, you will be

able to install the components into a rack designed to meet
EIA standards (like the Pioneer JA-R1S, JA-RZS) with a
4 unit mounting pitch.

JA-R1052Applicable for Pioneer models SA-9800,

SA-88OO

JA-R106zApplicable for Pioneer models SA-7800,
1 TX-9800, TX-78OO
The JA-R105 and JA-R106 are equipped with an inter-
changeable metal bonnet. The JA-R105 and JA-R106 are
different in size but installation'is the same.

SPECIFICATIONS

(JA-R105/JA-R106)

External Dimensions . . . . 480(W) x 177(H) x 400(D) mm
18-7/8(W) x 7(H) x 15-3/4(D) in.
Weight ........... 3.2 kg (7 lb 1 oz) with'out bonnet
Assembly guide ........................ 1
FULLY ASSEMBLED FIGURE
NOTE:
Specifications and the design subject to possible modifica-
tion without notice due to improvements. JA-R105

«x Unit: mm

LIST OF PARTS

Front panel ....... 1 Handgrips ........ 2
Side panel (L) ...... 1 Reinforcement panel . . 1
Side panel (R) ..... 1 Panel braces ......... 2
Insulating sheets . . . . 4 Metal bonnet ........ 1

Black mounting screws
for metal bonnet

(M4 x 8) ......... 4

FOR ASSEMBLY SCREWS _ JA-R106 Unit: mm
Black mounting screws (M4 x 8) .............. 16 )\

White screws for mounting handgrips (M3 x 8) ...... 4 / \ \

Washers ............................ 4

FOR RACK-MOUNTING SCREWS

White mounting screws (M5 x 16) ............. 4

Angular washers ....................... 4

Washers ................ ............ 4
