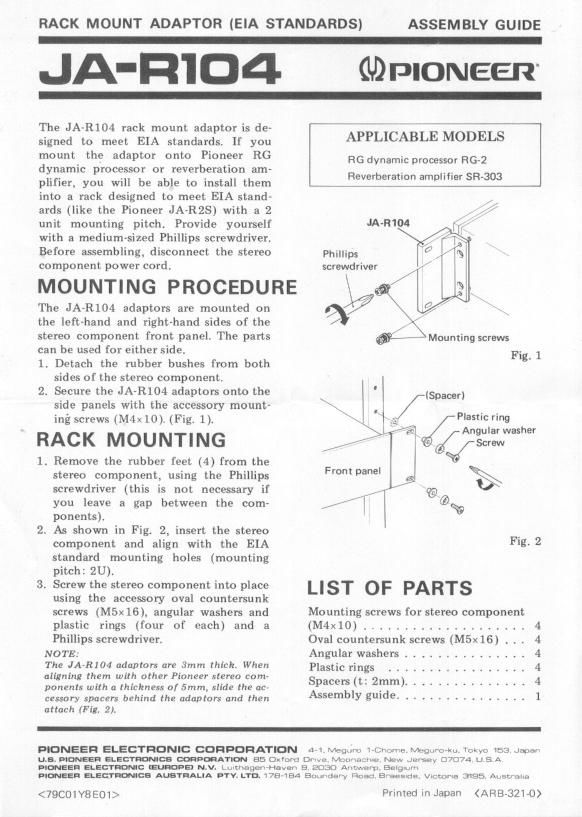

RACK MOUNT ADAPTOR (EIA STANDARDS) ASSEMBLY GUIDE

JA'R'IO4 GDPIONEER

The JA»R104 rack mount adaptor is de-
signed to meet EIA standards. If you
mount the adaptor onto Pioneer RG
dynamic processor or reverberation am»
plifier, you will be able to install them
into a rack designed to meet EIA stand-
ards (like the Pioneer JAvRZS) with a 2 ,
unit mounting pitch. Provide yourself JA-RWI (V
with a medium-sized Phillips screwdriver.

Before assembling, disconnect the stereo Phillips
component power cord. screwdriver

MOUNTING PROCEDURE

The JA-R104 adaptors are mounted on
the left-hand and right-hand sides of the
stereo component front panel. The parts Mounting screws

can be used for either side. Fig. 1

1. Detach the rubber bushes from both
ISpacerl
3/- Plastic ring

sides of the stereo component.
m, / Angular washer
EQ- Screw

APPLICABLE MODELS

FIG dynamic processor RG-2
Fleverberarion amplifier SR-303


2. Secure the JA-R104 adaptors onto the
side panels with the accessory mount-
iné screws (M4x 10), (Fig. 1).

RACK MOUNTING //

1. Remove the rubber feet (4) from the

stereo component, using the Phillips Front final R
screwdriver (this is not necessary if II, ,. (7,7

you leave a gap between the com- ,///'" I ®Q®
ponents).

2. As shown in Fig. 2, insert the stereo .
component and align with the EIA F192
standard mounting holes (mounting
pitch: 2U).

3. Screw the stereo component into place LIST OF PARTS

using the accessory oval countersunk

screws (M5x 16), angular Washers and Mounting screws for stereo component

plastic rings (four of each) and a (M4x10) .................... 4

Phillips screwdriver. Oval countersunk screws (M5x16) . . . 4
NOTE: Angular washers ............... 4
The JA»R104 adaptors are I3mm thick, When Plastic rings . . I _ . . 4
2223.": fiihmfilfi'lki'liroi'g'fflZlZIfihi:. Spacem 237"): - ~ ~ . ~ - - ~ ~ - 4
cessory spacers behind the adaptors and then Assembly EHde ---------------- I

attach (Fig. 2),
