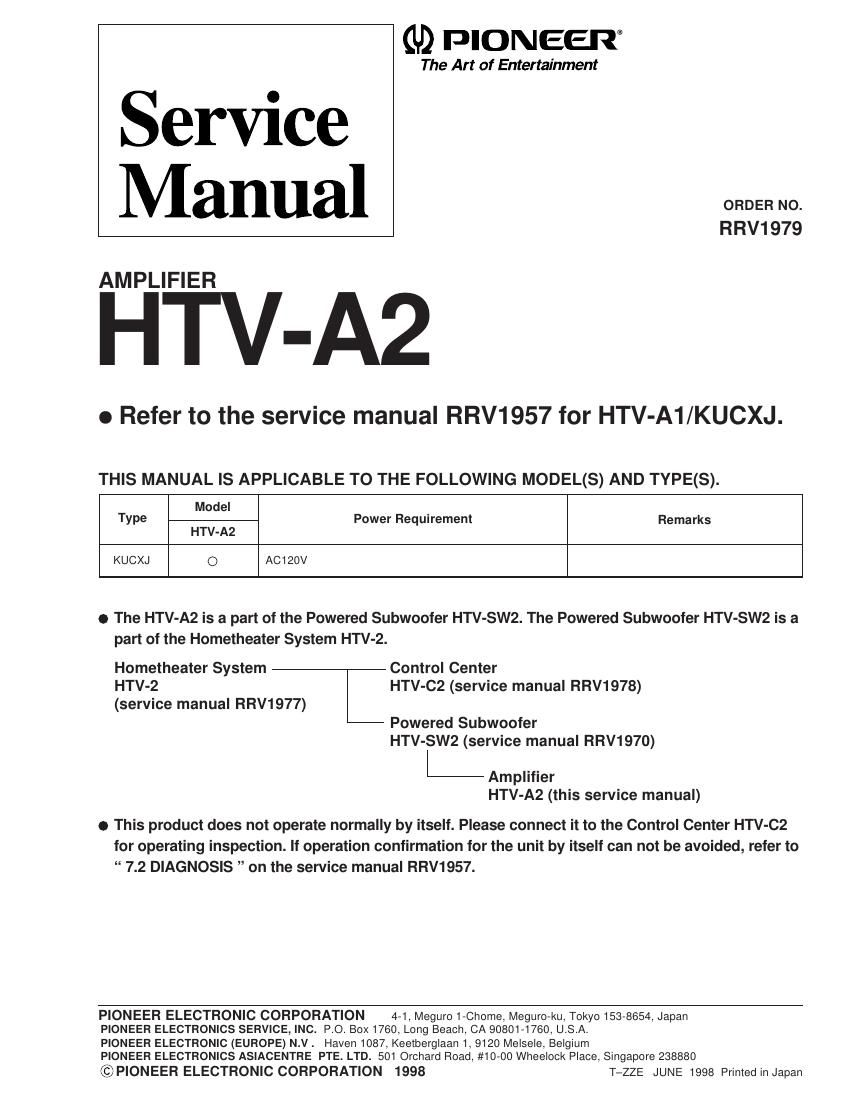

Pioneer htva 2 service manual
This is the 3 pages manual for pioneer htva 2 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer htva 2 service manual (Ocr-read)
Page 1
HTV-A2 2 CONTRAST OF MISCELLANEOUS PARTS 7 CONTRAST TABLE HTV-A2/KUCXJ and HTV-A1/KUCXJ are constructed the same except for the following: PCB ASSEMBLIES MOTHER ASSY AWM7368 AWM7370 P5Ð 1 AFPS ASSY AWU7073 AWU7079*1 P5Ð 2 PAMP ASSY AWU7074 AWU7080*1 P5Ð 3 PT PRI ASSY AWU7075 AWU7081*2 P5Ð 4 PT SEC ASSY AWU7076 AWU7082*3 EXTERIOR P5Ð 6 Power Transformer (T1) ATS7212 ATS7213 P5Ð 7 Fuse (5A, FU1) REK1083 Not used P5Ð 7 Fuse (6.3A, FU1) Not used REK1085 P5Ð11 NSP Heat Sink ANH7076 ANH7079 P5Ð26 NSP Name Label AAX7614 AAX7637 NSP Fuse Card Not used AAX2374*4 Ref. No.Remarks HTV-A1/KUCXJ HTV-A2/KUCXJPart No. Mark Symbol and Description NOTES :ÖParts marked by Ò NSP Ó are generally unavailable because they are not in our Master Spare Parts List. ÖThe mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. ÖReference Nos. indicate the pages and Nos. in the service manual for the base model. ÖWhen ordering resistors, first convert resistance values into code form as shown in the following examples. Ex. 1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J = 5%, and K = 10%). 560 W = 56 ´ 10 1 = 561 ...................................................RD1/4PU 5 6 1 J 47k W = 47 ´ 10 3 = 473 ..................................................RD1/4PU 4 7 3 J 0.5 W = R50 ......................................................................RN2H å 5 0 K 1 W = 1R0 .........................................................................RS1P 1 å 0 K Ex. 2 When there are 3 effective digits (such as in high precision metal film resistors). 5.62k W = 562 ´ 10 1 = 5621...........................................RN1/4PC 5 6 2 1 F *1 Refer to Ò CONTRAST OF PCB ASSEMBLIES Ó . *2 Although AWU7075 and AWU7081 are different in part number, they have the same service parts. *3 Although AWU7076 and AWU7082 are different in part number, they have the same service parts. *4 For PT PRI ASSY.
Page 2
HTV-A2 3 7 CONTRAST OF PCB ASSEMBLIES AFPS ASSY AWU7079 and AWU7073 are constructed the same except for the following: MarkSymbol and Description Remarks Part No. C101, C102 ACH7007 ACH1249 (4700mF/DC63V) (4700mF/DC71V) AWU7073 AWU7079 PAMP ASSY AWU7080 and AWU7074 are constructed the same except for the following: Mark Symbol and Description Remarks Part No. IC1101 STK407-040B STK407-050B Q1101 2SC5198(P) 2SC5200(P) Q1102 2SA1941(P) 2SA1943(P) R1110 RD1/4PM112J RD1/4PM911J R1112 RD1/4PMF680J RD1/4PMF910J R1209, R1210 RS1/10S122J RS1/10S102J AWU7074 AWU7080
