Extracted text from pioneer htp 55 service manual (Ocr-read)

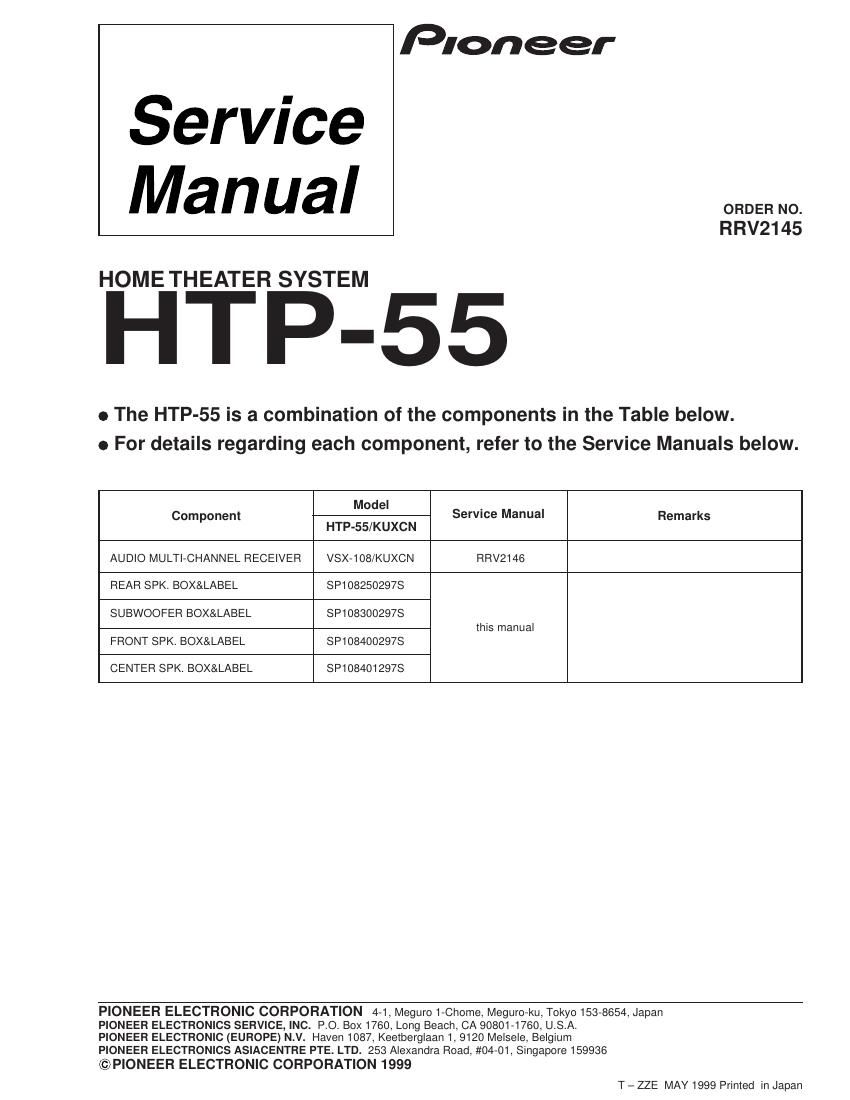

Page 1
HTP-55 2 1. EXPLODED VIEWS AND PARTS LIST Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Screws adjacent to mark on product are used for disassembly. NOTES: 1.1 PACKING 9 13 12 4 (Refer to 1.2 SUBWOOFER BOX&LABEL.) 6 3, 5 1 14 (for AC CORD) 8 7 17 WARRANTY CARD 10 VSX-108 2 15 19 16 20 DRY CELL BATTERY (LR6, AA) 18 FRONT FRONT 11 Mark No. Description Part No. 1 RCA Cable PDE1248 2 Speaker Cord Set SP108SPKWIRE 3 Rear SPK. Box&Label SP108250297S 4 Subwoofer Box&Label SP108300297S 5 Front SPK. Box&Label SP108400297S 6 Center SPK. Box&Label SP108401297S 7 AM Loop Antenna 01582100001S 8 FM Antenna 06410001003S 9 VSX108SPK. Polyfoam M 14901080000S 10 VSX108 Polyfoam L 14901081000S 11 VSX108 Polyfoam R 14901082000S 12 VSX108SPK. Polyfoam T 14901083000S 13 VSX108SPK. Polyfoam B 14901084000S 14 Poly Bag 4´11 15004011210S 15 Poly Bag 10´15 15010015510S 16 Poly Bag 20´26 15020026510S 17 HTP-55 English I.M. 152205500297 18 HTP-55/KU Carton Box 153205500297 19 S-HTP55 SPK. CTN. Box 15340552000S 20 Remote Control Unit 18201080001S 7 PACKING PARTS LIST
Page 2
HTP-55 3 1.2 SUBWOOFER BOX&LABEL Woofer Speaker Panel SPK. Box 1 Screw ScrewPlastic Foot Plastic Foot Mark No. Description Part No. 1 170MM SPK. 6/6 OHM 02917006412S 7 SUBWOOFER BOX&LABEL PARTS LIST
