Pioneer htp 202 sw service manual
This is the 12 pages manual for pioneer htp 202 sw service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer htp 202 sw service manual (Ocr-read)
Page 1

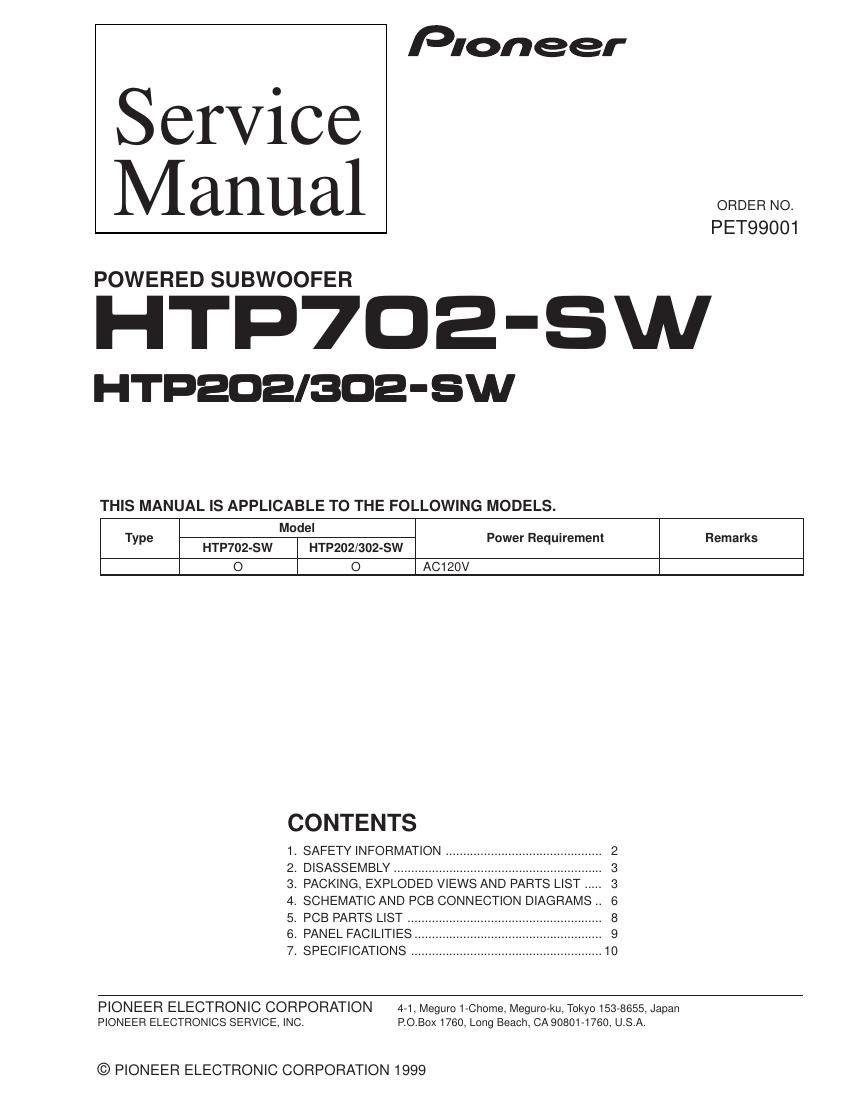

HTP702-SW, HTP202/302-SW 2This service manual is intended for qualified service technicians; it is not meant for the casual do-it- yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly preformed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not a qualified to perform the repair of this product properly and safely, you should not risk trying to do so and refer the repair to a qualified service technician. WARNING Lead in solder used in this product is listed by the California Health and Welfare agency as a known reproductive toxicant which may cause birth defects or other reproductive harm (California Health & Safety Code, Section 25249.5). When servicing or handling circuit boards and other components which contain lead in solder, avoid unprotected skin contact with the solder. Also, when soldering do not inhale any smoke or fumes produced. NOTICE (FOR CANADIAN MODEL ONLY) Fuse symbols (fast operating fuse) and/or (slow operating fuse) on PCB indicate that replacement parts must be of identical designation. REMARQUE (POUR MODéLE CANADIEN SEULEMENT) Les symboles de fusible (fusible de type rapide) et/ou (fusible de type lent) sur CCI indiquent que les pices de remplacement doivent avoir la mme dŽsignation. (FOR USA MODEL ONLY) 1. SAFETY PRECAUTIONS The following check should be performed for the continued protection of the customer and service technician. LEAKAGE CURRENT CHECK Measure leakage current to a know earth ground (water pipe, conduit, etc.) by connecting a leakage current tester such as Simpson Model 229-2 or equivalent between the earth ground and all exposed metal parts of the appliance (input/output terminals, screwheads, metal overlays, control shaft, etc.). Plug the AC line cord of the appliance directly into a 120V AC 60Hz outlet and turn the AC power switch on. Any current measured must no exceed 0.5mA.ANY MEASUREMENT NOT WITHIN THE LIMITS OUTLINED ABOVE ARE INDICATIVE OF A POTENTIAL SHOCK HAZARD AND MUST BE CORRECTED BEFORE RERTURNING THE APPLIANCE TO THE CUSTOMER. 2. PRODUCT SAFETY NOTICE Many electrical and mechanical parts in the appliance have special safety related characteristic. These are often not evident from visual inspection nor the protection afforded by them necessarily can be obtained by using replacement components rated for voltage, wattage, etc. Replacement parts which have these special safety characteristics are identified in this Service Manual. Electrical components having such features are identified by marking with a D on the schematics and on the parts list in this Service Manual. The use of a substitute replacement component which dose not have the same safety characteristics as the PIONEER recommended replacement one, shown in the parts list in this Service Manual, may create sock, fire, or other hazards. Product Safety is continuously under review and new instructions are issued from time to time. For the latest information, always consult the current PIONEER Service Manual. A subscription to, or additional copies of, PIONEER Service Manual may be obtained at a nominal charge from PIONEER. + - Reading should not be above 0.5mA Leakage current tester Device under test Test all exposed metal surfaces Earth ground Also test with plug reversed (Using AC adapter plug as required) AC Leakage Test 1. SAFETY INFORMATION
Page 2
HTP702-SW, HTP202/302-SW 3 l POWER AMP SECTION ¥ Remove the 8 screws from the power amplifier. ¥ Remove the polyswitch assembly. ¥ Remove the connector lead, etc. 3. PACKING, EXPLODED VIEWS AND PARTS LIST NOTES:lParts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List.lThe mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. lParts marked by " " are not always kept in stock. Their delivery time may be longer than usual or they may be unavailable. l PLASTIC FOOT SECTION ¥ Remove each of the 4 screws. l SPEAKER ¥ Remove each of the 4 screws. 3.1 PACKING Parts List Mark No. Description Parts No. 1 Operating Instructions 256055 2 RCA Cable Accessory Pack 255245 3 Corner Pad Assy Bottom (HTP702-SW) 255349 3 Corner Pad Assy Bottom (HTP202/302-SW) 255052 4 Corner Pad Assy Top (HTP702-SW) 256878 4 Corner Pad Assy Top (HTP202/302-SW) 256124 5 Poly Bag (HTP702-SW) 255354 5 Poly Bag (HTP202/302-SW) 255067 6 Packing Case (HTP702-SW) 255334 6 Packing Case (HTP202/302-SW) 255230 5 6 1 4 2 3 2. DISASSEMBLY
