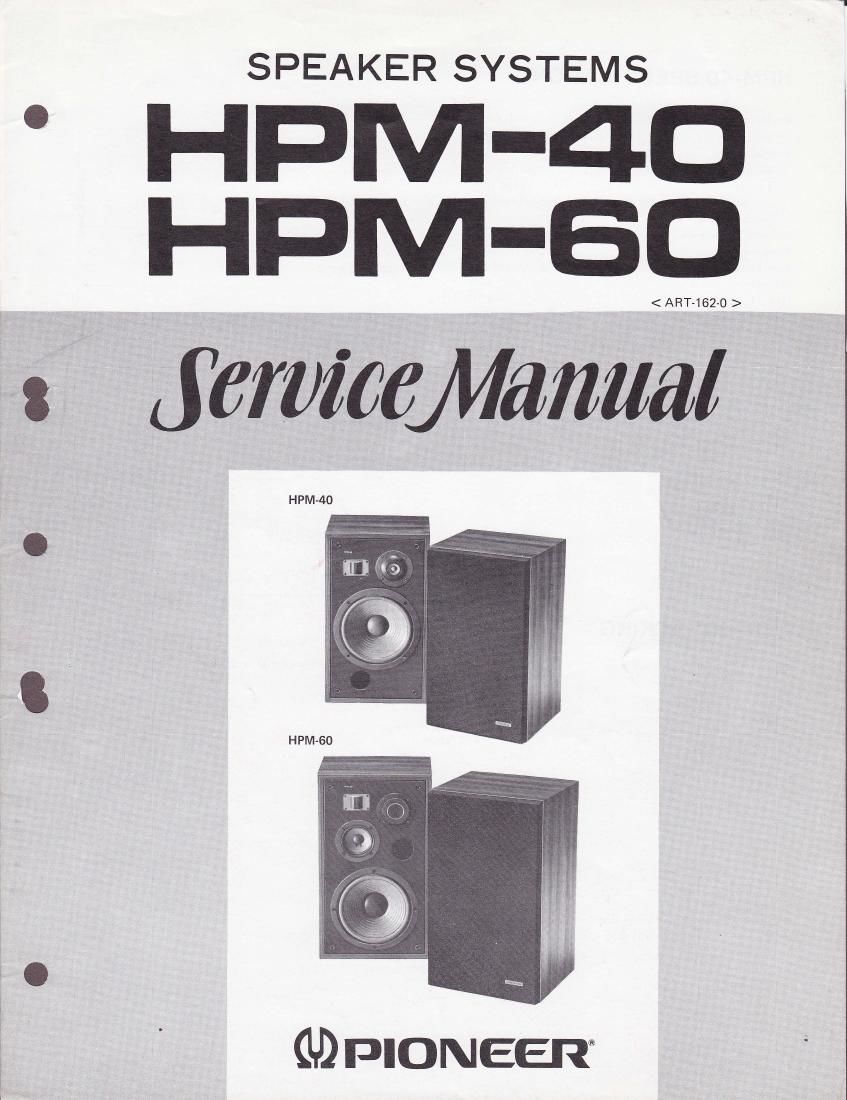

Pioneer hpm 40 service manual
This is the 8 pages manual for pioneer hpm 40 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer hpm 40 service manual (Ocr-read)
Page 2
HPM-4O SPECIFICATIONS
Enclosure . . . . Book~shelf style, Bassreflex type
System . . . .r; .......... 3-speaker, 3-way system
Loudspeakers:
Woofer . . . 25cm (10 in) cone type, carbonfiber cone
Tweeter ........... 4.5cm (1-3/4 in I cone type,
carbonfiber cone
Super Tweeter ............ High-polymer type
Nominal Impedance .................... 89
Frequency Range .............. 35 - 25,000Hz
Sensitivity ............. 91dB/W at 1m distance
Maximum Input Power ................. 40W
Rated Input Power ..................... 20W
Crossover frequency ......... 4,000HZ, 10,000HZ
External Dimensions . . , 325(W) x 570(Hl x 317(Dlmm
12-13/16(Wl x 22-7/16(Hlx12-1/2(D)in
Weight ..................... 13kg/28 lb 10 02
NOTE:
Specifications and the design subject to possible modifi-
cation without notice due to improvements
HPM-40 PACKING
SH L-040
Card Board
SH 0-042
Packing Case
(English) SHG-214
(French/English) SHG-215
LEVEL CONTROL
HO
LEVEL position: +3 0 73
100 [.1
so
SPL IN (15
7o
so
20 so ICC 200 500 IK 2K 5K IOK 20K
FREQUENCY IN Hz
IMPEDANCE
Q
IMPEDANCE IN
is m 6 GE 686
20 50 100 zoo 500 1K 2K 5K IOK 20K
FREQUENCY IN Hz
HARMONIC DISTORTION
FREQUENCY RESPONSE
HO
9)" 30° 60°
IOO
so
so
70
so 2nd harmonics
SPL IN d5
so 3rd harmonics
4o
3o
20 so too 200 500 lK 2K 5K 10K 20K
FREQUENCY IN HZ
Service Cord SDD-162 (Except U model)
Vinyl Bag SHL»O33
Corner Angle
SHA»101
