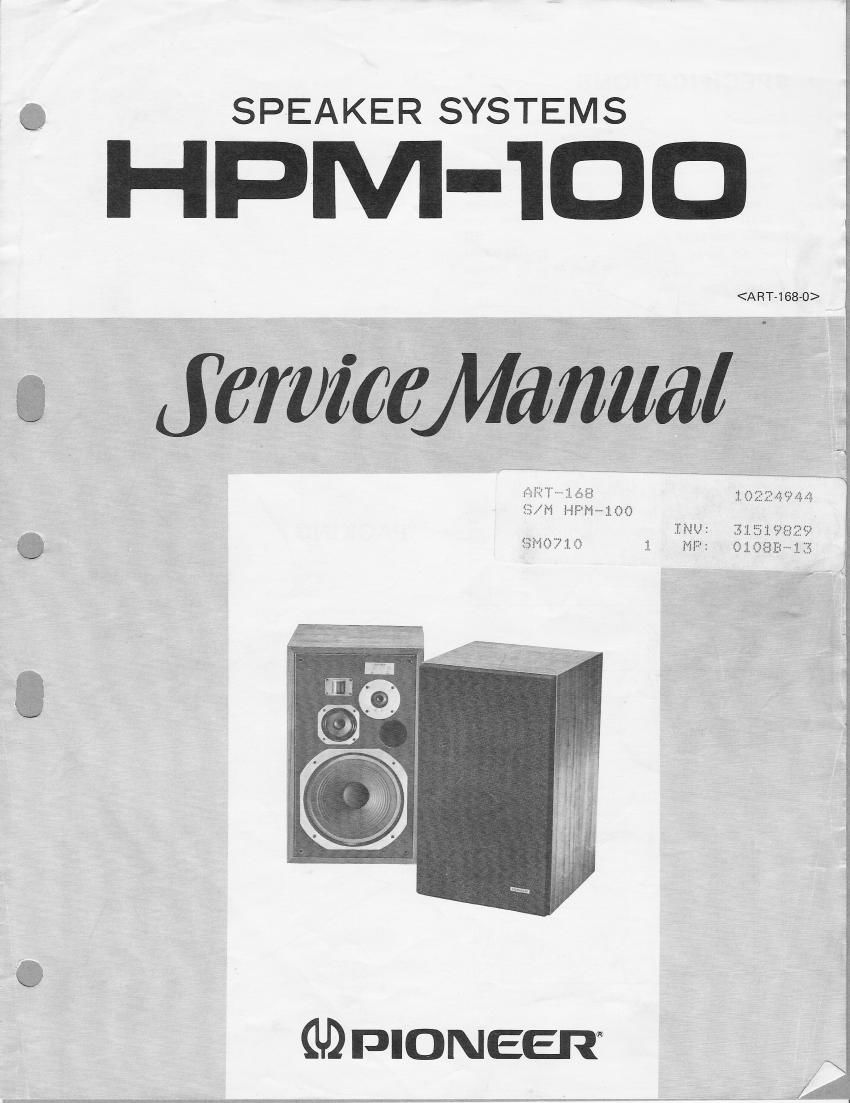

Pioneer hpm 100 service manual
This is the 4 pages manual for pioneer hpm 100 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer hpm 100 service manual (Ocr-read)
Page 2
SPECIFICATIONS
Enclosure ........ Book-shelf style, Bass-reflex type
System ............... 4-speaker, 4-way system
Loudspeakers:
Woofer . . .300m (12 in) cone type, carbonfiber cone
Mid-range ............. 10cm (4 in) cone type
Tweeter ........... 4.5cm (1-3/4 in) cone type
Super tweeter ............ High-polymer type
Nominal Impedance .................... 89
Frequency Range .............. 30 - 25,000Hz
Sensitivity ............ 92.5 dB/W at 1m distance
Maximum Input Power ................. 100W
Rated Input Power .................... 50W
Crossover Frequency . . . 3,000Hz, 4,000HZ, 12,000Hz
External Dimensions . . . 390(W)X670(H)x393(Dlmm
15-3/8IW) X 26-6/16(H)x15-15/32(Dlin
Weight .................... 26.7kg/58 lb 12 02
NOTE.-
Specifications and design subject to possible modification
without notice, due to improvements.
FREQUENCY RESPONSE
Ho
I00
90
so
SFLIN dB
70
so
20 50 I00 zoo 500 IK 2K 5k IOK 20K
FREQUENCY IN Hz
IMPEDANCE
G40
gso
20
015
20
IMPEDA
2. m m
\
so IOO zoo 500 IK 2K 5K 10K zox
FREQUENCY IN Hz
m
o
HARMONIC DISTORTION
HO
loo
so;
90*
70
eo
0 I". /\
SPI. IN dB
3o
H,
- 4
A v
2nd HARMONIC
zo
20 50 too zoo soo IK 2K 5K \0K 20K
FREQUENCY IN Hz
PACKING
Service cord
(Except U model) SDD-162
Vinyl bag
7 Corner angle
SHA-102
(English)
SHG-228 .
Packing case (French/English)
SHG229
Packing case
