Pioneer hdj 1000 service manual

This is the 3 pages manual for pioneer hdj 1000 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 3

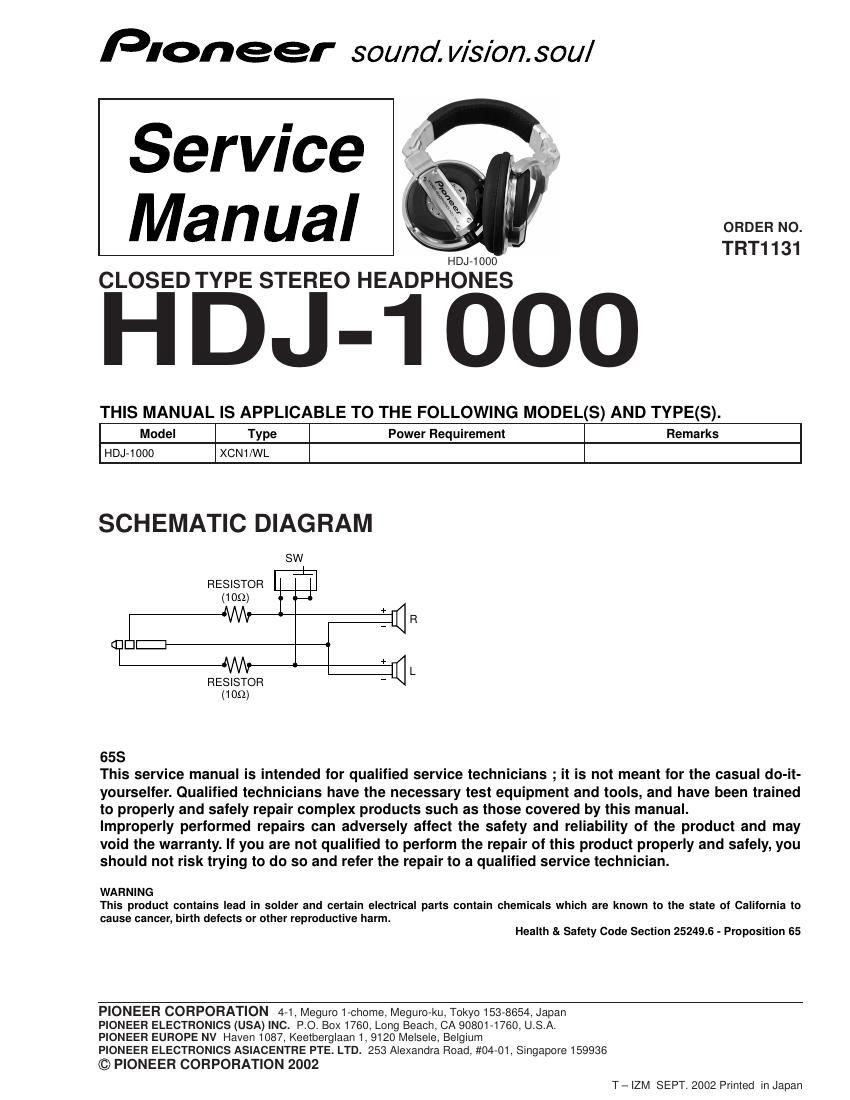

pioneer hdj 1000 service manual

Extracted text from pioneer hdj 1000 service manual (Ocr-read)


Page 1

2 HDJ-1000 1234 C D F A B E 1 23 4 EXPLODED VIEWS AND PARTS LIST NOTES : Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The > mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Screws adjacent to ° mark on the product are used for disassembly. For the applying amount of lubricants or glue, follow the instructions in this manual. (In the case of no amount instructions, apply as you think it appropriate.) Exploded Views Packing 8 4 3 1 2 7 65 13 47 40 3523 35 36 47 47 41 4136 30 28 27 33 48 34 48 34 33 2642 39 48 32 6 1147 29 18 9 20 44 43 452122 17 12 1814 1419 1110 8 20 25 42 39 31 48 29 21 7 16 15 234 1 Vynil Strap Product 45 44 43

Page 2

3 HDJ-1000 5 678 5 67 8 C D F A B E · EXPLODED VIEWS PARTS LIST 1 Speaker Unit Assy L WXX1332 2 Speaker Unit Assy R WXX1333 3 SW Board Assy WXX1334 4 Jack Board Assy WXX1335 5 ¥ ¥ ¥ ¥ ¥ 6 Plug Adapter WKX1035 7 Bracket WNA1118 8 Case WNK2137 9 Case WNK2138 10 Pad WNK2155 11 Pad WNK2156 12 Knob WNK2157 13 Ear Pad WNV1101 NSP 14 Cord WDC1064 15 Cord Assy WDE1197 16 Screw PMZ20P060FZK 17 Plate Spring WBK1012 18 Spring WBX1002 19 Screw PPK25P040FZK 20 Screw PPZ18P060FNI 21 Screw PPZ20P060FZK 22 Screw PPZ25P060FZK 23 Band Slider Assy WXX1331 24 ¥ ¥ ¥ ¥ ¥ 25 Hunger WNK2141 Mark No. Description Part No. Mark No. Description Part No. 26 Hunger WNK2142 NSP 27 Slider WNK2143 NSP 28 Slider WNK2144 29 Cover WNK2145 NSP 30 Cover WNK2146 31 Housing WNK2147 32 Housing WNK2148 33 Holder WNK2149 34 Holder WNK2150 NSP 35 CoverWNK2151 NSP 36 Cover WNK2152 37 ¥ ¥ ¥ ¥ ¥ 38 ¥ ¥ ¥ ¥ ¥ 39 Plate WNK2159 NSP 40 Cushion WNV1102 NSP 41 Cord WDC1063 42 Spring WBH1027 NSP 43 Speaker WWW1043 NSP 44 Cushion WER1092 NSP 45 Sound Absorber WER1091 46 ¥ ¥ ¥ ¥ ¥ 47 Screw PPZ20P050FNI 48 Screw PPZ20P130FNI · PACKING PARTS LIST 1 Carrying Pouch WMA1111 2 Operating Instructions WRB1048 (German / Italian / Spanish / Dutch / Chinese) 3 Inner Case WHF1085 4 Outer Case WHG1768 5 Decoration Paper WHG1769 6 Decoration Paper WHG1773 7 Mount Paper WHG1774 8 Master Carton WHP1478 Mark No. Description Part No.
