Pioneer H R99 Service Manual
This is the 22 pages manual for Pioneer H R99 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Pioneer H R99 Service Manual (Ocr-read)

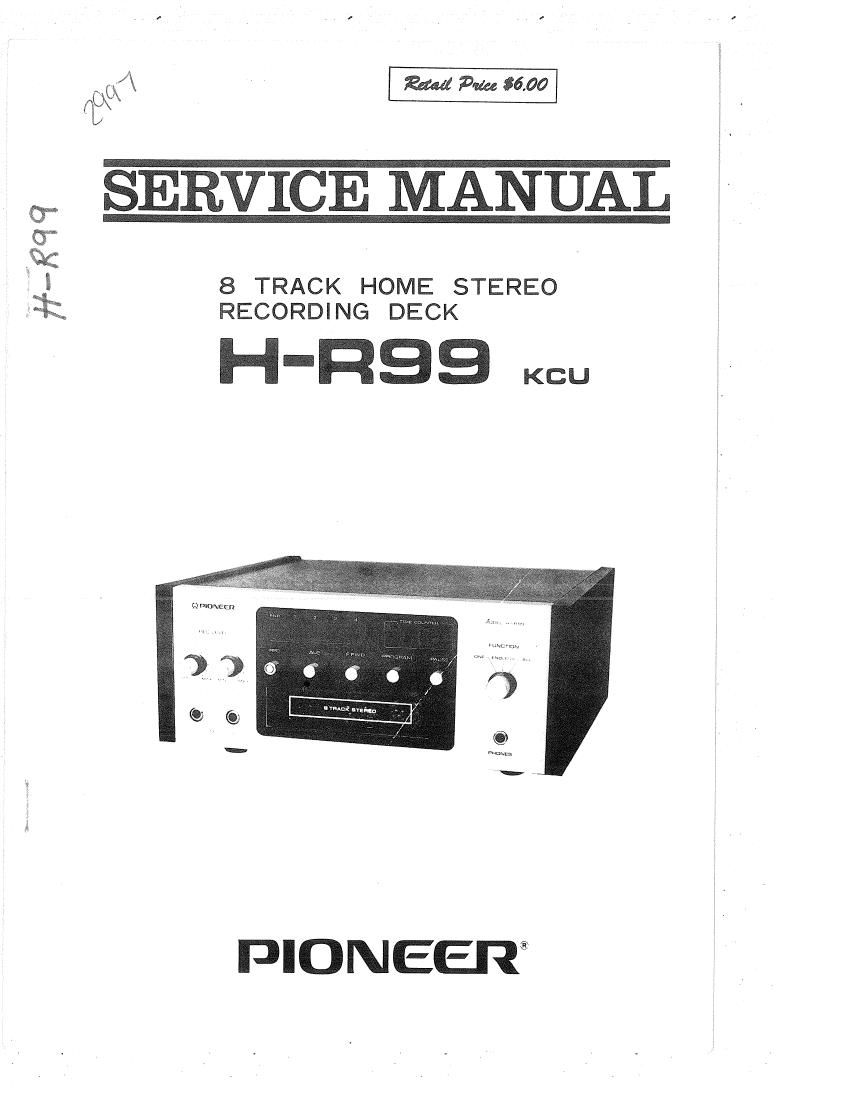

Page 1
/\ W Pm 86,00
(C/"\U
' L
SERVICE MANUAL
8 TRACK HOME STEREO
RECORDING DECK
H-RQQ KCU
#4263649
PIONEEIT
Page 2
m-thd
CONTENTS
. SPECIFICATIONS .............................................. 1
. PARTS LOCATION ............................................. 2
. CIRCUIT DESCRIPTION ......................................... 3
. DISASSEMBLY ................................................ 3
. ADJUSTMENT
5.1 Head Adjustment ........................................... 4
5.2 Recording Bias Adjustment . . 5
5.3 Bias Trap Adjustment ......................................... 5
. CIRCUIT DIAGRAM SECTION
6.1 Miscellaneous ...... ' ........................................ 6
6.2 Schematic Circuit Diagram ..................................... 7
6.3 R/P Amplifier Unit .......................................... 9
6.4 Power Supply Unit .......................................... 14
6.5 Lamp Unit ................................................ 16
. EXPLODED VIEW
7.1 Cabinet .................................................. 17
7.2 Chassis ................ 19
. PACKING METHOD ............................................ 23
