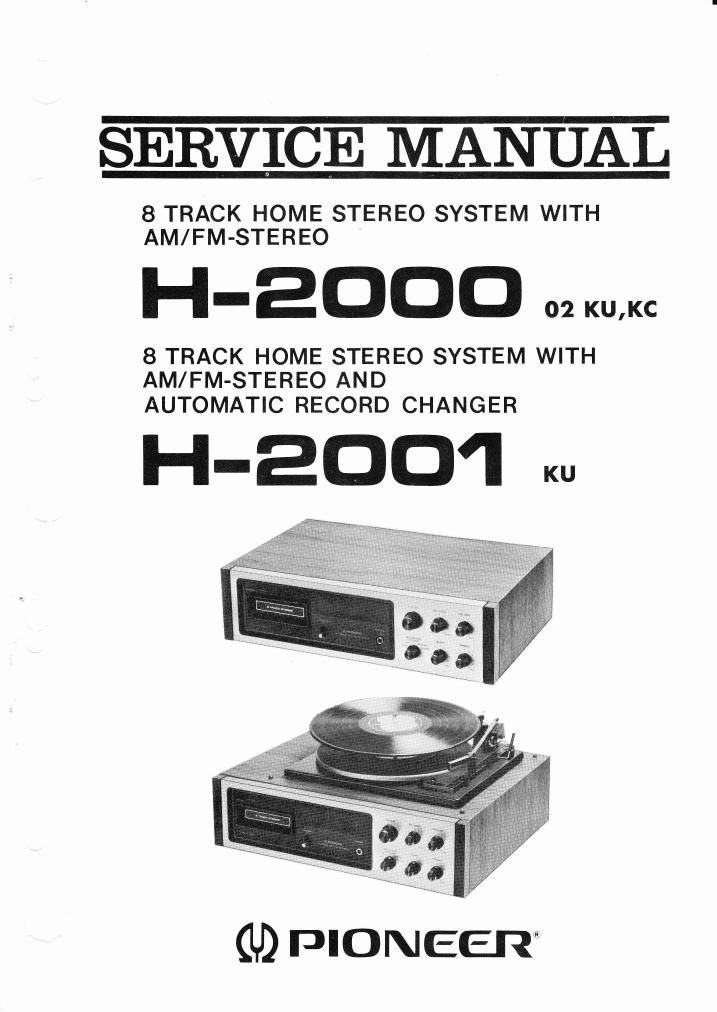

Pioneer h 2000 h 2001 service manual
This is the 42 pages manual for pioneer h 2000 h 2001 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer h 2000 h 2001 service manual (Ocr-read)
Page 1
CONTENTS 1. SPECIF|CAT|ONS 2 2. PARTS LOCATION 2.'l H-2000 3 2.2 H-2001 4 3. CIRCUITDESCR|PT|ON.... 5-6 4. DISASSEMBLY.. 7 5. ADJUSTMENT 5.1 FM lF Adjustment . . 5.2 FM Tracking Adjustment 5.3 MPX Separation Adjustment . . . . 5.4 AM Tracking Adjustment 5.5 Tape Mechanism Adjustment . . . 12- DIAL STRINGING CI RCUIT DIAGRAM SECTION 7.1 H-2000 Schematic Circuit Diagram .... . 14- 15 7.2 H-2001 SchematicCircuitDiagram ..... 18- 19 7.3 TunerUnit(CWE-083-A) ....17,20-22 7.4 Equalizer Unit (CWK-079-0) . . . . 23- 24 7.5 Volume Control Unit (CWK-080-0) . .. . . 25- 26 7.6 Tone Control Unit (CWK-081-0) . 27 - 28 7.7 Amplifier Unit (CWK-082-A). . . . 29 - 31 7"8 PowerSupplyUnit (CWR-044-O1 .. .....32-33 7.9 Miscellaneous 8. EXPLODED VIEW 8.1 Cabinet 8.2 Chassis ..37-39 8.3 Mechanism .....40-42 9. PACKING METHOD 9.1 H-2000 9.2 H-2001 8 I 10 11 13 13 6. 7. 34 35-36 43 44
Page 2
H-2000H 2001 1 . SPECIFICATIONS SEM I CONDUCTORS 1 FET, 18 Transistors, 16 Diodes POWER SUPPLY SECTION POWER SOURCE AC 12OV,5OI6OHZ POWER CONSUMPTION Less than 60W (70W H 2001) AUXILIARY OUTLET 150 Watts Unswitched (H 2000 Onty) AMPLIFIER SECTION OUTPUT POWER 8W (TJl.D.5%,8s)) PHONO INPUT 150mV, 1MS) FREOUENCY RESPONSE 20 - 15,000H2 (lVlain Amplif ier lnput) SIGNAL TO NOISE RATIO . . . . . More than 45dB OUTPUT IMPEDANCE 8A TAPE SECTION CARTR IDGE Any 8-Track Cartridge TAPE SPEED 9.Scm/sec (3-3/4inlsec) WOW AND FLUTTER Less than 0.25% (WRMS) CROSSTALK More than 40dB SIGNAL TO NOISE RATIO . . . . . More than 40dB FM AND MPX SECTION FREOUENCY RANGE 88.0 - 108MHz SENSITIVITY.... 10pV(lHF) IMAGE REJECTION More than 38dB SIGNAL TO NOISE RATIO More than 45dB CHANNE L SEPARATION . . More than 24dB (at i kHz) ANTENNA IIV]PEDANCE 3OOQ AM SECTION FREOUENCY RANGE 525 - 1,6O5KHZ SENSITIVITY .... 10pV (tHF) IMAGE REJECTION More than 45dB SIGNAL TO NOISE RATIO More than 40dB ANTENNA Built-ln Ferrite Bar Antenna DIMENSIONS (WX H X D) H 2000 475x120x298mm (1811116x423132x1123132in1 H2-OO1 476x236x381mm (18314 x9-3/8x 15in) WEIGHT H-2000 5.7ks (12.6tbs), H 200i 9.0 kg (21.1tbs) RECORD PLAYER SECTION (H-2001 Only) MODEL BSR C141R-1 Automatic Record Changer RECORD SIZE . 7, 10, 12iN SPEED 33,45, 78rpm RECORD HOLDING CAPACITY .. Up to 8 Same Size Records WOW AND FLUTTER Less than 0.2% CARTR IDGE Ceramic Stereo Cartridge, Sapphire/Diamond Stylus SPEAKER SECTION SPEAKER H 2000 j6cml6-1l2lx2 H-2001 Woofer 20cm (8in), Tweeter 7.7cm (3in)Two Way x 2 IIV]PEDANCE 8f,2 DIMENSIoNS (wx H x D) ....... H-2000 3o4x444x 190mm (12x17-112x7-1l2in\x2 H 2001 343x 546x 263mm (13112x21 1l2x 10-11 l32in\x2 H 2000 4.8ks (10.61bs) x 2, H-2001 8.2kq (18.1 tbs) x 2 WEIGHT
