Pioneer gx 470 service manual
This is the 56 pages manual for pioneer gx 470 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer gx 470 service manual (Ocr-read)
Page 2
)>
For details, refer to "Important symbols for good services".

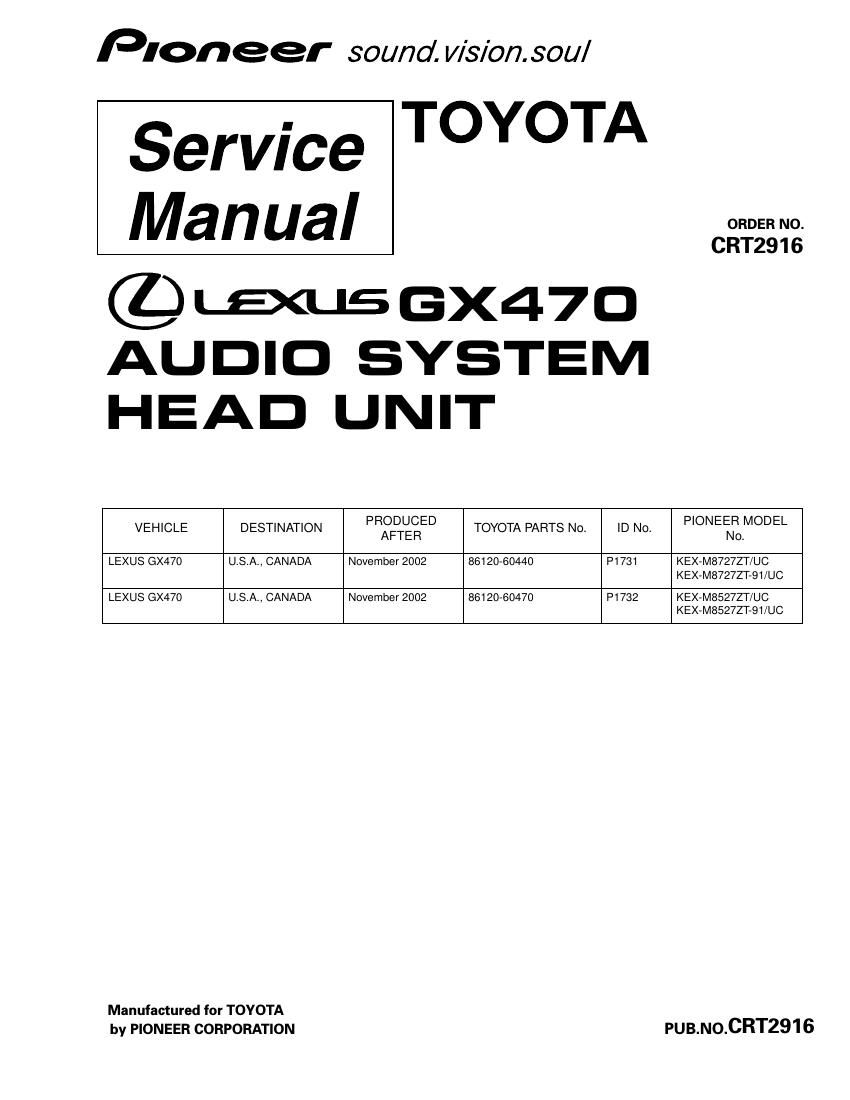

KEX-M8727ZT/UC (P1731)
KEX»M8527ZT/UC (P1732)
ma mm -""m" .- me
e... ... m m.
Dolby noise reduction manufactured under license from Dolby Laboratories Licensing Corporation.
"Dolby" and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation.
This service manual does not describe the CD test mode. For the operations in the CD test mode,
refer to the CD player's Service Manual.
This service manual should be used together with the following manual(s):
Model No.
Order No.
Mech.Module
Remarks
CX-1011 CRT2406
3L Cassette Mech. module: MechDescription, Disassembly
. Supplementary model is identical to the original except for the addition of following items.
Description Part No.
KEX-M8727ZT-91/UC KEX-M8527ZT-91/UC
Polyethylene Bag CEG1174 CEG1174
Carton CHG4857 CHG4857
Contain Box CHL4857 CHL4857
* Air Cap CHW1947 CHW1947
Cover CEG1045(x2) CEG1045(X2)
